30-100mm1.8m 2m stair treads deck Steel Grating

Product Description:Steel Grating Size: 1m*6m standard type (special size and American standard size are also customizable)Material: Low carbon steel (Q235)Surface Treatment: Hot dip galvanizing

Inquire Now

None

Detail Description

Product Description:Steel Grating Size: 1m*6m standard type (special size and American standard size are also customizable)Material: Low carbon steel (Q235)Surface Treatment: Hot dip galvanizing, paint or no coatingSurface Shape: Planform, tooth shape and I shapeQuality Standard:Steel Grating Standard: China YB/T4001-1998America ANSI/NAAMM (MBG531-88)Britain BS4592-1987Australia AS1657-1992Steel Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)Hot Dip Galvanizing Standard: China GB/T13912-92 / ASTM (A123) / BS729Key words : Standard grating

Steel Grating Common Size Table List:

Cross RodPitch	load BarPitch	Welded Steel Grating load Bar Specification(Width×Thickness)
Cross RodPitch	load BarPitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
Cross RodPitch	load BarPitch	Welded Steel Grating load Bar Specification(Width×Thickness)
Cross RodPitch	load BarPitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50

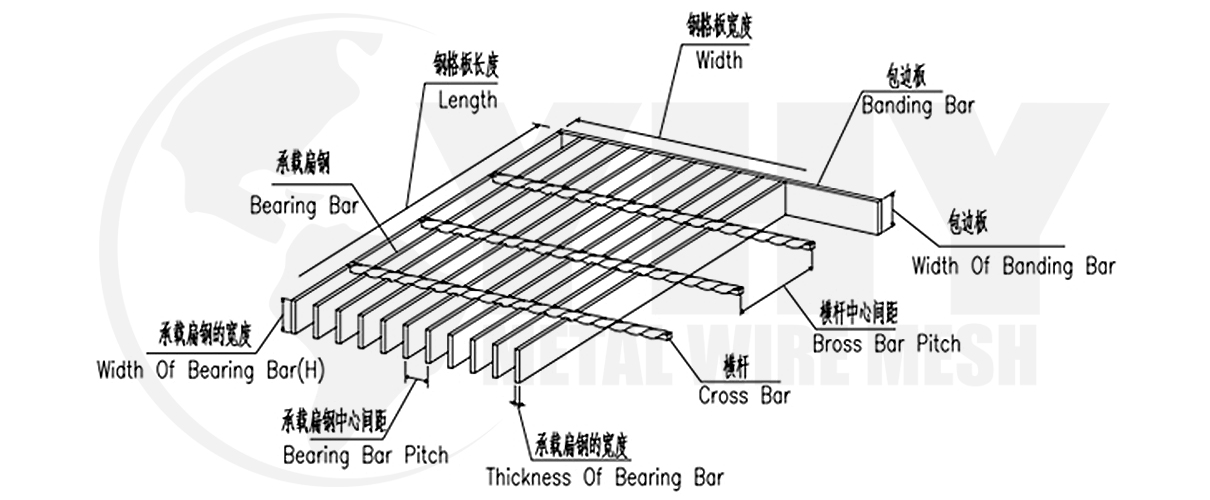

Knowledge

30-100mm1.8m 2m stair treads deck Steel Grating

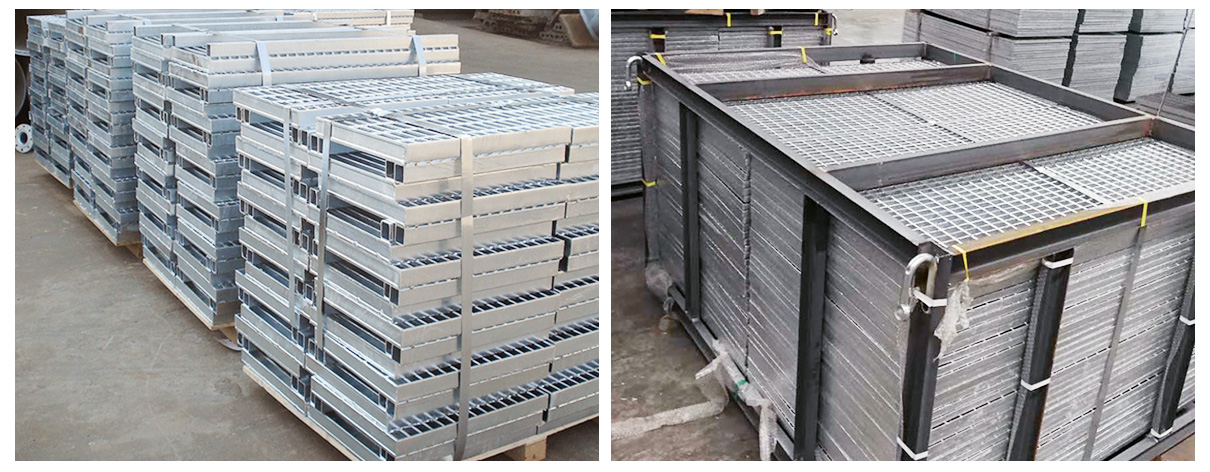

Packaging

According to customer requirements, provide different packaging.

1. Standard Packing---Bulk. The premise of not punching pallets saves space, packaging costs, and freight.

2. Customized packaging---Pallet. The cost is high, but the loading and unloading are convenient, saving labor costs.

3. Custom labels.

Warehousing: Our factory has a large warehouse, which is clean and dry. Can provide short-term storage mesh services.

30-100mm1.8m 2m stair treads deck Steel Grating

Application

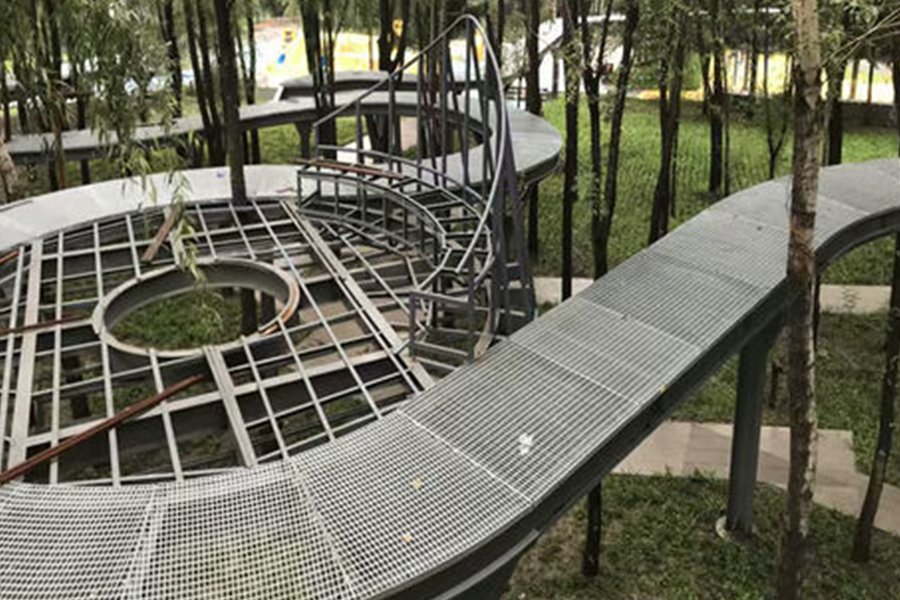

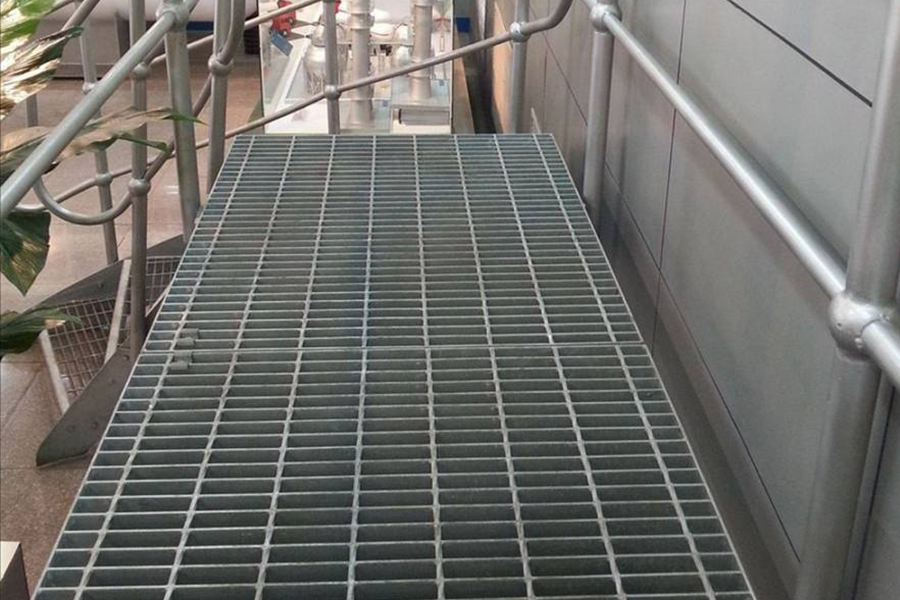

galvanized-bar-steel-grating walkway

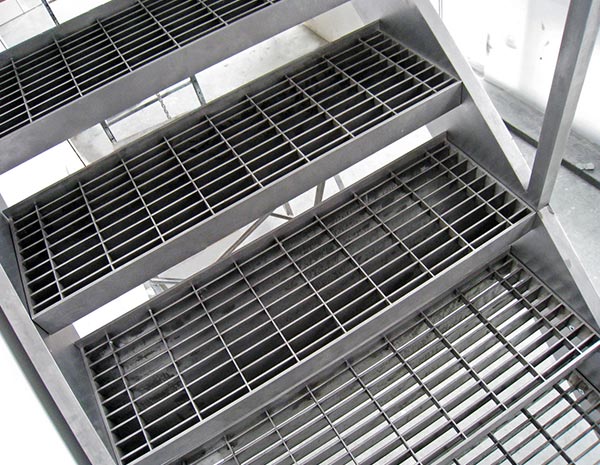

steel grating stairway
