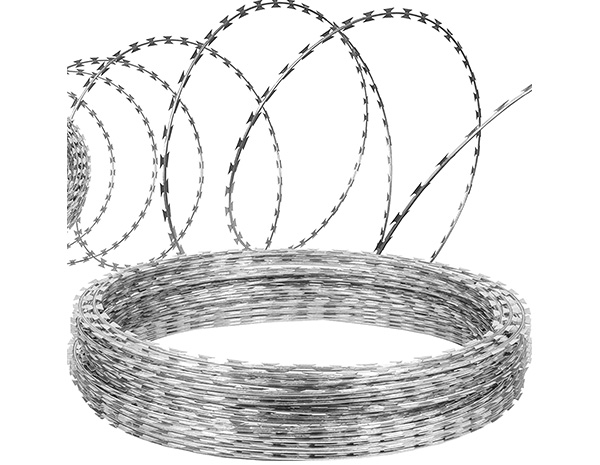

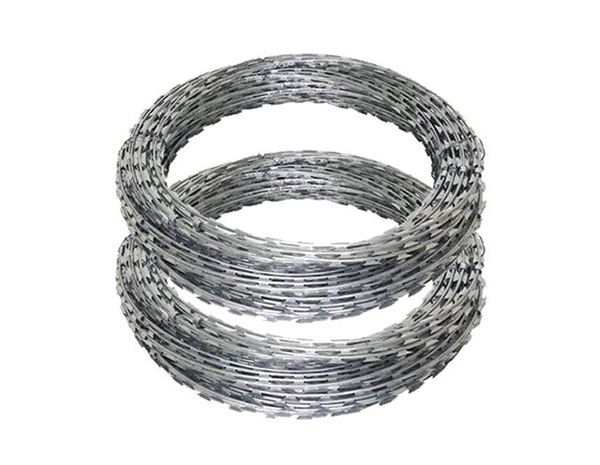

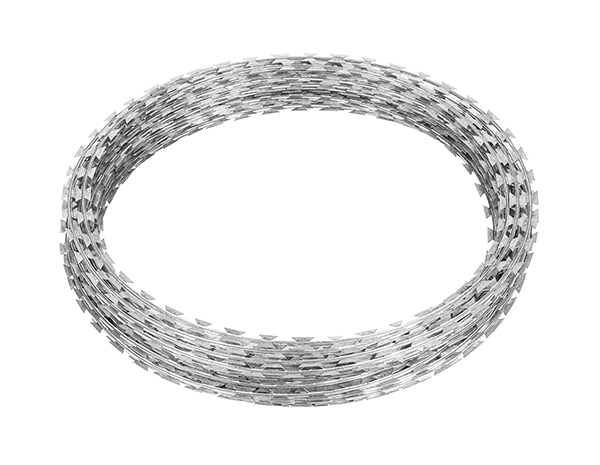

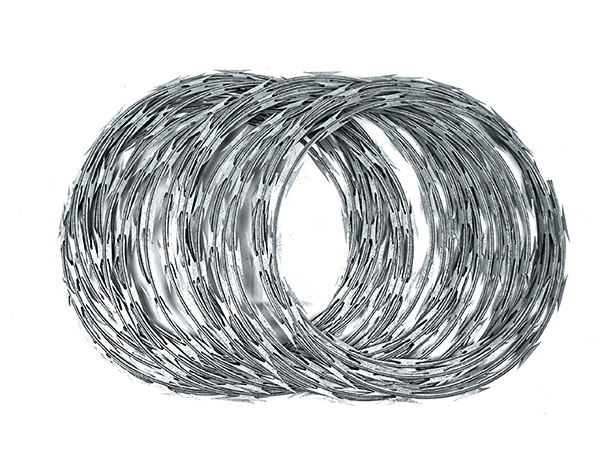

Razor barbed wire is a kind of modern security fencing materials fabricated with a razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders.

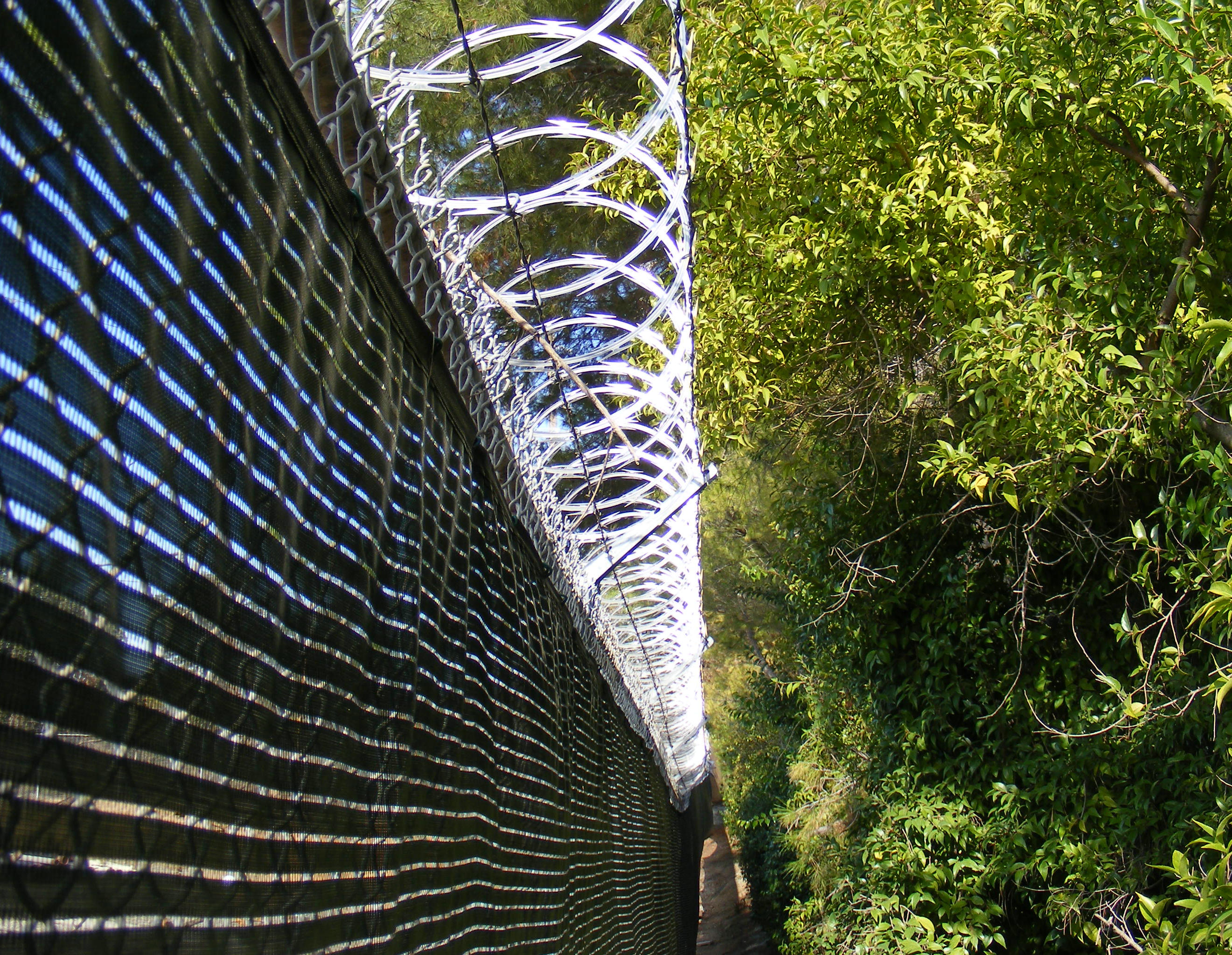

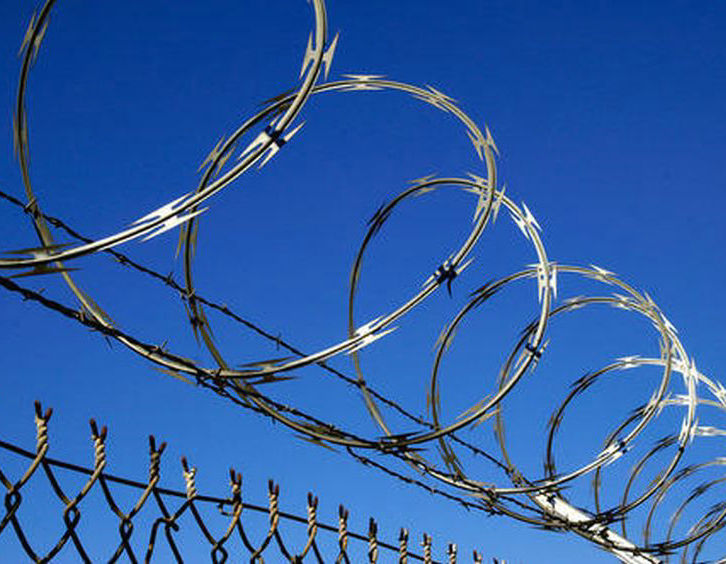

Razor barbed wire is a kind of modern security fencing materials fabricated with a razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed, achieve frightening and stopping to the aggressive perimeter intruders the result of, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Coil Diameter | 450mm-980mm |
No. of Loops | 33-56 |
Standard Length Per Coil | 7m-16m |
Type | Singe or Cross |
Texture of Material | Hot Dipped Galvanized |
Thickness | 0.5-0.6mm |
Wire Dia | 2.5mm |
Barb Width | 13mm-21mm |
Barb Spacing | 26mm-100mm |
Clips Per Spiral | 3 to 5 |

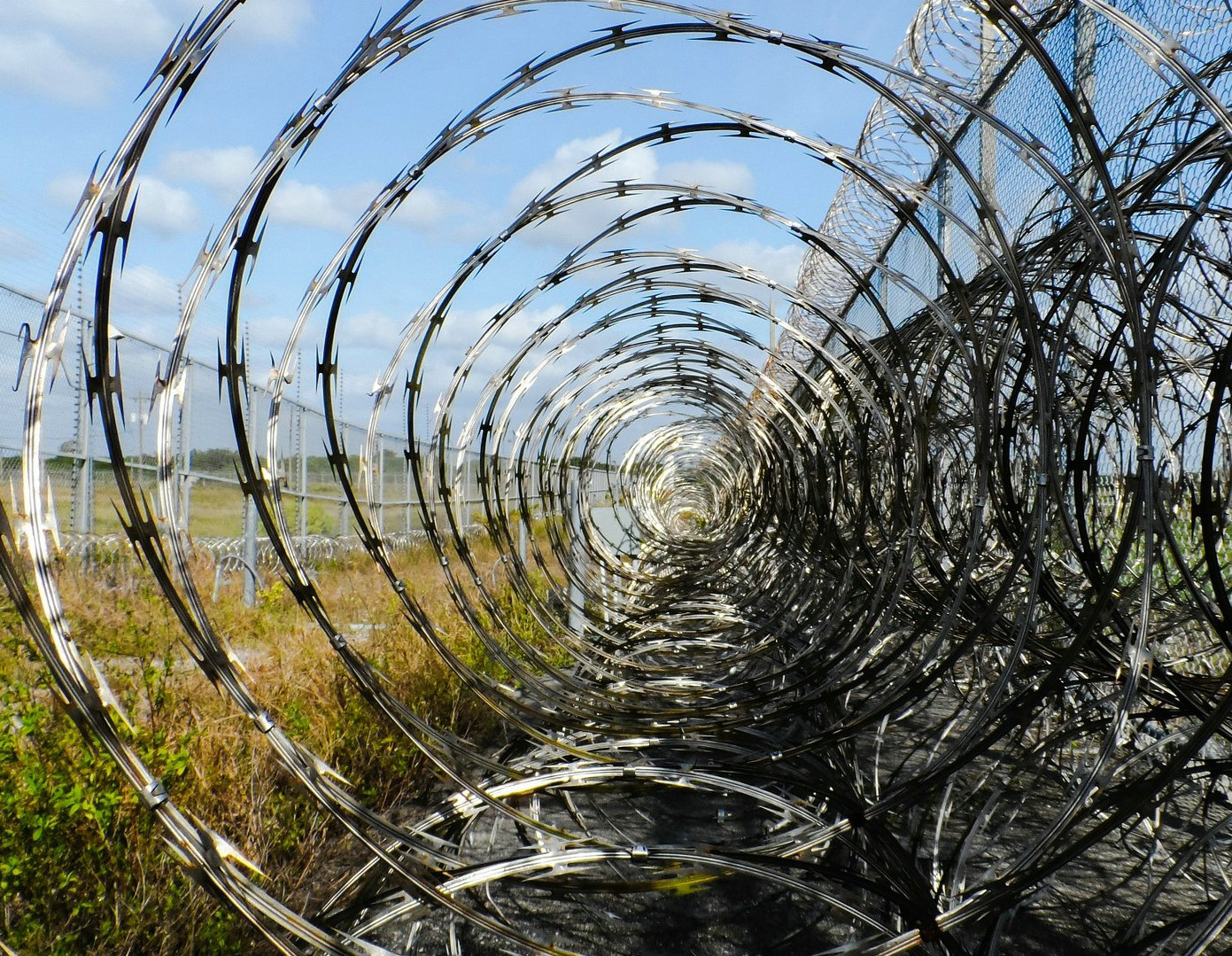

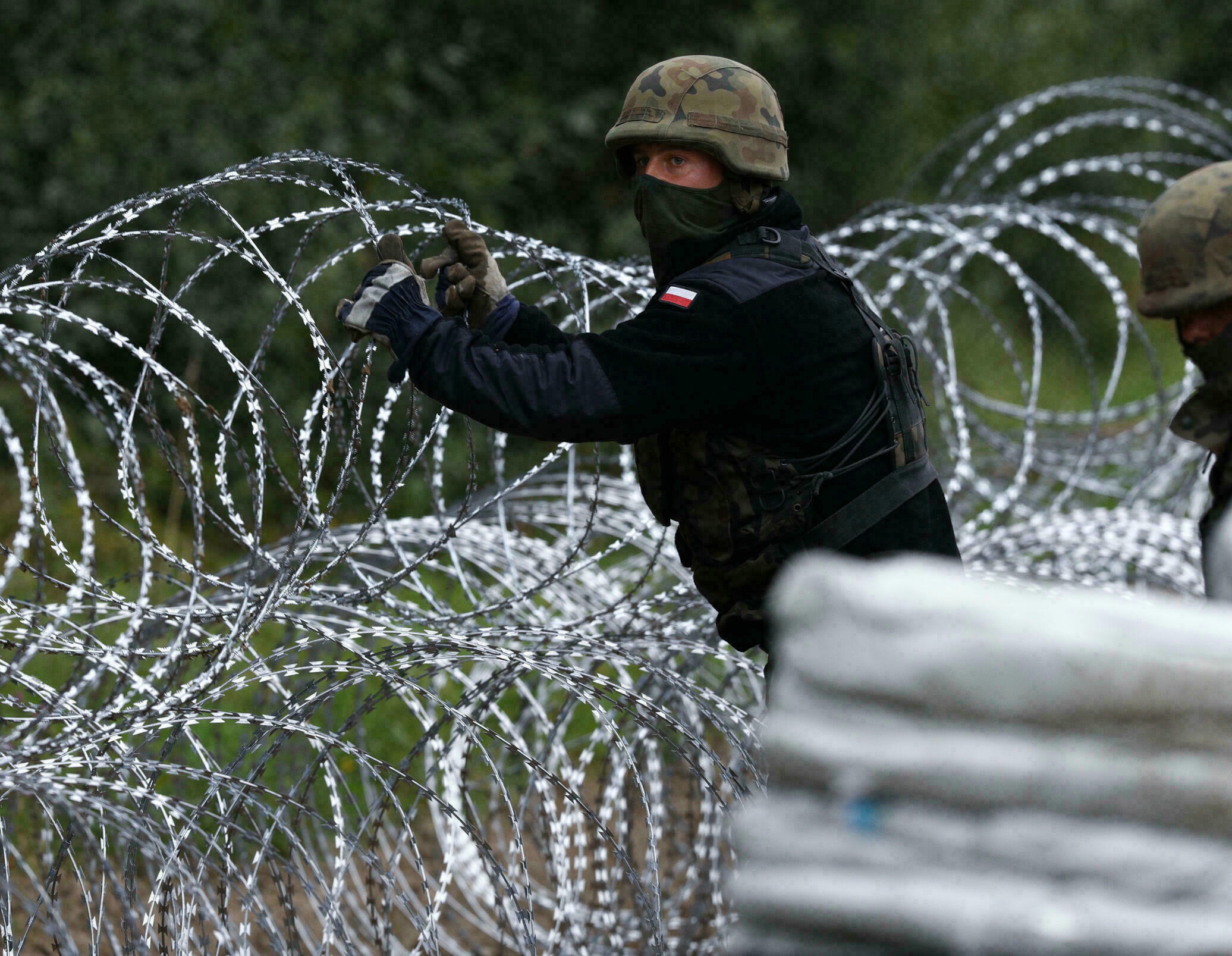

Currently, barbed tape has been widely used by many countries in the military field, prisons, detention houses, government buildings, and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13M | CBT-60.65 | Single coil |
700mm | 56 | 13-14M | CBT-60.65 | Single coil |
960mm | 56 | 14-15M | CBT-60.65 | Single coil |
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross-type |
Notes: Standard products are shown in the tables above, special specifications available on request. Standard materials are either galvanized or stainless steel. |
