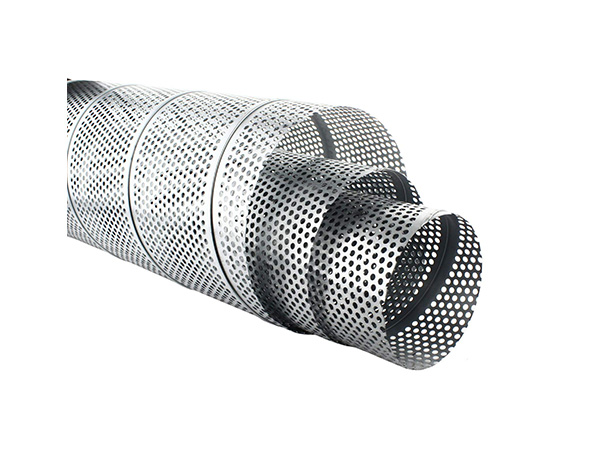

Spiral Perforated Pipe

Spiral perforated pipe with high strength and continuous length is popular for fluid filtration.

Share:
Detail Description

Spiral perforated pipe with high strength and continuous length is popular for fluid filtration.

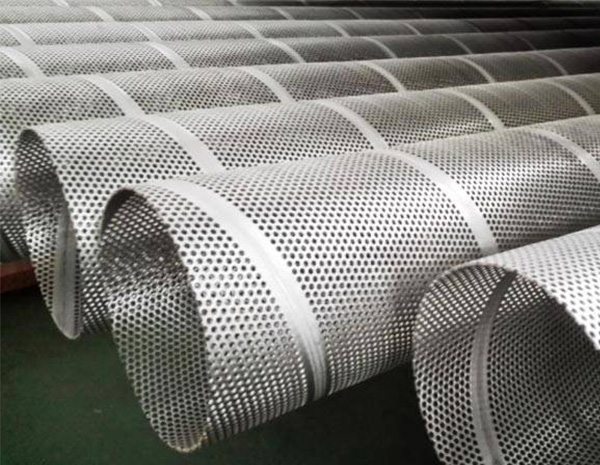

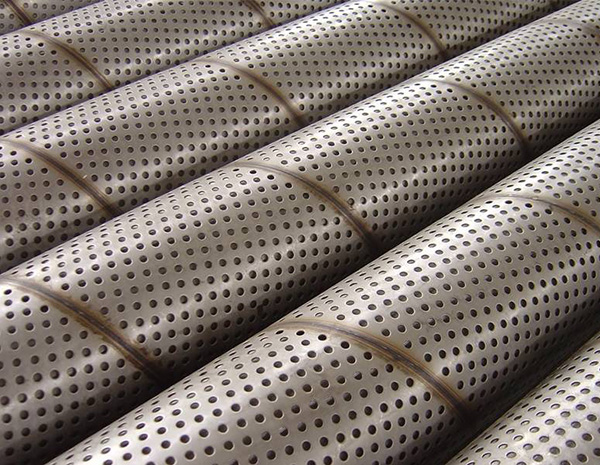

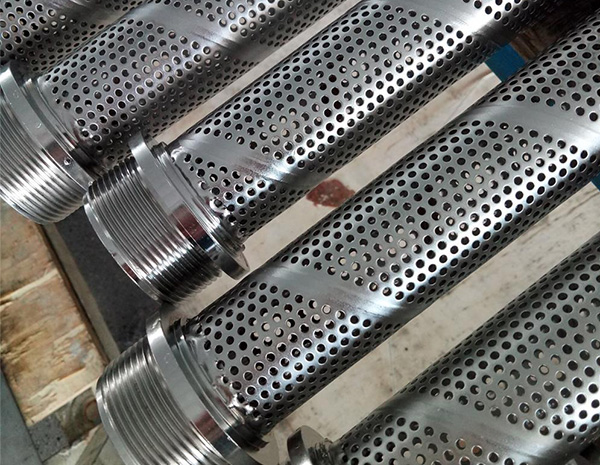

Spiral perforated pipe with continuous length, also called spiral pipe or spiral tube, can be divided into spiral welded pipe and spiral lock seam pipe. Spiral welded pipe is produced by grinding, plating, sand blasting, deburring and buffing, which features the high precision technology, and spiral lock seam pipe is formed by folding the overlapping edges against each other, which features the inside lock seam, outside flush surface and popular for fluid filtration.


Feature:


Knowledge

Material

Mild carbon steel, stainless steel, aluminum steel.

Outside diameter

1" to 12".

Hole diameter

0.06" to 0.375".

Hole shape

Round, square, slot.

Hole distribution

Straight line, staggered.

Open area

Up to 65%.

Thickness

0.024" to 0.165".

Length

Up to 60".

Type

Spiral welded pipe, spiral lock seam pipe.

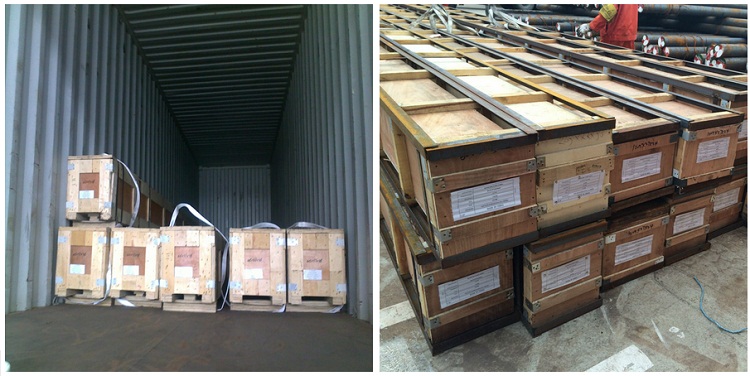

Packaging

Spiral Perforated Pipe

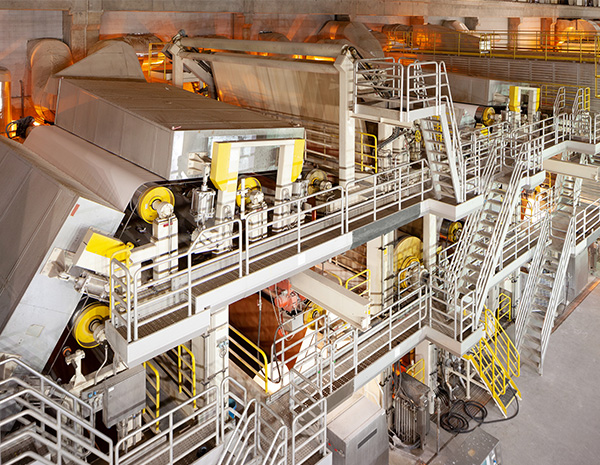

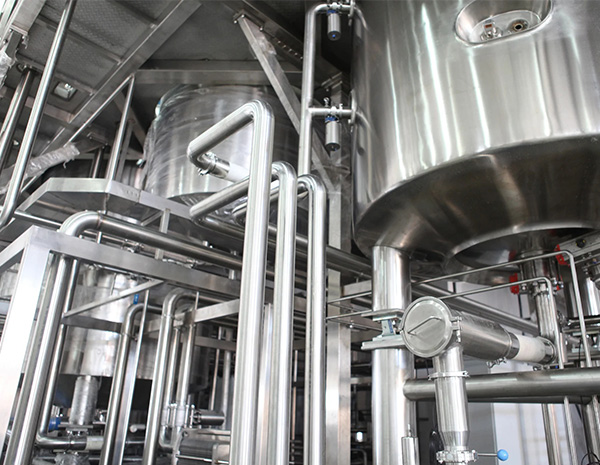

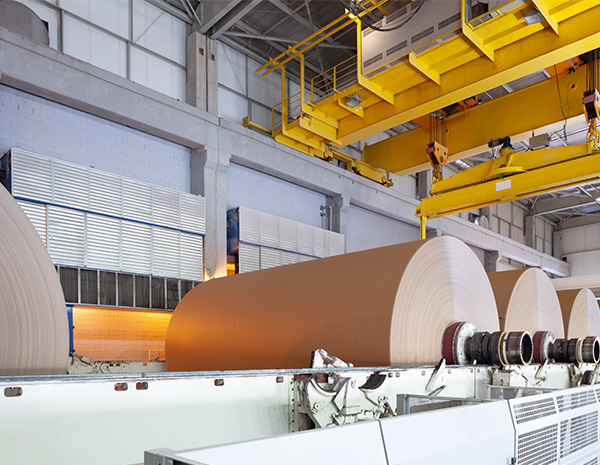

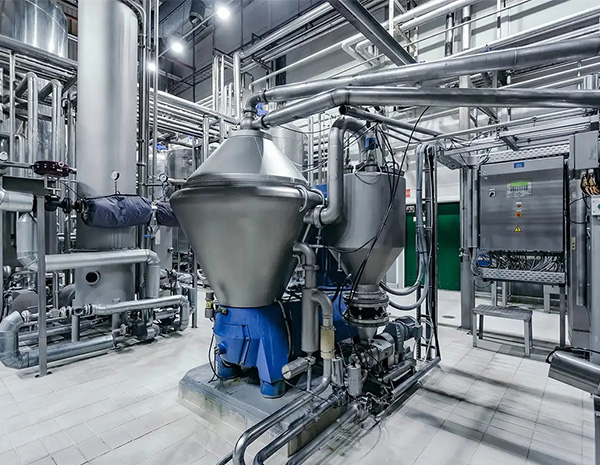

Application
