Chain Link conveyor belt for food transfer

There are three types of chain link conveyor belt in YHY: standard, reinforced and double reinforced.

Inquire Now Next Product

There are three types of chain link conveyor belt in YHY: standard, reinforced and double reinforced.

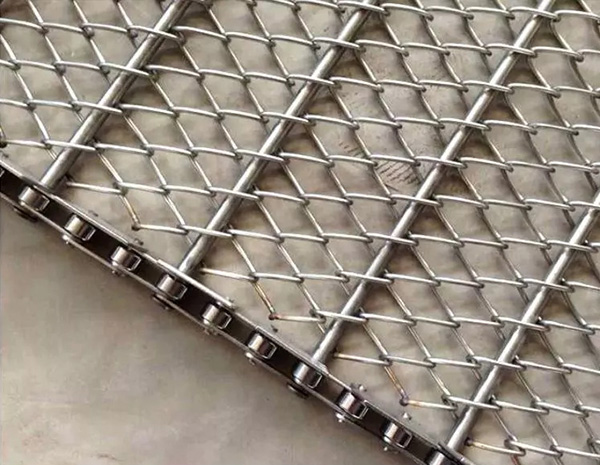

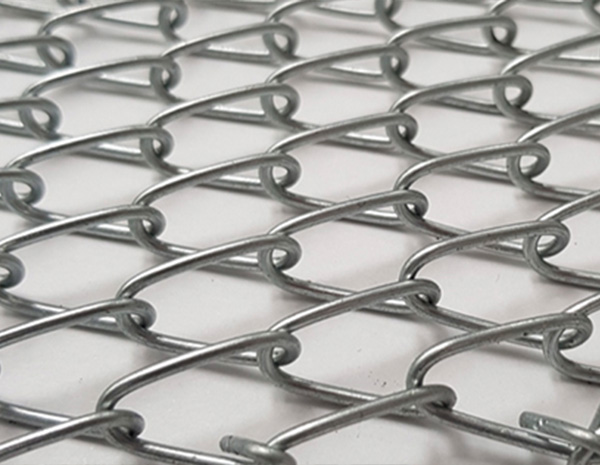

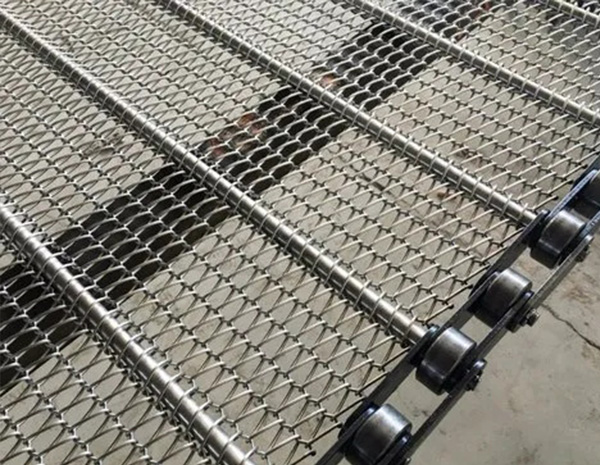

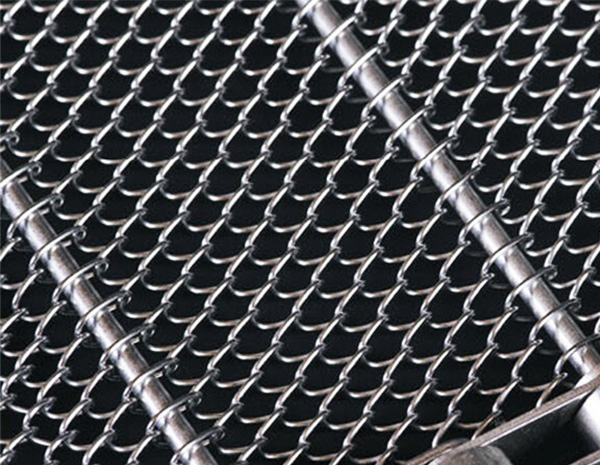

Standard chain link conveyor belt is ideal for drying, cooling and heating because it has a large area of opening area that keeps air flowing. And it also increases delivery efficiency and reduces downtime during use. Reinforced chain link conveyor belt is stronger than the standard. The reinforced rod not only increases the strength of the belt, but also keeps the belt steady during transport. Certainly, double reinforced chain link conveyor belt with a smaller opening area and greater strength.

Features：

Simple structure, only made of several spiral coils.
Large opening area with good air circulation, ideal for drying and cooling.
Welded or knuckled edge for your choice.
Side and center baffles can be added to the conveyor belt to prevent the products from falling down to the ground.
Economical. The simple structure makes it economical than other types of conveyor belt.

Knowledge

Material：Low carbon steel, stainless steel.

Chain link belt type：Standard, reinforced, double reinforced.

Edge type：Welded edge, knuckled edge.

Table 1: Specification of Standard Chain Link Conveyor Belt
Item	Wire Diameter (mm)	Spiral Coil Quantity	Belt Thickness (mm)
SCLB-01	2.8	84	10 ± 0.5
SCLB-02	2.2	100	8 ± 0.4
SCLB-03	1.6	69	7 ± 0.4
SCLB-04	1.2	100	6.5 ± 0.4
SCLB-05	1.1	182	6 ± 0.4
SCLB-06	0.9	153	6 ± 0.4

Table 2: Specification of Reinforced Chain Link Conveyor Belt
Item	Wire Diametermm	Cross Rod Diametermm	Spiral Coil Quantity	Belt Thicknessmm
RCLB-01	3.5	4	25	14 ± 0.6
RCLB-02	3.5	3.5	50	14 ± 0.6
RCLB-03	2.8	2.8	50	11 ± 0.5
RCLB-04	2.0	2.0	100	9 ± 0.4
RCLB-05	1.6	1.6	100	7 ± 0.4
RCLB-06	0.9	0.9	200	6 ± 0.4

Table 3: Specification of Double Reinforced Chain Link Conveyor Belt
Item	Wire Diametermm	Cross Rod Diametermm	Spiral Coil Quantity	Belt Thicknessmm
DRCL-01	3.5	3.5	100	14 ± 0.6
DRCL-02	2.8	2.8	132	12 ± 0.5
DRCL-03	2.8	2.8	118	11 ± 0.5
DRCL-04	2.0	2.0	200	9 ± 0.4
DRCL-05	1.6	1.6	250	7.5± 0.4

Packaging

According to customer requirements, provide different packaging.

1. Standard packing---Bulk. Save space, packaging costs, and shipping costs without using pallets.

2. Customized packing. The cost is high, but the loading and unloading is convenient, saving labor costs.

3. Custom labels.

Warehousing: Our factory has a large warehouse, which is clean and dry. A short-term storage screen service is available.

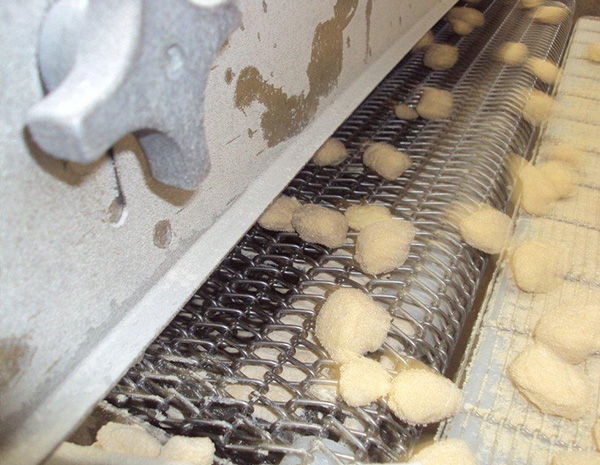

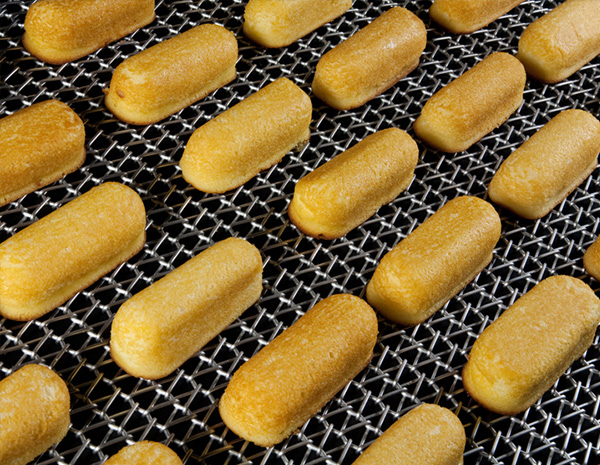

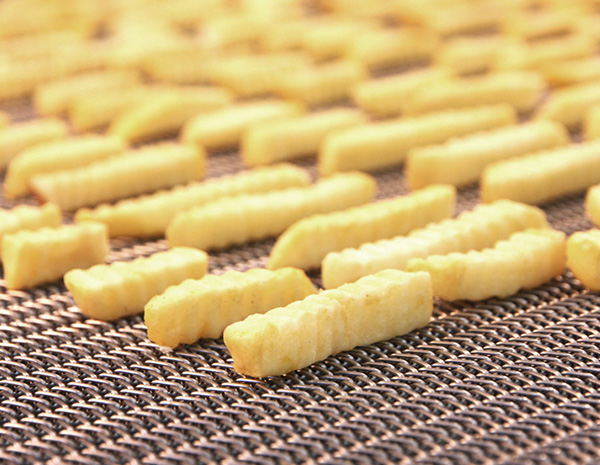

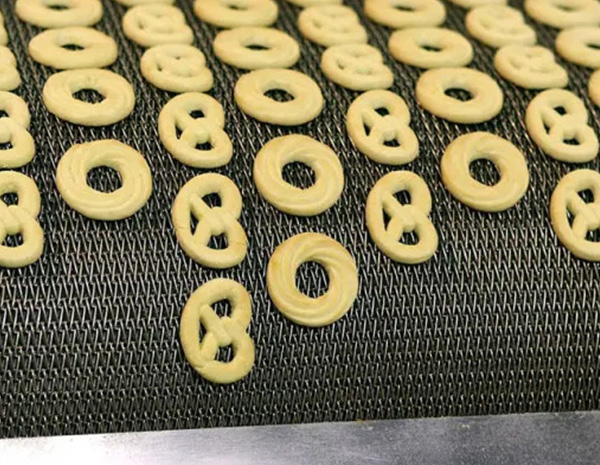

Application
