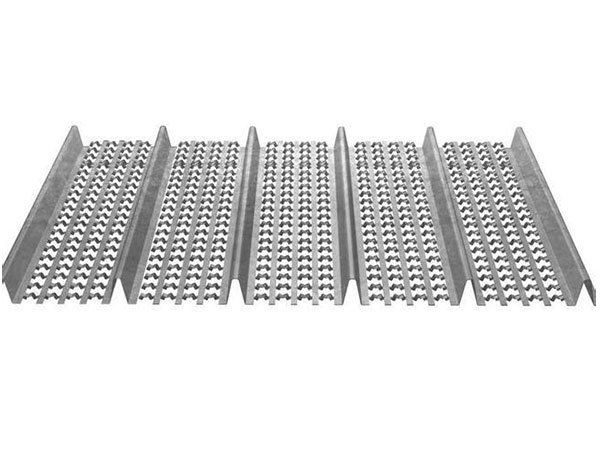

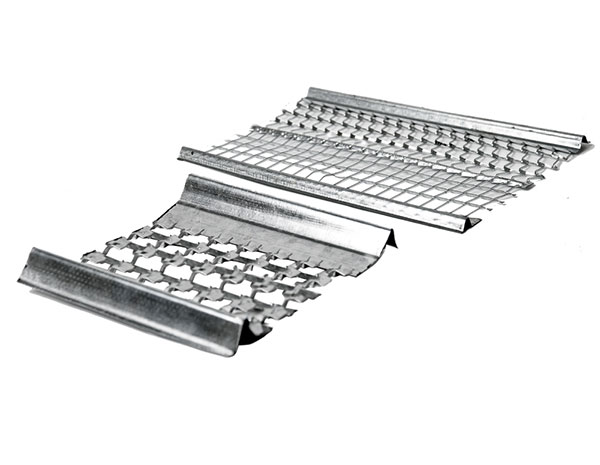

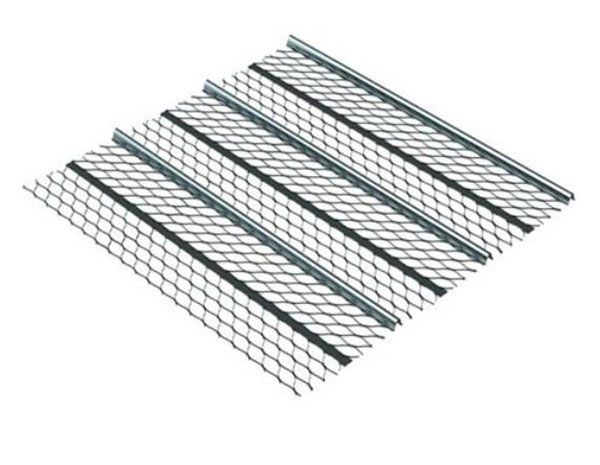

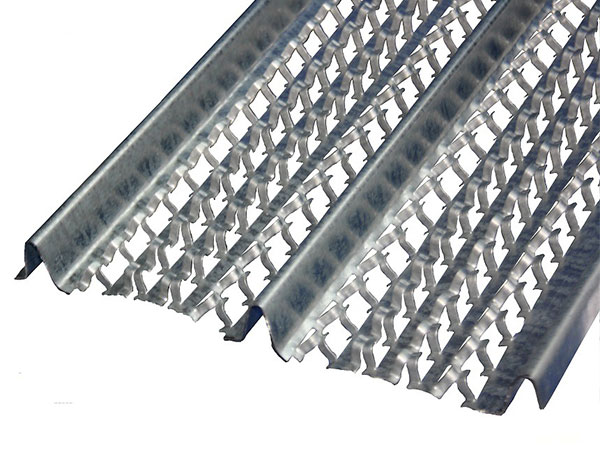

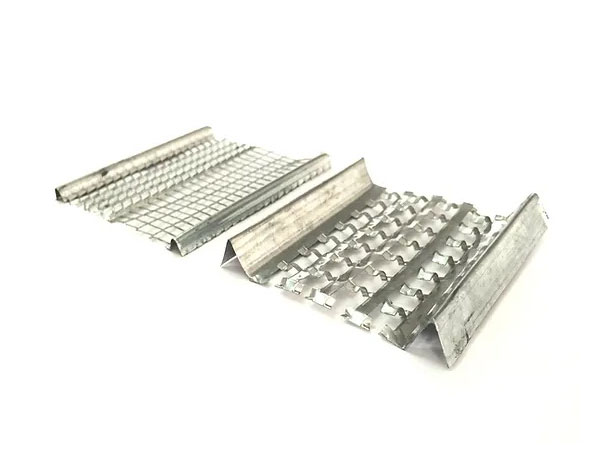

High Rib Formwork Mesh

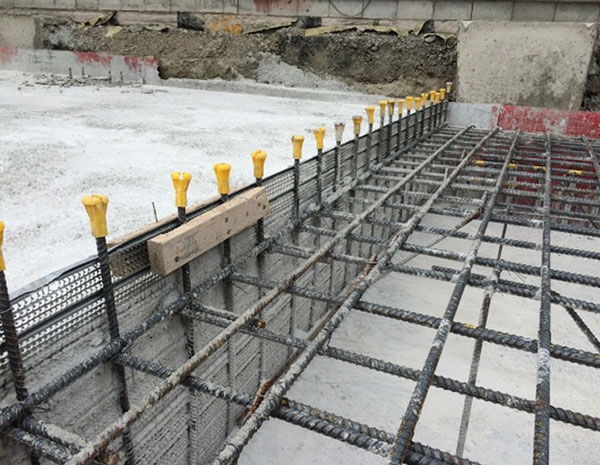

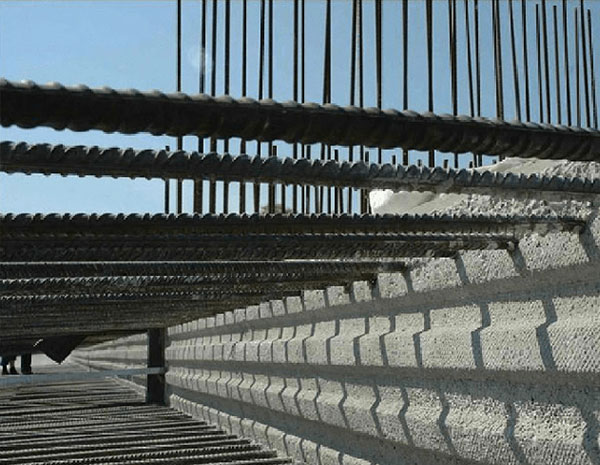

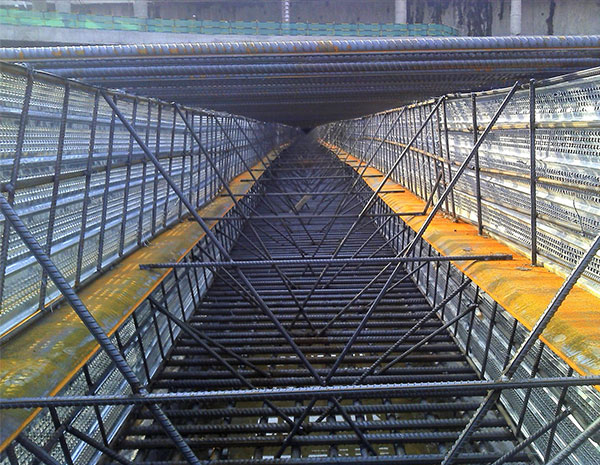

High Rib Formwork Mesh is an expanded metal sheet product, specifically developed for use as permanent formwork to concrete. The profile of the open mesh, in combination with the High rib tangs, allows the development of dense concrete nodules and indents on the face of the High rib , forming an enhanced mechanical key for the second phase pour. In the case of visible elements, the resulting High Rib surface is suitable for a rendered or tiled finish.

Features:

1. Material of Hi Rib Mesh: hot-dipped galvanized steel sheets.

2. Technology of High Rib Mesh: its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.

3. Feature of High Rib Mesh: Excellent engineering quality, construction security.

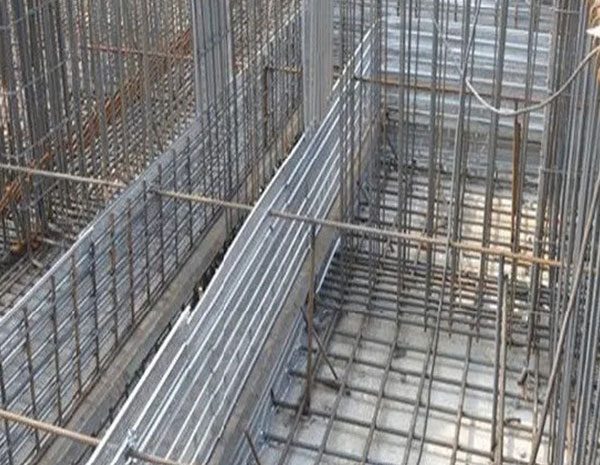

4. Application of High Rib Mesh: It is widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Material :hot-dipped galvanized steel sheets.

Feature: Excellent engineering quality, construction security.

Application:tunnels bridges, valve basement systems, sewage systems, subways, retaining walls,etc

Thickness :0.21-0.5mm

Weight :1.7-4.1kg

Width :450mm

Length :2200mm

Height:14-20mm

Rib Distance :90mm
