Min Order Quantity:100 rolls Price: USD 42.5/roll Sample: Free Application: industrial and agricultural construction, building works,protective cage, guards for window and machinery safety isolation, floor screen reinforcement and poultry cage, fishing, garden and children's play-ground

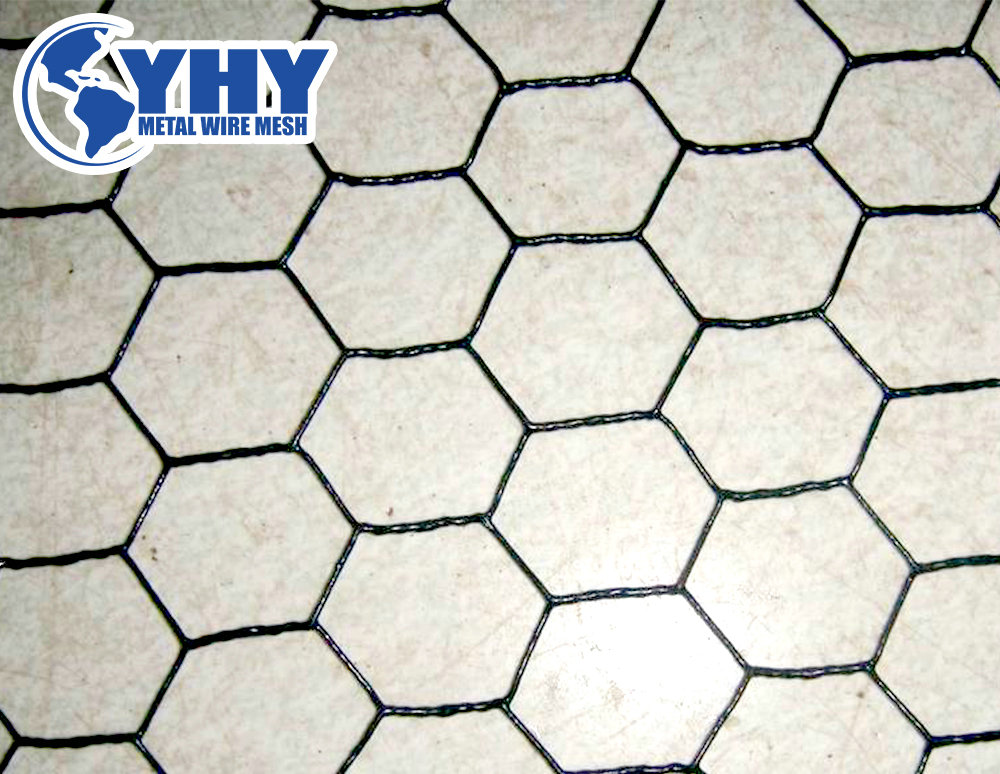

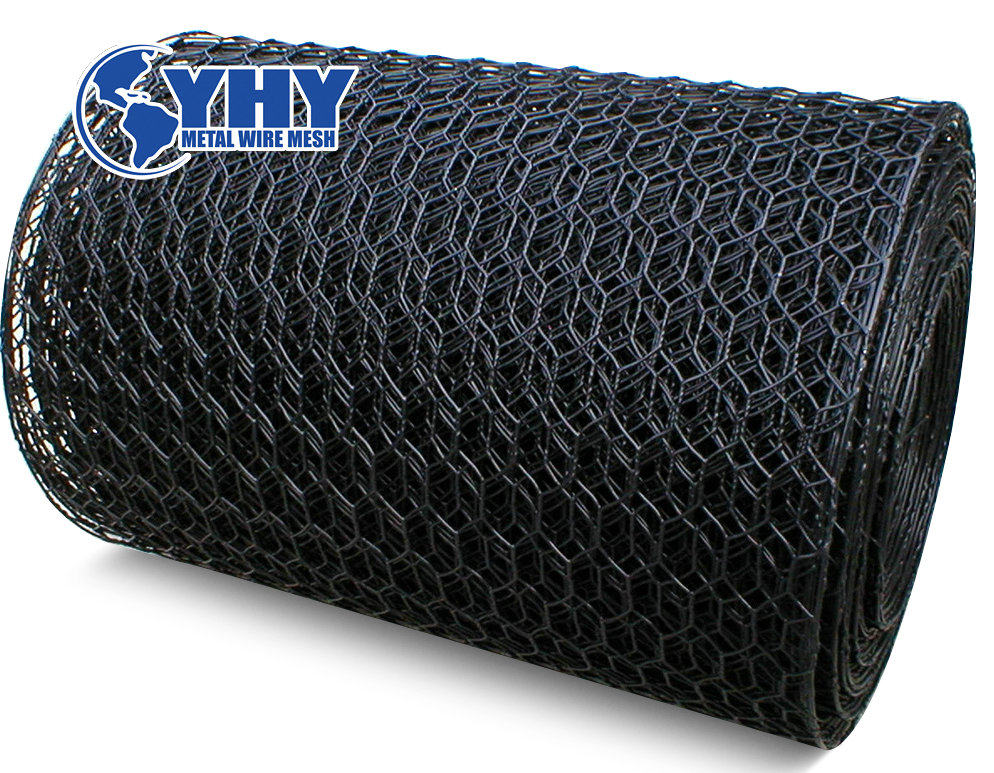

Hexagonal wire mesh
Hexagonal wire mesh is extensively used in industrial and agricultural construction, building works, and all such made for the purpose of reinforcing and fencing as protective cage, guards for window and machinery safety isolation, floor screen reinforcement and poultry cage, fishing, garden and children's play-ground
Material: Hot Dipped Galvanized wire, Electro Galvanized wire, PVC coated wire, stainless steel wire.
Features: Chicken wire is also named Hexagonal Wire Mesh or Hexagonal Wire Netting; it has well erosion-resisting and rustproof properties.
Weaving Types: Straight Twisted, Reversed Twisted

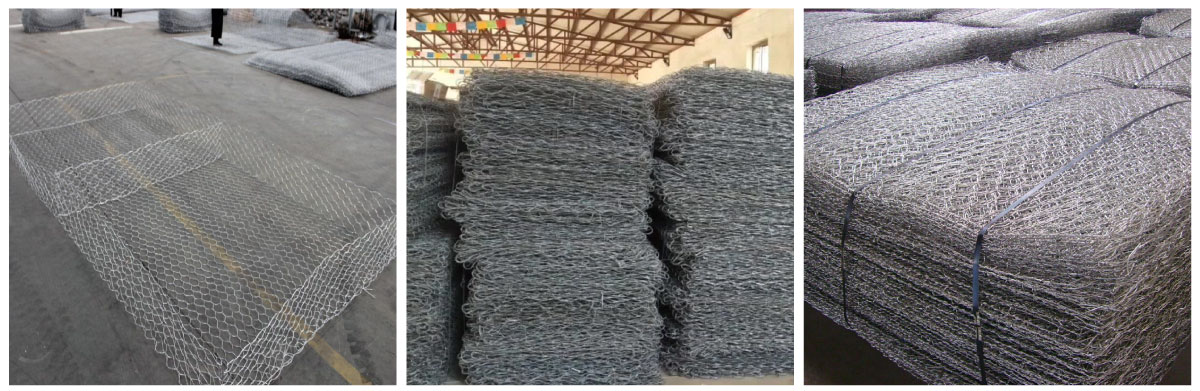

Package: The outside package it is water-proof paper, then bulk loading into container, or package on wooden pallets.
| Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20, |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |
| Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) | ||||
| Mesh | Wire Gauge(BWG) | Reinforcement | ||
| Inch | mm | (BWG) | Width(ft) | Strand |
| 1" | 25mm | 22,21,20,18 | 2' | 1 |
| 1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
| 1-1/2" | 40mm | 20,19,18 | 4' | 3 |
| 2" | 50mm | 20,19,18 | 5' | 4 |
| 3" | 75mm | 20,19,18 | 6' | 5 |

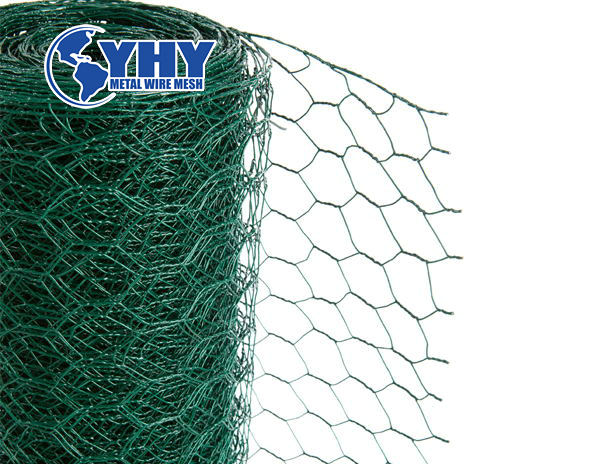

| Hex. wire netting PVC-coated (width of 0.5M-2.0M) | ||
| Mesh | Wire Dia(mm) | |
| Inch | mm | |
| 1/2" | 13mm | 0.9mm,0.1mm |
| 1" | 25mm | 1.0mm,1.2mm,1.4mm |
| 1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
| 2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |

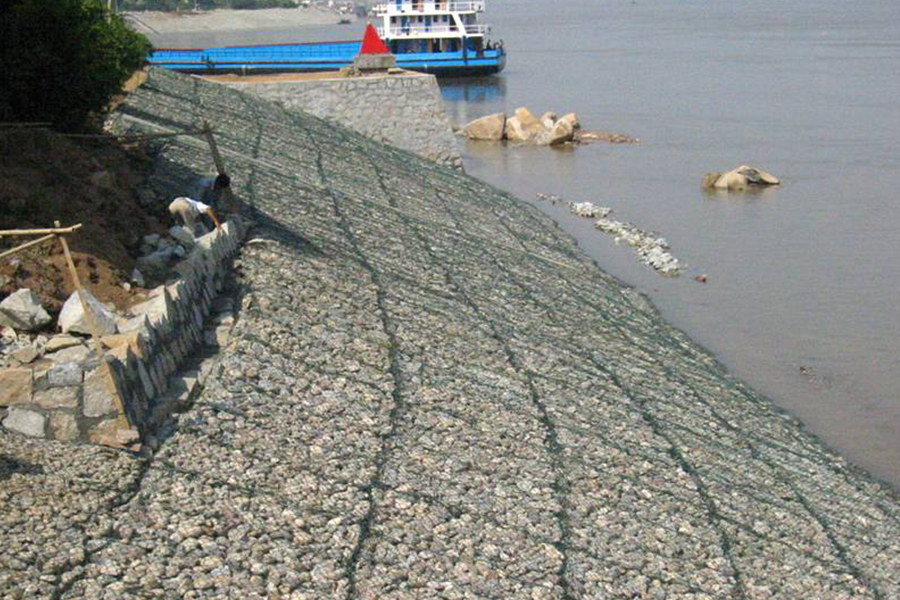

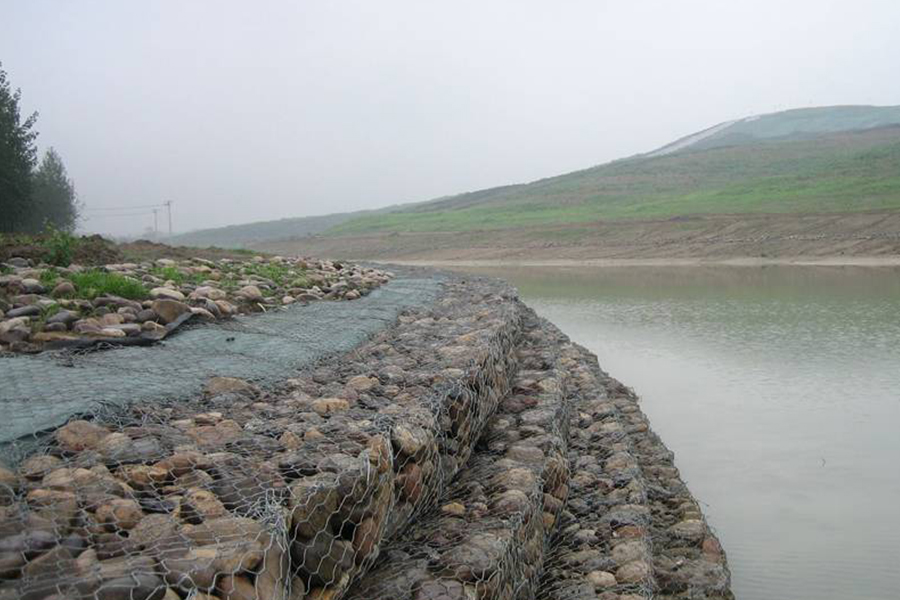

Hexagonal wire mesh for river bank protection

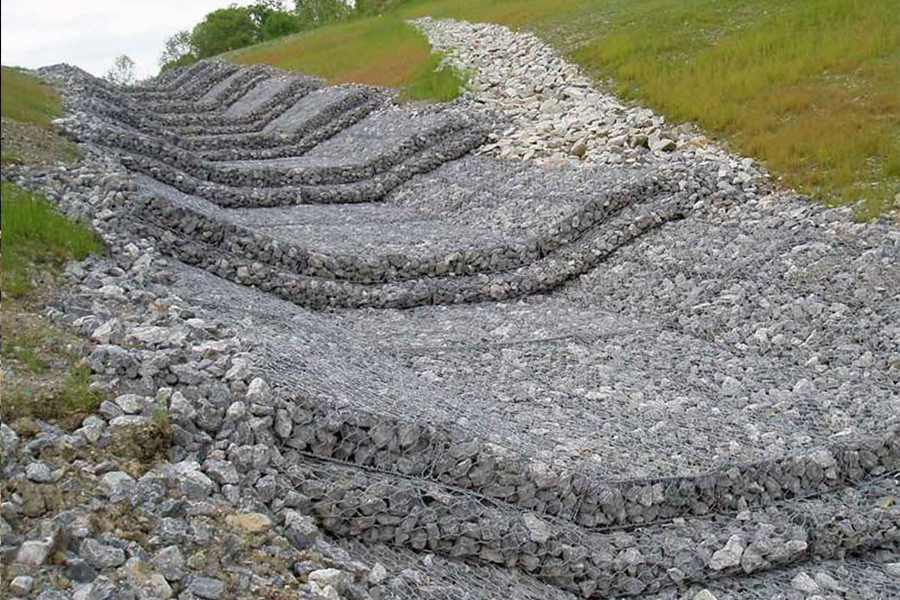

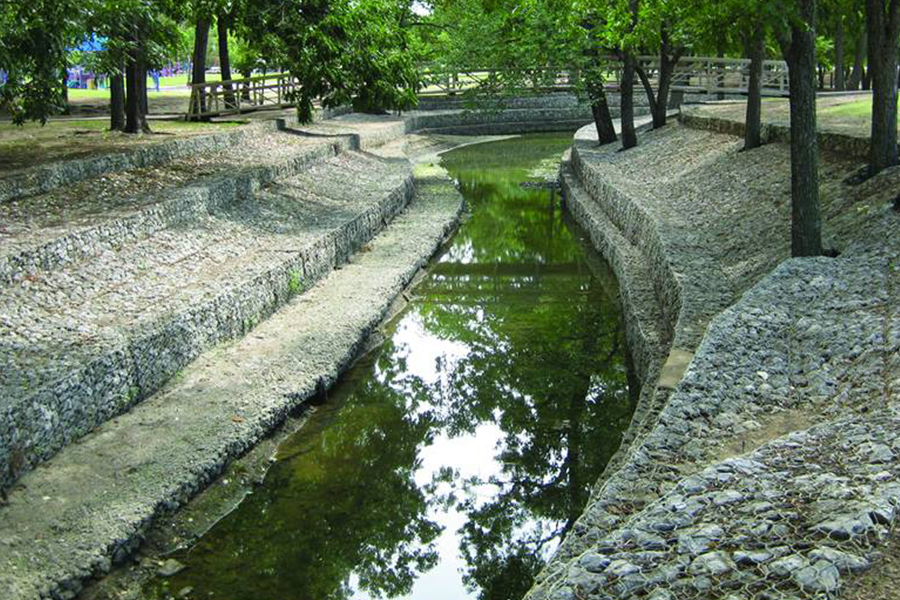

Hexagonal wire mesh gabion mattress for river slope
Hexagonal wire mesh gabion mattress for sea wall
Hexagonal wire mesh gabion mattress for landscape road
