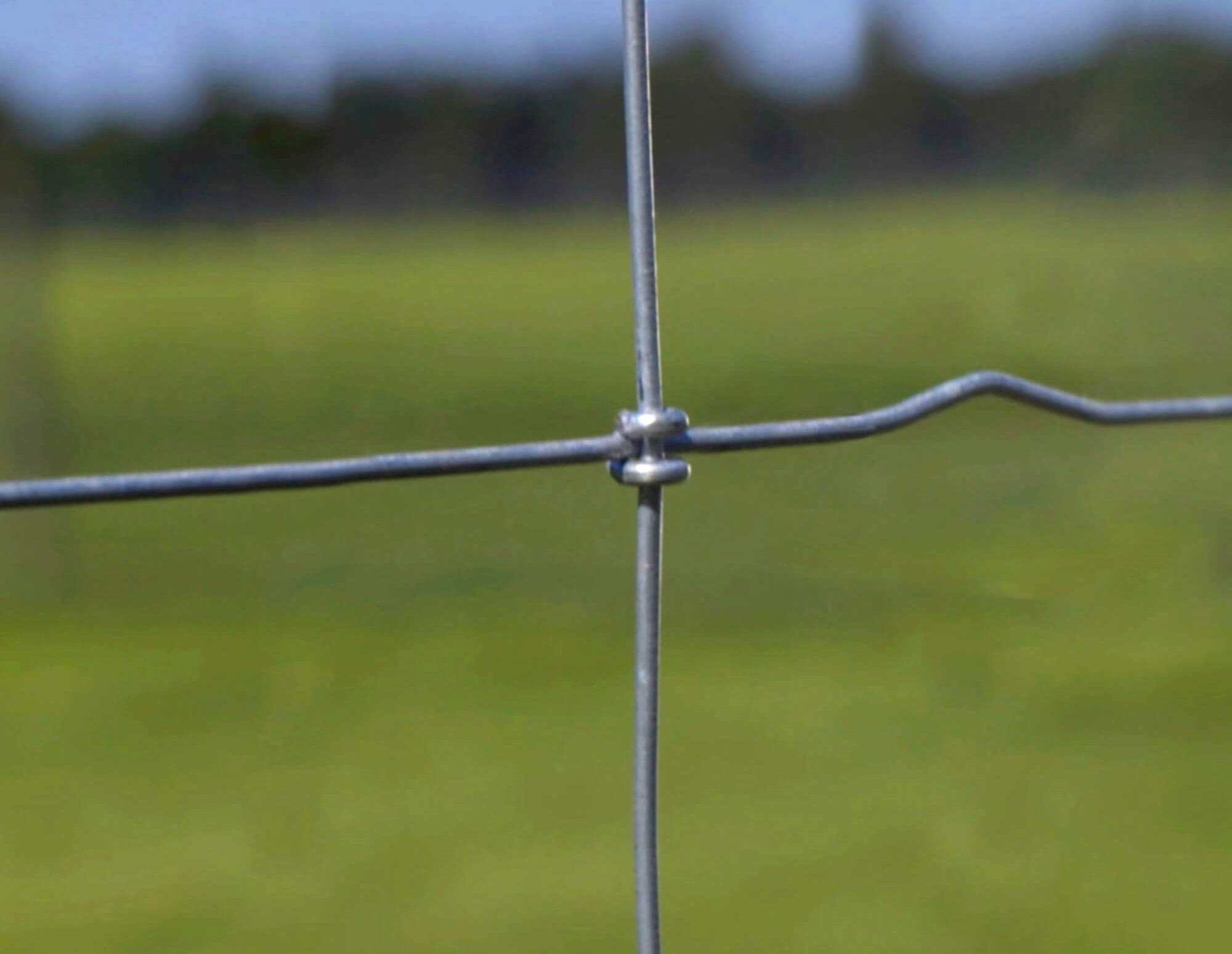

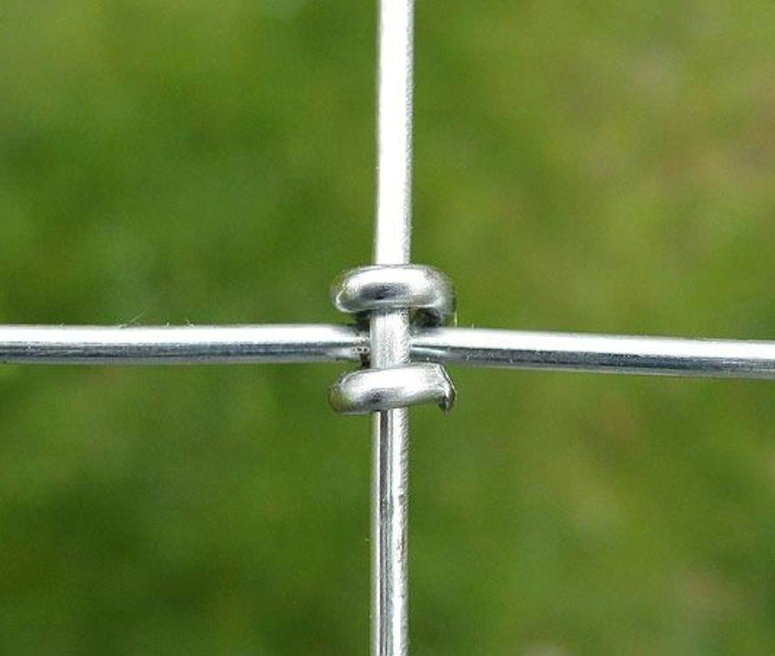

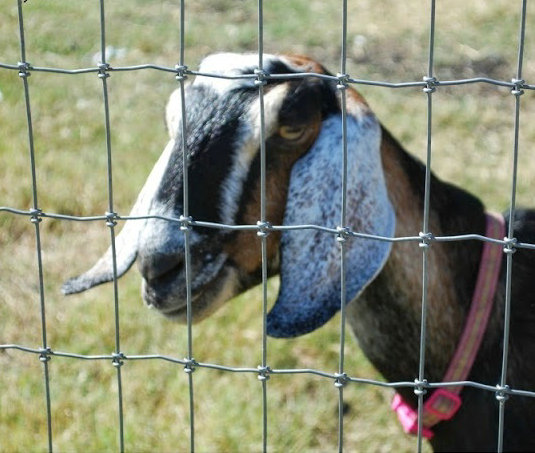

Square deal field fence, made of high-quality steel wire, is also called an S knot field fence because of the S-shaped knot. It is formed by using a separate wire to attach the line wire to the solid stay wire, and the knot is very smooth. With a hot-dipped galvanized surface, the square deal field fence is corrosion and rust-resistant.
High strength and rigidity make square deal field fence a good choice for animals fencing.
Square deal field fence, made of high-quality steel wire, is also called an S knot field fence because of the S-shaped knot. It is formed by using a separate wire to attach the line wire to the solid stay wire, and the knot is very smooth. With a hot-dipped galvanized surface, the square deal field fence is corrosion and rust-resistant.
Featured by high strength, perfect rigidity, and long service life, it is widely used for various animal fencing in farms and pastures. Besides, it also can be used for forestry fencing, road, railway, highway fencing, and so on.
Specification:
Wire diameter: 2.0mm, of which the edge wire can be made 2.5mm.
Mesh arrangement: The minimum mesh size is 3 inches, which can be adjusted according to 1 inch. The number of horizontal wires is up to 20 wires, and the height can be up to 2400mm.
Verticalwire distance spacing: 50, 100, 150, 200, 300mm.
Length: 50m and 100m.
| Common Specifications of Square Deal Field Fence | ||||
Item | SKF 22/160/15 | SKF 17/192/15 | SKF 22/200/15 | SKF 20/245/15 |
Knot | S knot | S knot | S knot | S knot |
Height | 1600 mm | 1920 mm | 2000 mm | 2450 mm |
Light High Tensile | RL | R | RL | R |
Number of Longitudinal Wire | 22 | 17 | 22 | 20 |
Wire Diameter | 2.0 mm | 2.5 mm | 2.0 mm | 2.5 mm |
Mesh Size | 15 cm | 15 mm | 15 cm | 15 cm |
Standard Roll Length | 50 m, 100 m, 150 m, 200 m | |||
Tensile Strength of Longitudinal Wire | 1300 N/mm2 | 1400 N/mm2 | 1300 N/mm2 | 1400 N/mm2 |
Tensile Strength of Vertical Wire | 900 N/mm2 | 900 N/mm2 | 900 N/mm2 | 900 N/mm2 |
Suitable Animal | sheep, goat, cattle, chicken, rabbit | deer, cattle, pig, sheep, goat | sheep, goat, cattle, chicken, rabbit | deer, horse, cattle, sheep, pig |

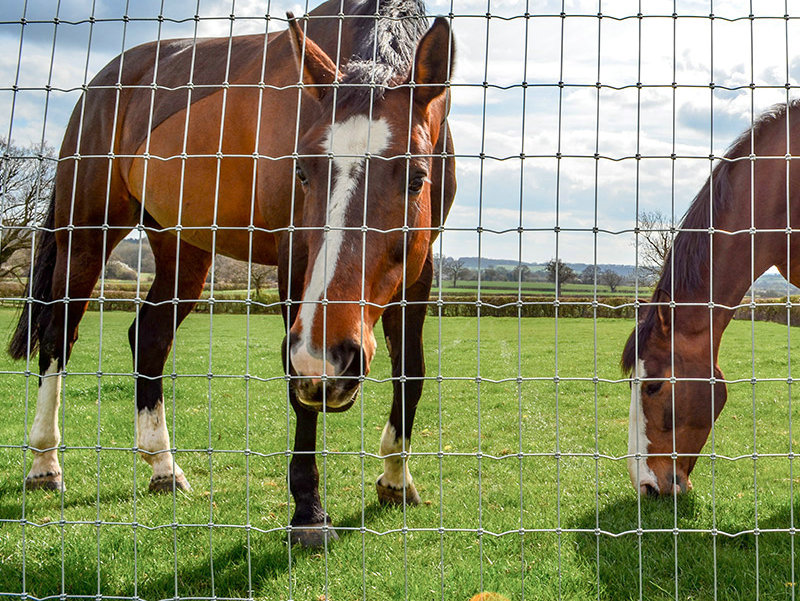

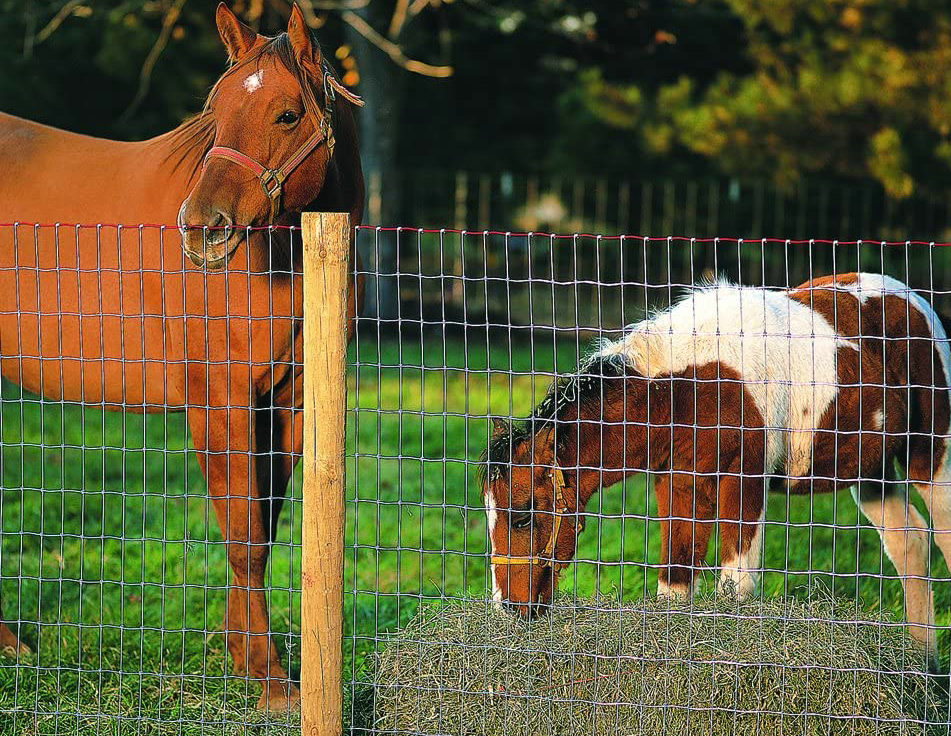

Square deal knot fence for horse

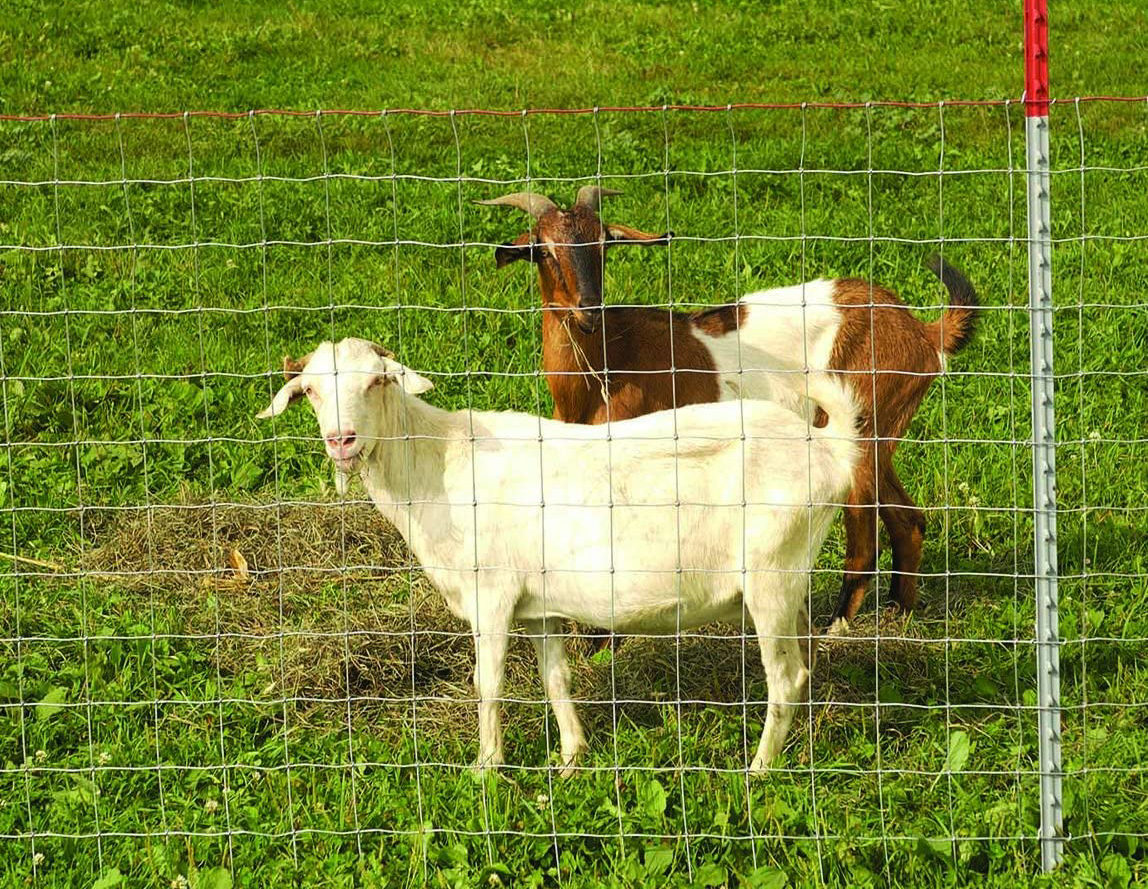

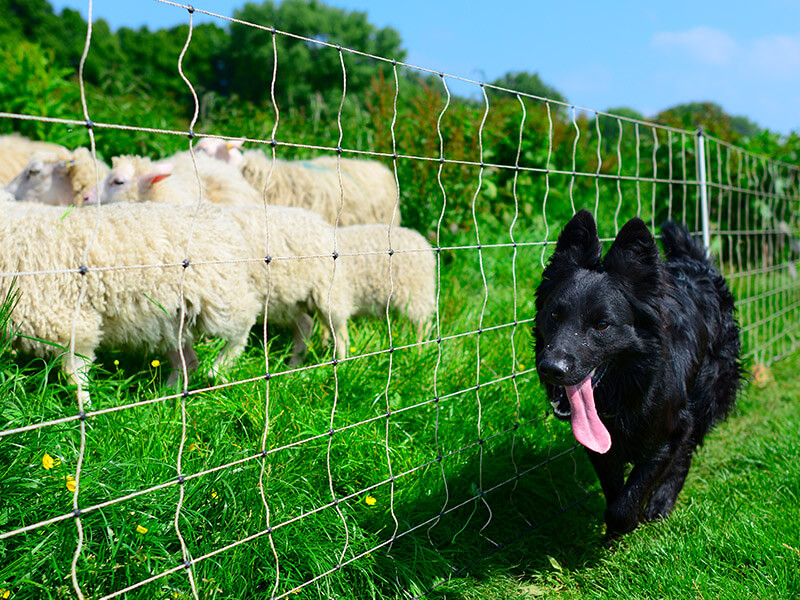

Square deal knot fence for livestock farms

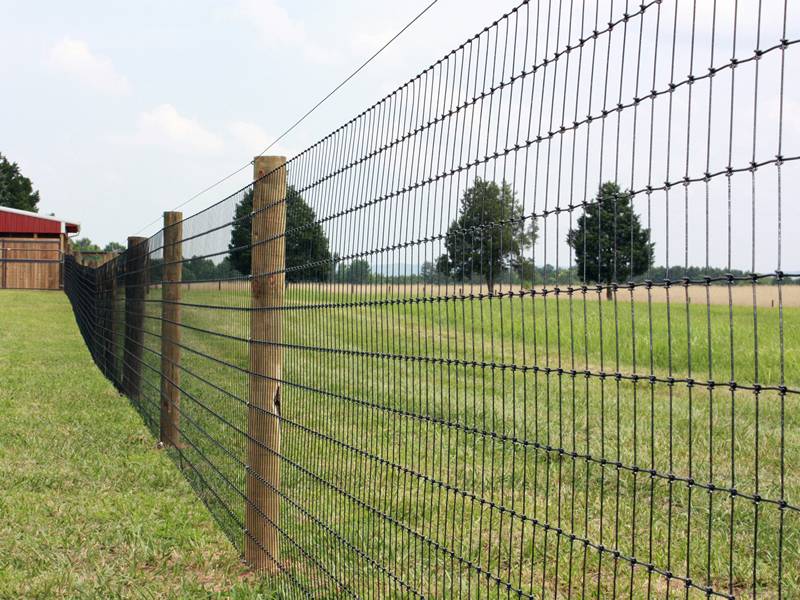

Square deal knot fence for grassland

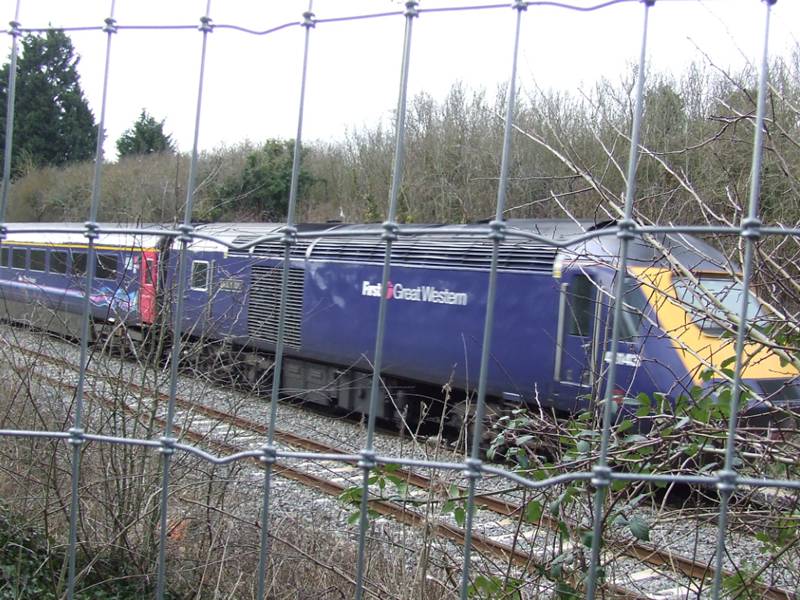

Square deal knot fence for the railway
