Min Order Quantity: 50 rolls Sample: Free Application: Field fence can be used with stakes, wood timber, and other posts. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

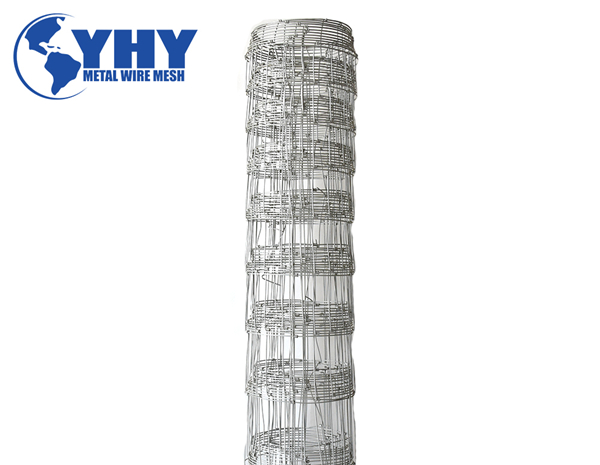

Veld Span Fence

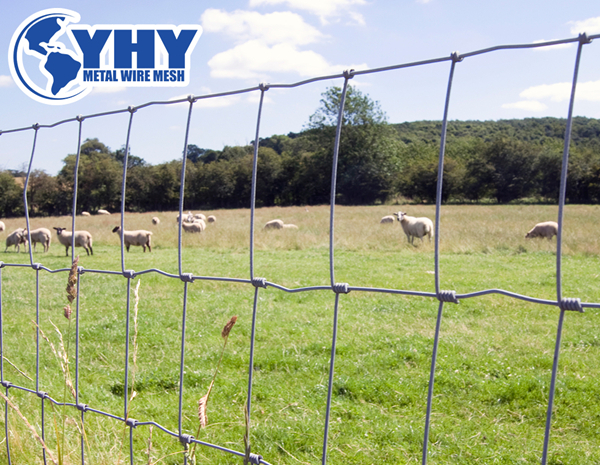

Field fence can be used with stakes, wood timber, and other postS. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.
● Material: High-quality high carbon steel wire, low carbon steel wire.
●Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m, and 1.8m.
● Knot type: Hinge joint type, tight lock knot type.
● Surface treatment: hot-dipped galvanized, electro-galvanized.
● Main market: Malaysia, Australia, Peru, North America, and Africa.
Specifications Chart:
No. | Item | Specification | The top and bottom wires diameter | The middle wires diameter | Roll diameter | |
1. | 7/150/813/50 | 102+114+127+140+152+178 | 2.5 | 2.0 | 280 | |
2. | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 2.5 | 2.0 | 280 | |
3. | 8/150/902/50 | 89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 | |
4. | 8/150/1016/50 | 102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 | |
5. | 8/150/1143/50 | 114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | |
6. | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 | |
7. | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | |
8. | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 | |
9. | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | |
10. | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | |
Note: the item numbers: the first number means the number of wire of width; the second number means the distance of horizontal wires (mm); the third number means the height of mesh(mm); the fourth number means the length of mesh(m). we can also produce the mesh according to the customers' special requirements. |
Knot types:
Hinge joint is an economical alternative to tight lock and caters for lower stock pressure applications such as sheep, lamb, goat and also conservation fencing.
Tight lock design feature ensures that the load of any impact will spread and dissipate of the full height of the fence and for some distance of either side.

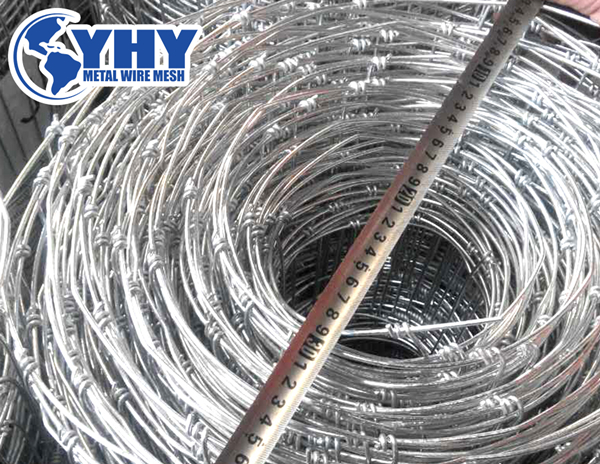

Twisted edge wire makes the fence to be more tension strength
The addition of tension curves to line wires allow any impact load on the fence to spread along the line and stay wire.

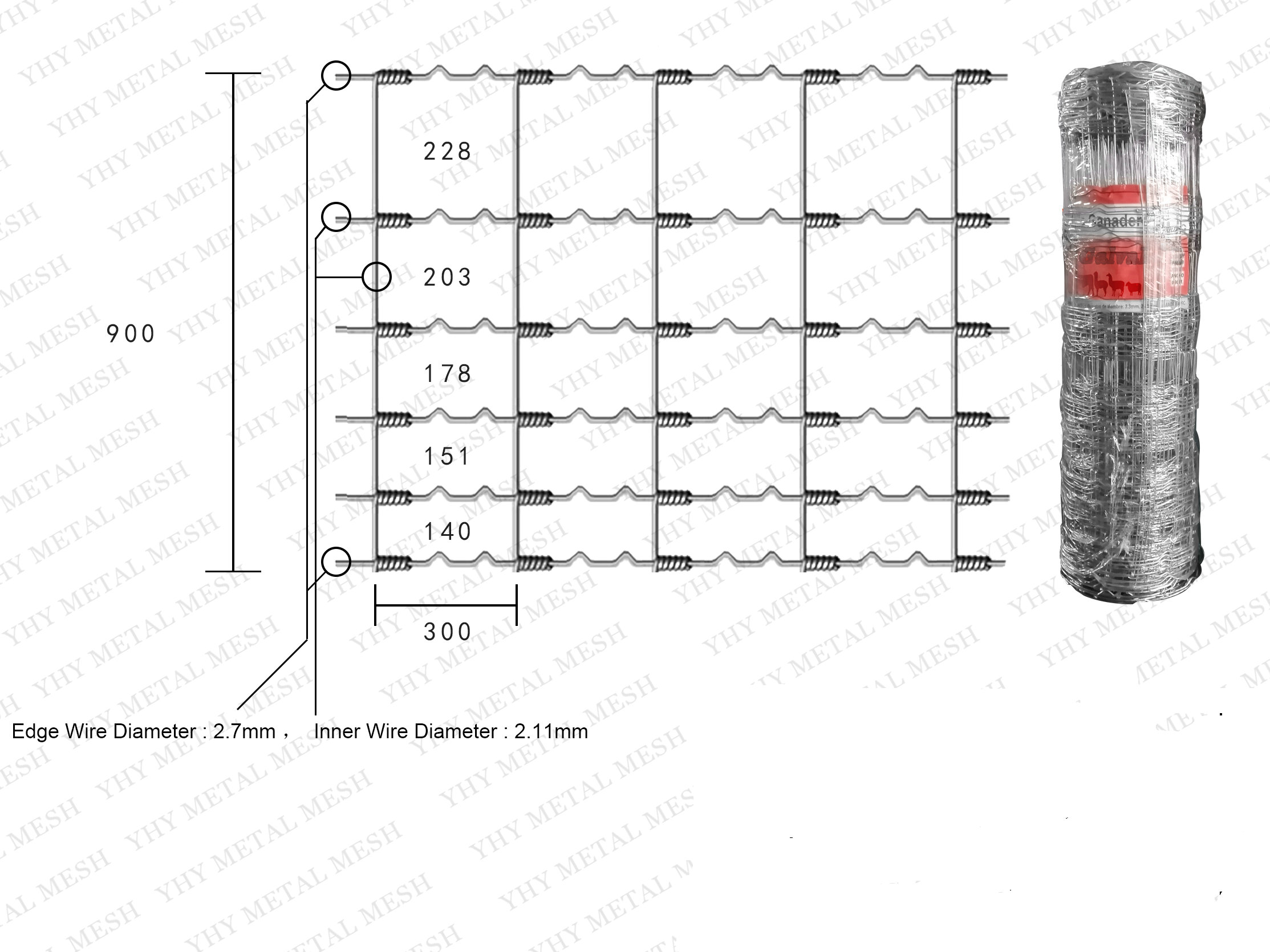

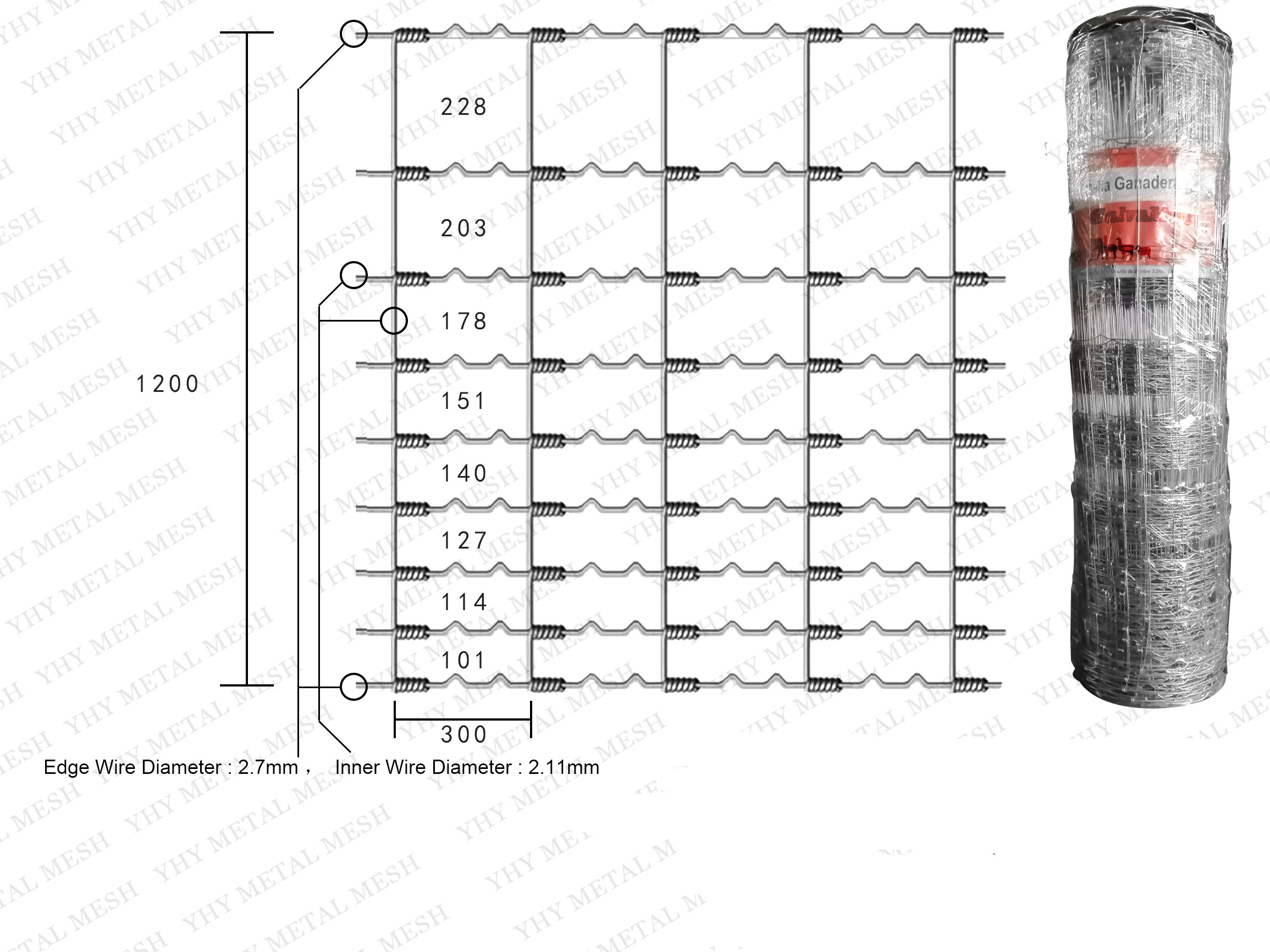

Specifications Drawing:

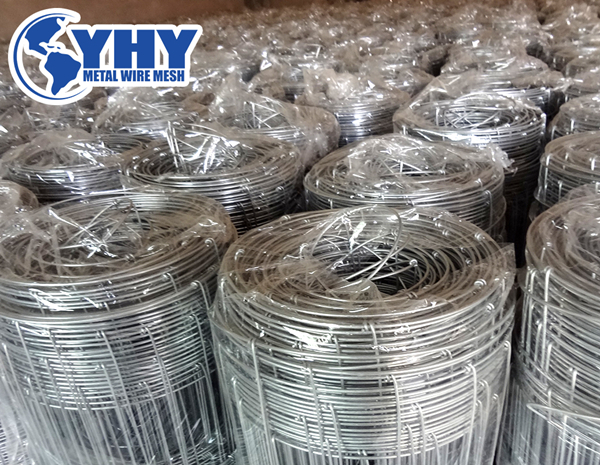

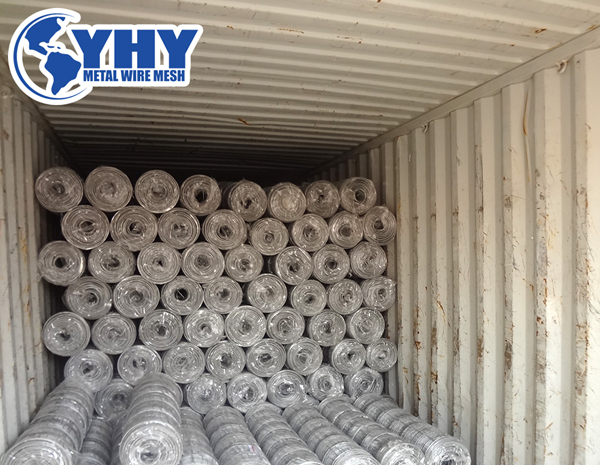

Production Processing Photo and Video...
