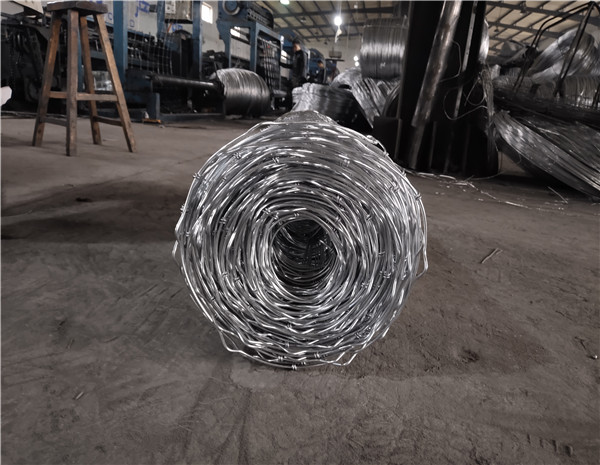

1.5m Height Galvanized 30cm Vertical Wire Distance 100m Long hinge joint Cattle fence

Min Order Quantity: 50 rolls Sample: Free Application: Field fence can be used with stakes, wood timber, and other posts. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

Inquire Now Next Product

Detail Description

Field Fence :

The hinge joint knots also called field fence, grassland fence, cattle wire fence. The hinge joint knot is found on both galvanized low carbon and high tensile wire products. This is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available. Besides, they also can be used with barbed wire or chicken wire for farm fencing, garden fencing, road fencing, forest fencing and so on

● Material: High-quality high carbon steel wire, low carbon steel wire.

●Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m, and 1.8m.

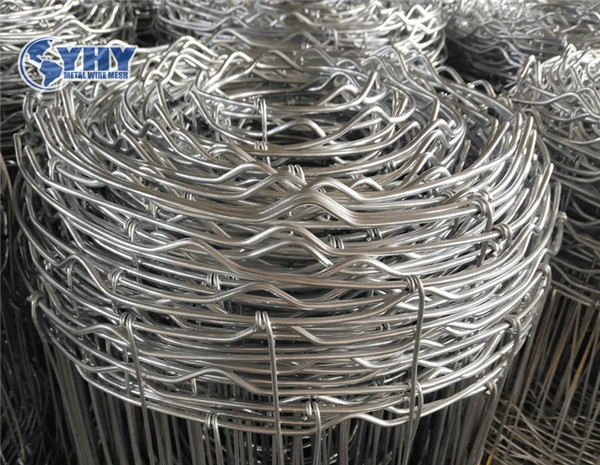

● Knot type: Hinge joint type

● Surface treatment: hot-dipped galvanized, electro-galvanized.

● Main market: Malaysia, Australia, Peru, North America, and Afric

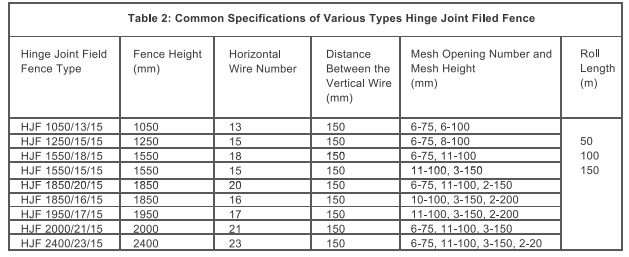

Specifications Chart:

Knot types:

The hinge joint is an economical alternative to tight lock and caters for lower stock pressure applications such as sheep, lamb, goat and also conservation fencing.

0.9m Height Galvanized 10cm Vertical Wire Distance 100m Long Green color PVC hinge joint fence

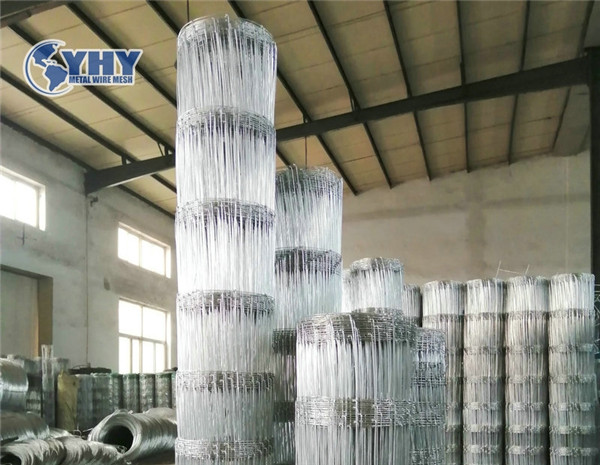

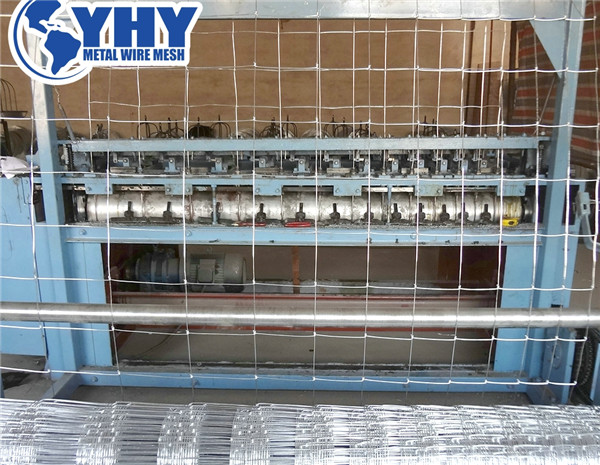

Production Processing Photo and Video...

Knowledge

There is a difference in steel wire material for you to choose from.

A. Hot dipped galvanized wire B. Heavy zinc-coated wire C. Zinc aluminum alloy wire D. PVC coated wire

Wire Material	Difference Wire Material Cooperation
	Zinc coated	Zinc Layer	Use Life Price	Price
A	60g/mm2	35um	15years	Competitive
B	260g/mm2	150um	50 years	Higher
C	260g/m2 +10%Alu	150um	50 years	Expensive
D	Inner wire 20g/mm2	3um+1mm PVC layer	10 years	Only suitable for Edge wire

The available wire for produce the wire fence is: low carbon steel wire, Carbon steel wire (hard type), high carbon steel wire.

Wire Material	Physical Properties
Wire Material	Tensile Strength Mpa	Yield Strength Mpa	Elongation %	V-type shock absorption work (vertical )Ak/J
Low carbon steel wire	350-450	195	33	≥27
Carbon steel wire hard type	550-750	225	37	≥27
High carbon steel wire	1200-1400	350	39	≥27

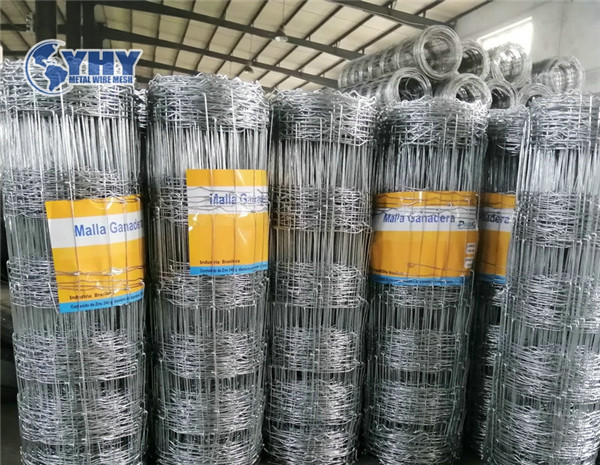

Packaging

0.9m Height Galvanized 10cm Vertical Wire Distance 100m Long Green color PVC hinge joint fence

Application

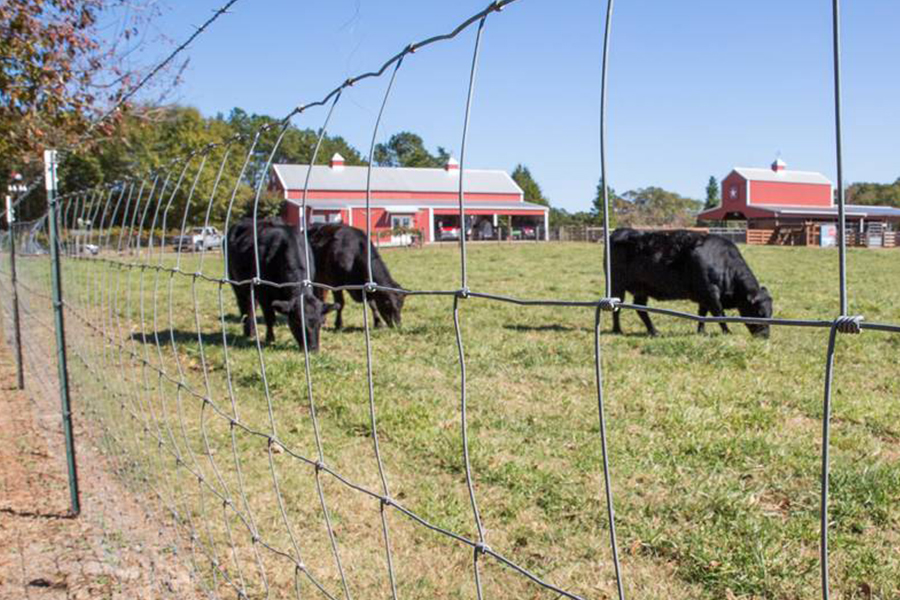

Hinge joint fence for cattle

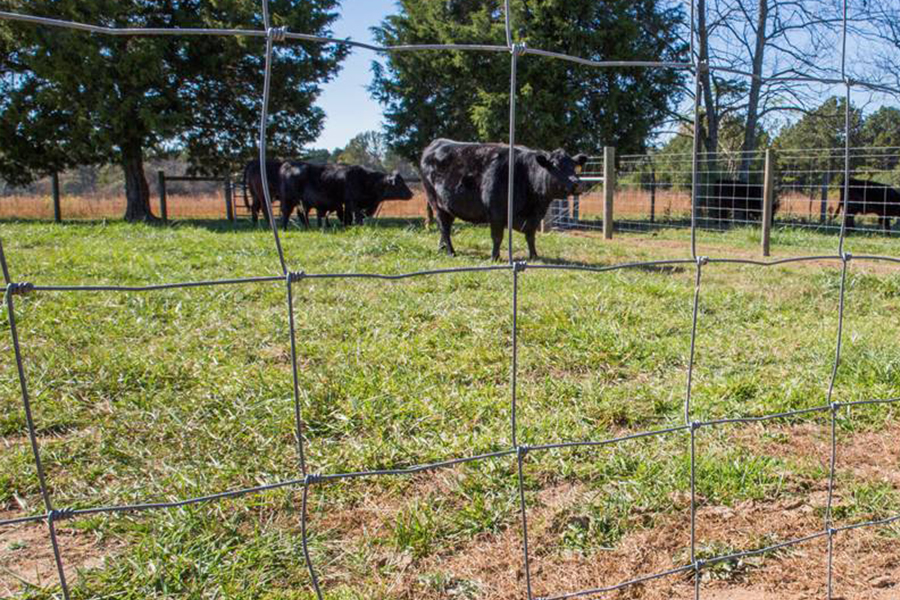

Hinge joint fence for cow

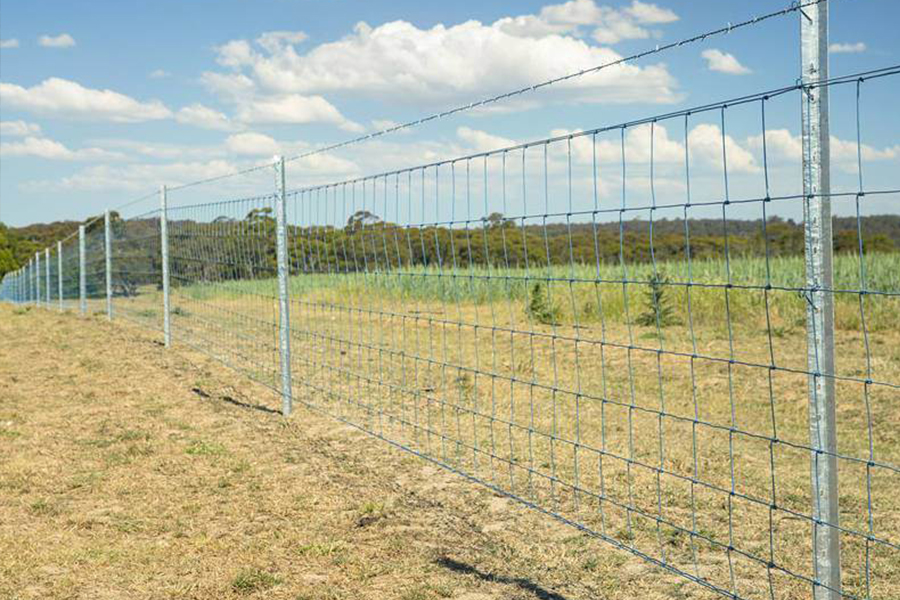

Hinge joint fence for field

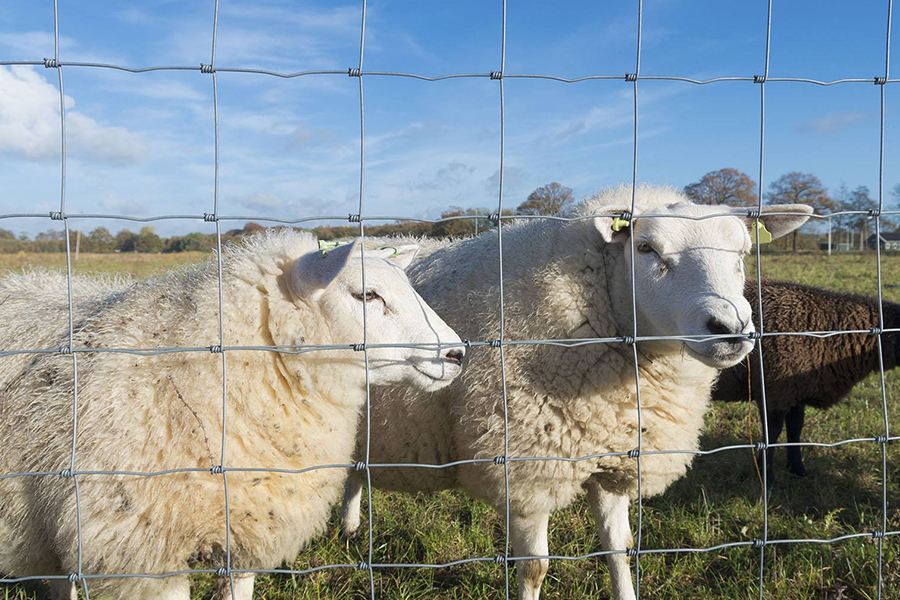

Hinge joint fence for sheep
