1.55m Height Galvanized 50mm Vertical Wire Distance 50m long tight lock fence

Min Order Quantity: 50 rolls Sample: Free Application: Fixed-knot field fence, mainly made of high carbon steel wire, is also called the game fence, deer fence. It is featured by the solid knot, which combines the hinge joint knot structure. the fixed knot fence options suitable for virtually any application on the farm or ranch.

Inquire Now Next Product

Detail Description

Field Fence/Page Wire

Field fence can be used with stakes, wood timber and other post. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

● Material: High quality high carbon steel wire, low carbon steel wire.

●Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m and 1.8m.

● Knot type: Hinge joint type, tight lock knot type.

● Surface treatment: hot dipped galvanized, electro galvanized.

● Main market: Malaysia, Australia, Peru, North America and Africa.

Specifications Chart:

No.	Item	Specification	The top and bottom wires diameter	The middle wires diameter	Roll diameter
1.	7/150/813/50	102+114+127+140+152+178	2.5	2.0	280
2.	8/150/813/50	89(75)+89+102+114+127+140+152	2.5	2.0	280
3.	8/150/902/50	89+102+114+127+140+152+178	2.5	2.0	280
4.	8/150/1016/50	102+114+127+140+152+178+203	2.5	2.0	280
5.	8/150/1143/50	114+127+140+152+178+203+229	2.5	2.0	280
6.	9/150/991/50	89(75)+89+102+114+127+140+152+178	2.5	2.0	280
7.	9/150/1245/50	102+114+127+140+152+178+203+229	2.5	2.0	280
8.	10/150/1194/50	89(75)+89+102+114+127+140+152+178+203	2.5	2.0	280
9.	10/150/1334/50	89+102+114+127+140+152+178+203+229	2.5	2.0	280
10.	11/150/1422/50	89(75)+89+102+114+127+140+152+178+203+229	2.5	2.0	280
Note: the item numbers: the first number means the number of wire of width; the second number means distance of horizontal wires (mm); the third number means the height of mesh(mm);the fourth number means length of mesh(m). we can also produce the mesh according to the customers special requirements.

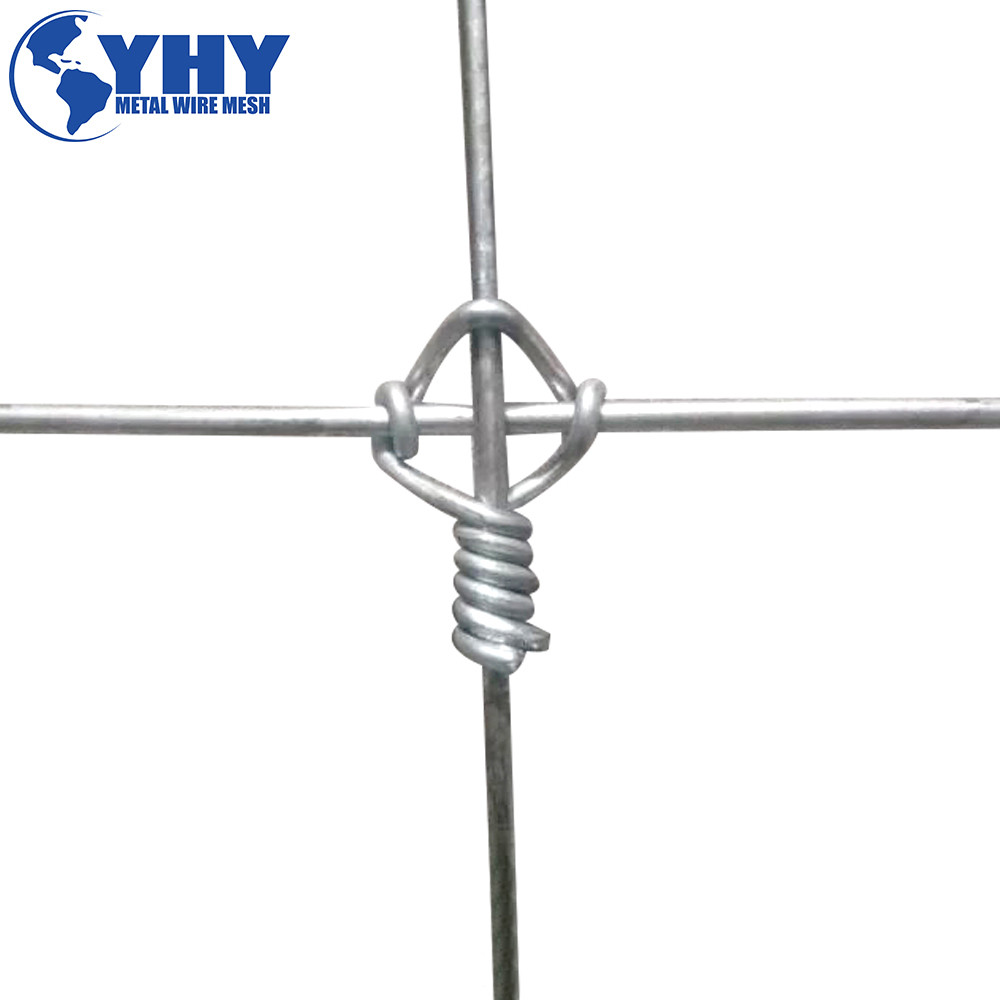

Knot types:

Hinge joint is an economical alternative to tight lock and caters for lower stock pressure applications such as sheep, lamb, goat and also conservation fencing.

Tight lock design feature ensures that the load of any impact will spread and dissipate of the full height of the fence and for some distance of either side.

Twisted edge wire makes the fence to be more tension strength

The addition of tension curves to line wires allow any impact load on the fence to spread along the line and stay wire.

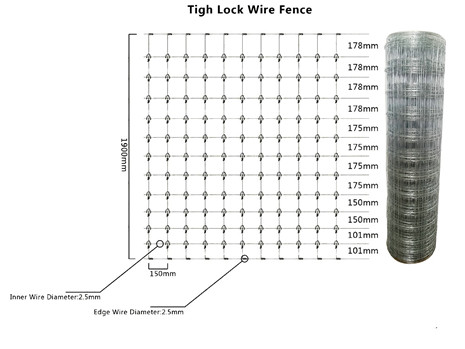

Specifications Drawing:

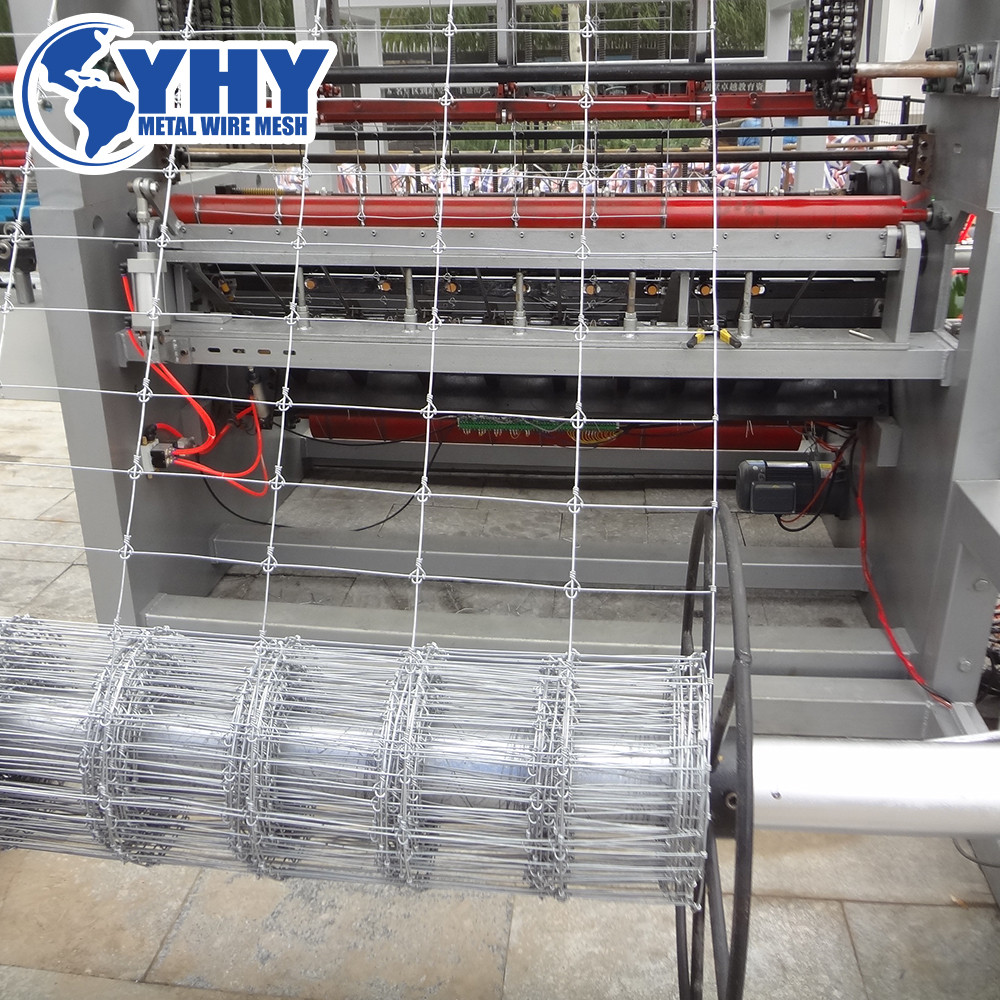

Production Processing Photo and Video...

Knowledge

1.55m Height Galvanized 50mm Vertical Wire Distance 50m long tight lock fence

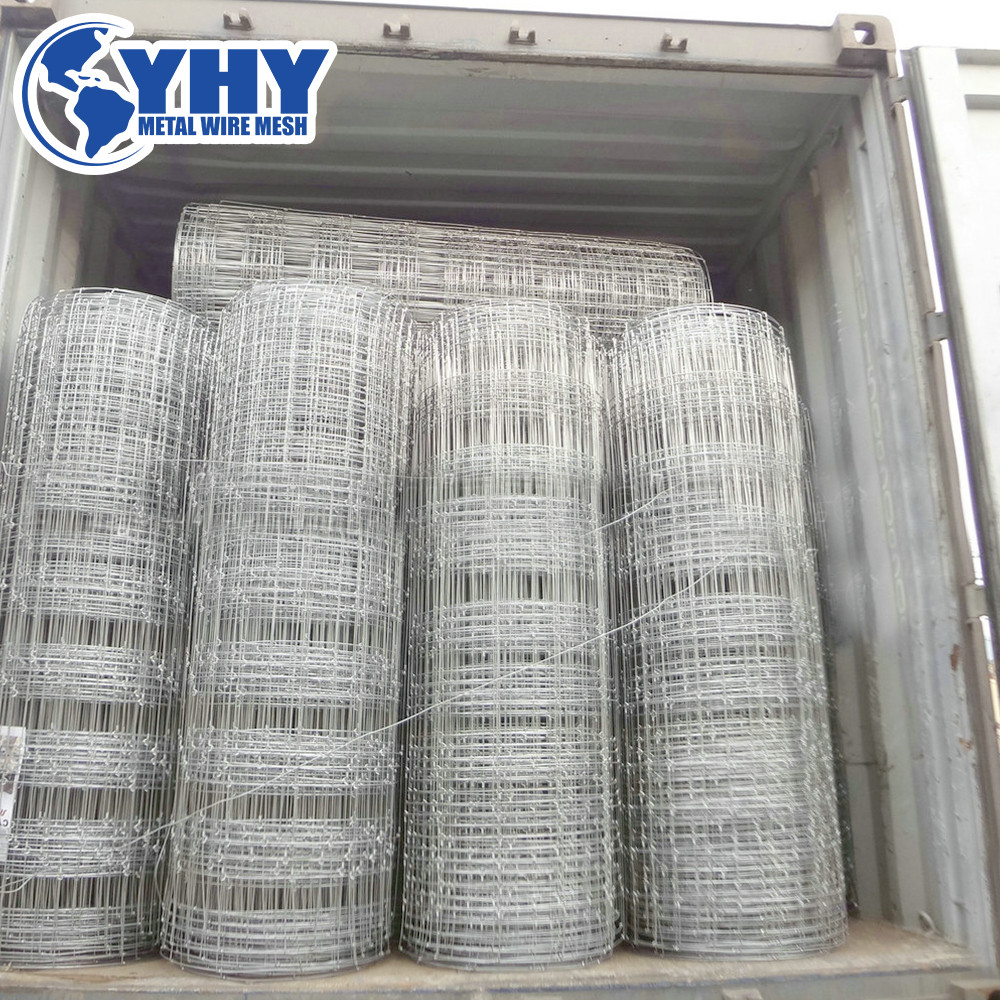

Packaging

Field Fence

Application
