1.55m Height Galvanized 150mm Vertical Wire Distance 150m long galvanized hinge joint cattle fence

Min Order Quantity: 50 rolls Sample: Free Application: Field fence can be used with stakes, wood timber, and other posts. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

Inquire Now Next Product

Detail Description

Field Fence

Field fence can be used with stakes, wood timber, and other posts. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

● Material: High-quality high carbon steel wire, low carbon steel wire.

●Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m, and 1.8m.

● Knot type: Hinge joint type

● Surface treatment: hot-dipped galvanized, electro-galvanized.

● Main market: Malaysia, Australia, Peru, North America, and Afric

Specifications Chart:

No.	Item	Specification	The top and bottom wires diameter	The middle wires diameter	Roll diameter
1.	7/150/813/50	102+114+127+140+152+178	2.5	2.0	280
2.	8/150/813/50	89(75)+89+102+114+127+140+152	2.5	2.0	280
3.	8/150/902/50	89+102+114+127+140+152+178	2.5	2.0	280
4.	8/150/1016/50	102+114+127+140+152+178+203	2.5	2.0	280
5.	8/150/1143/50	114+127+140+152+178+203+229	2.5	2.0	280
6.	9/150/991/50	89(75)+89+102+114+127+140+152+178	2.5	2.0	280
7.	9/150/1245/50	102+114+127+140+152+178+203+229	2.5	2.0	280
8.	10/150/1194/50	89(75)+89+102+114+127+140+152+178+203	2.5	2.0	280
9.	10/150/1334/50	89+102+114+127+140+152+178+203+229	2.5	2.0	280
10.	11/150/1422/50	89(75)+89+102+114+127+140+152+178+203+229	2.5	2.0	280
Note the item numbers: the first number means the number of wire of width; the second number means the distance of horizontal wires (mm); the third number means the height of mesh(mm); the fourth number means the length of mesh(m). we can also produce the mesh according to the customers' special requirements.

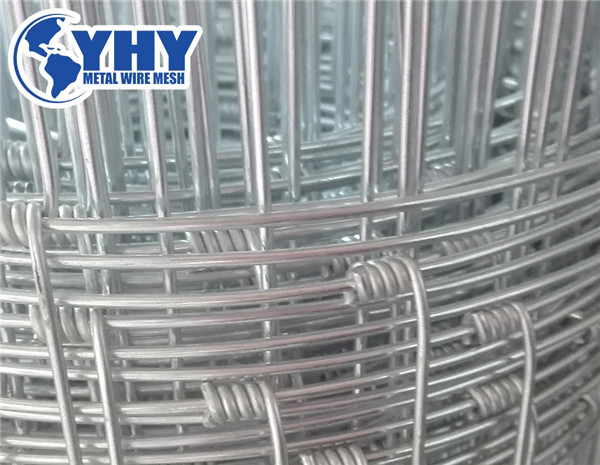

Knot types:

The hinge joint is an economical alternative to tight lock and caters for lower stock pressure applications such as sheep, lamb, goat and also conservation fencing.

0.9m Height Galvanized 10cm Vertical Wire Distance 100m Long Green color PVC hinge joint fence

Knowledge

There is a difference in steel wire material for you to choose from.

A. Hot dipped galvanized wire B. Heavy zinc-coated wire C. Zinc aluminum alloy wire D. PVC coated wire

Wire Material	Difference Wire Material Cooperation
	Zinc coated	Zinc Layer	Use Life Price	Price
A	60g/mm2	35um	15years	Competitive
B	260g/mm2	150um	50 years	Higher
C	260g/m2 +10%Alu	150um	50 years	Expensive
D	Inner wire 20g/mm2	3um+1mm PVC layer	10 years	Only suitable for Edge wire

The available wire for produce the wire fence is: low carbon steel wire, Carbon steel wire (hard type), high carbon steel wire.

Wire Material	Physical Properties
Wire Material	Tensile Strength Mpa	Yield Strength Mpa	Elongation %	V-type shock absorption work (vertical )Ak/J
Low carbon steel wire	350-450	195	33	≥27
Carbon steel wire hard type	550-750	225	37	≥27
High carbon steel wire	1200-1400	350	39	≥27

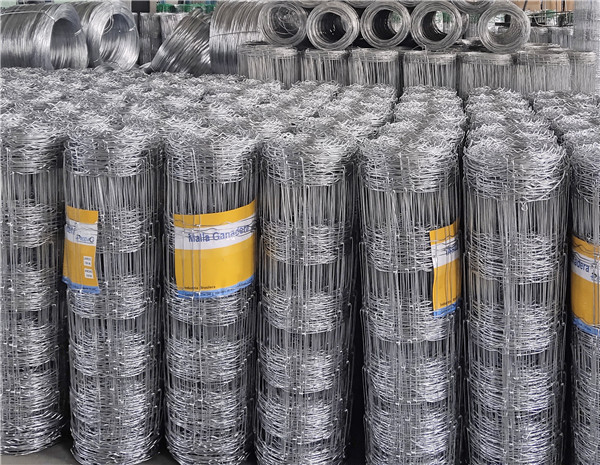

Packaging

0.9m Height Galvanized 10cm Vertical Wire Distance 100m Long Green color PVC hinge joint fence
