0.9m Height Galvanized 50mm Vertical Wire Distance 100m long hinge joint fence

Min Order Quantity: 50 rolls Sample: Free Application: Field fence can be used with stakes, wood timber, and other posts. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

Inquire Now Next Product

Detail Description

Field Fence

Field fence can be used with stakes, wood timber, and other posts. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.

● Material: High-quality high carbon steel wire, low carbon steel wire.

●Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m, and 1.8m.

● Knot type: Hinge joint type

● Surface treatment: hot-dipped galvanized, electro-galvanized.

● Main market: Malaysia, Australia, Peru, North America, and Afric

Specifications Chart:

No.	Item	Specification	The top and bottom wires diameter	The middle wires diameter	Roll diameter
1.	7/150/813/50	102+114+127+140+152+178	2.5	2.0	280
2.	8/150/813/50	89(75)+89+102+114+127+140+152	2.5	2.0	280
3.	8/150/902/50	89+102+114+127+140+152+178	2.5	2.0	280
4.	8/150/1016/50	102+114+127+140+152+178+203	2.5	2.0	280
5.	8/150/1143/50	114+127+140+152+178+203+229	2.5	2.0	280
6.	9/150/991/50	89(75)+89+102+114+127+140+152+178	2.5	2.0	280
7.	9/150/1245/50	102+114+127+140+152+178+203+229	2.5	2.0	280
8.	10/150/1194/50	89(75)+89+102+114+127+140+152+178+203	2.5	2.0	280
9.	10/150/1334/50	89+102+114+127+140+152+178+203+229	2.5	2.0	280
10.	11/150/1422/50	89(75)+89+102+114+127+140+152+178+203+229	2.5	2.0	280

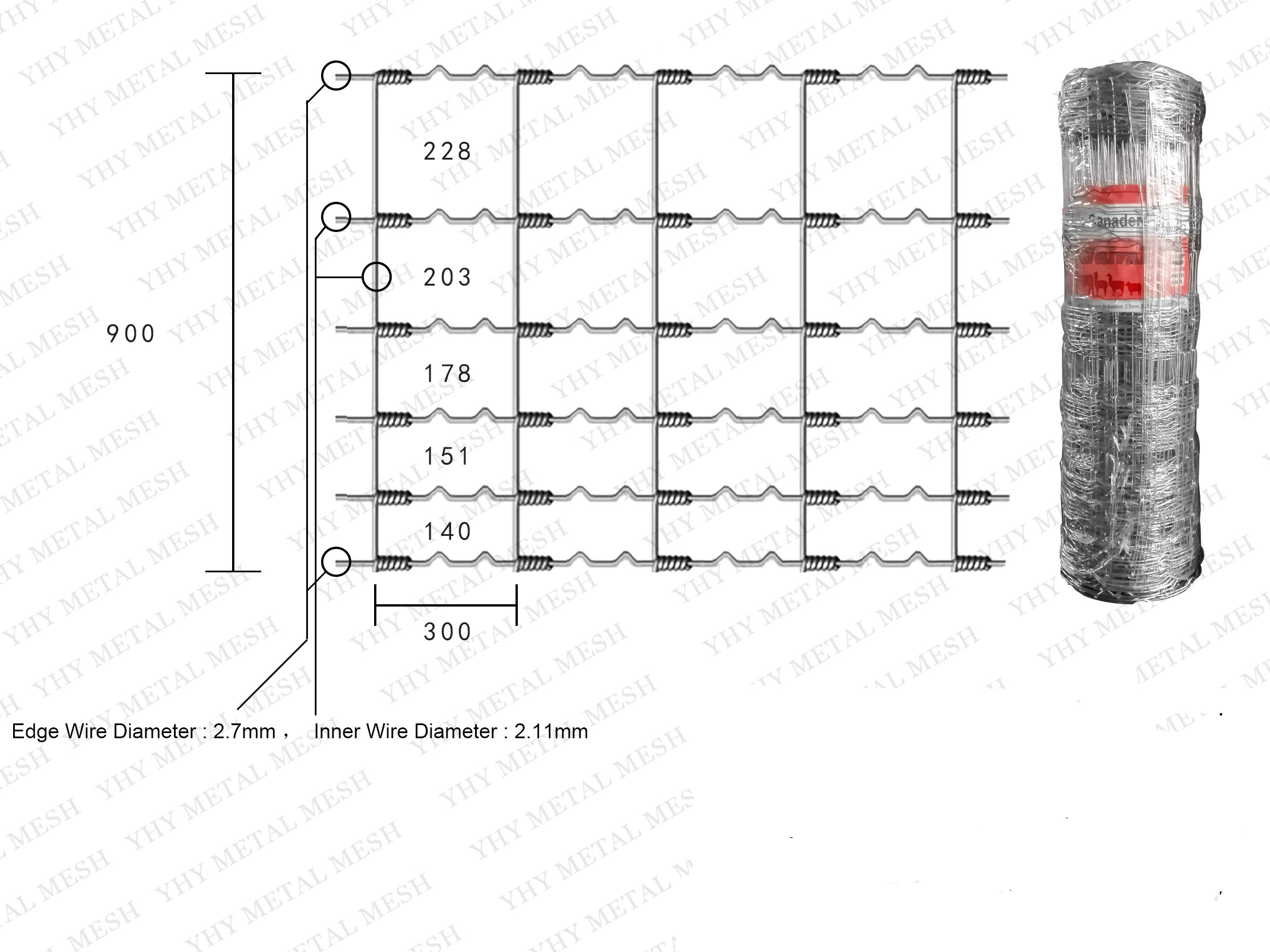

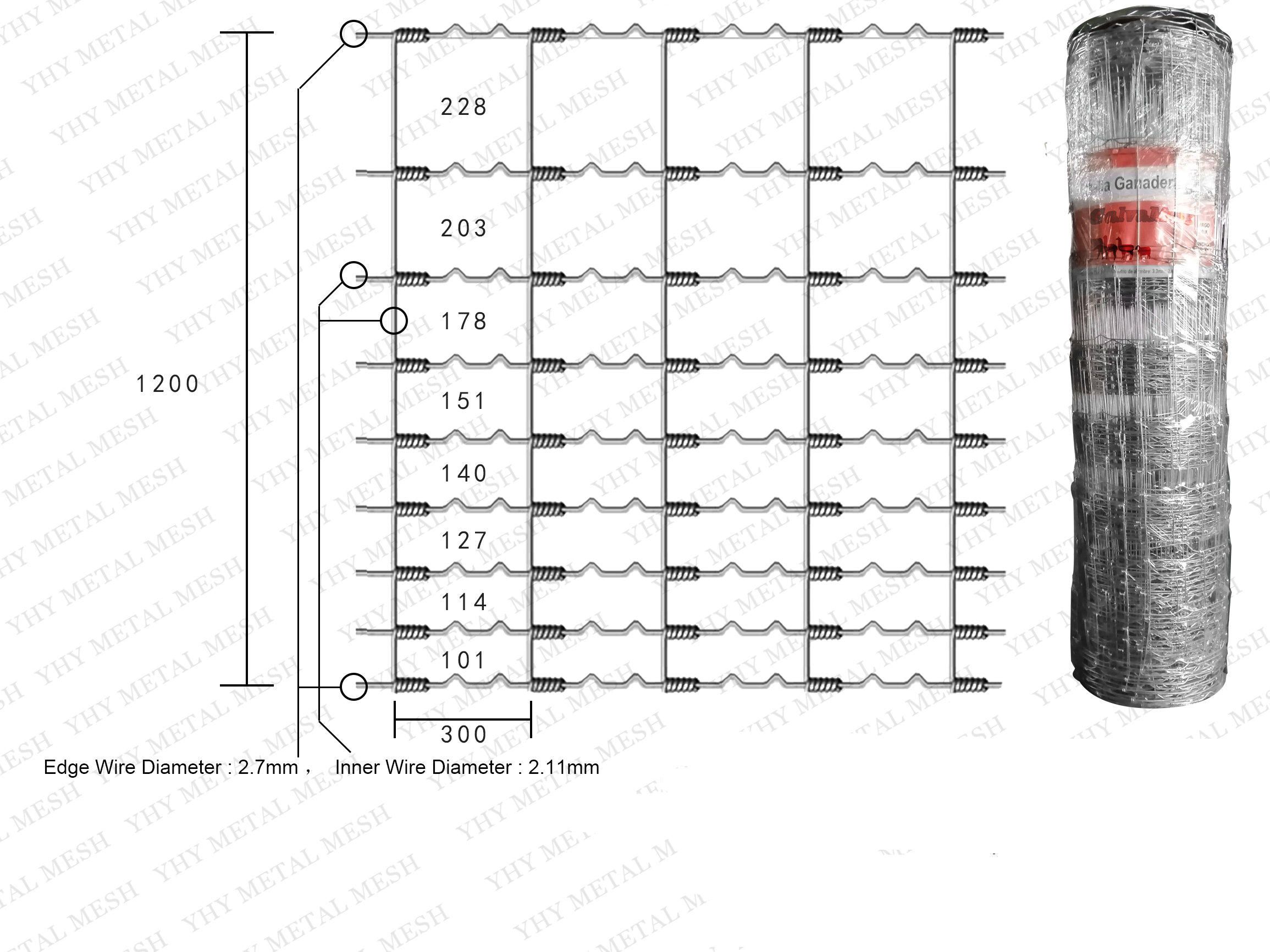

Note the item numbers: the first number means the number of wire of width; the second number means the distance of horizontal wires (mm); the third number means the height of mesh(mm); the fourth number means the length of mesh(m). we can also produce the mesh according to the customers' special requirements.

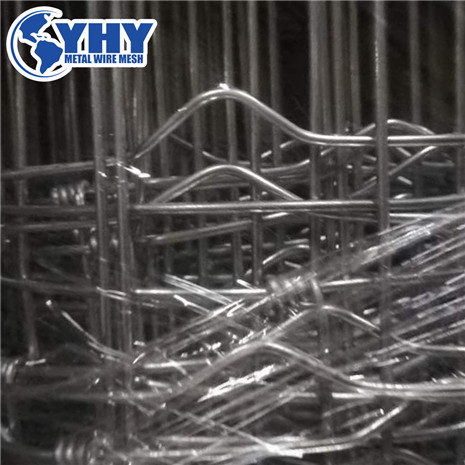

Knot types:

The hinge joint is an economical alternative to tight lock and caters for lower stock pressure applications such as sheep, lamb, goat and also conservation fencing.

The tight lock design feature ensures that a load of any impact will spread and dissipate of the full height of the fence and for some distance of either side.

Twisted edge wire makes the fence to be more tension strength

The addition of tension curves to line wires allow any impact load on the fence to spread along the line and stay wire.

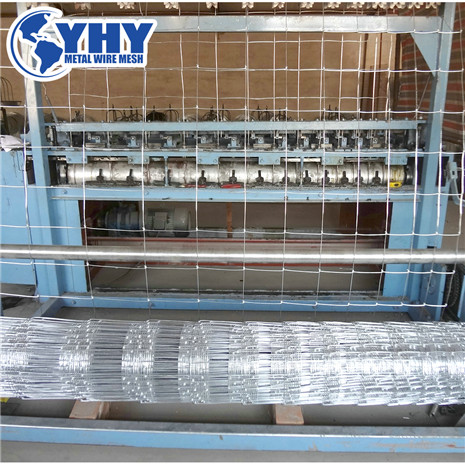

Production Processing Photo and Video...

Knowledge

0.9m Height Galvanized 100mm Vertical Wire Distance 100m long field fence

Packaging

Field Fence

Application
