Min. Order: 5 Ton Price: US $810-980 / Ton Supply Ability: 50000 Ton/Tons per Month, barbed wire Application: pasture boundaries, railways and highways. packaging: common handle, plastic handle, wooden spool

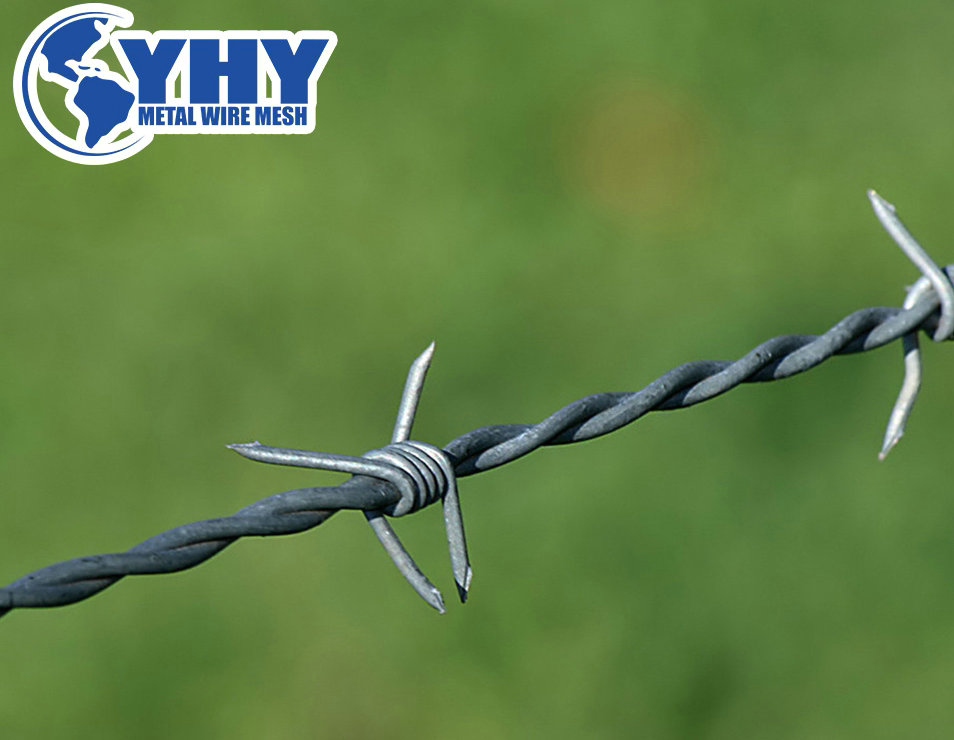

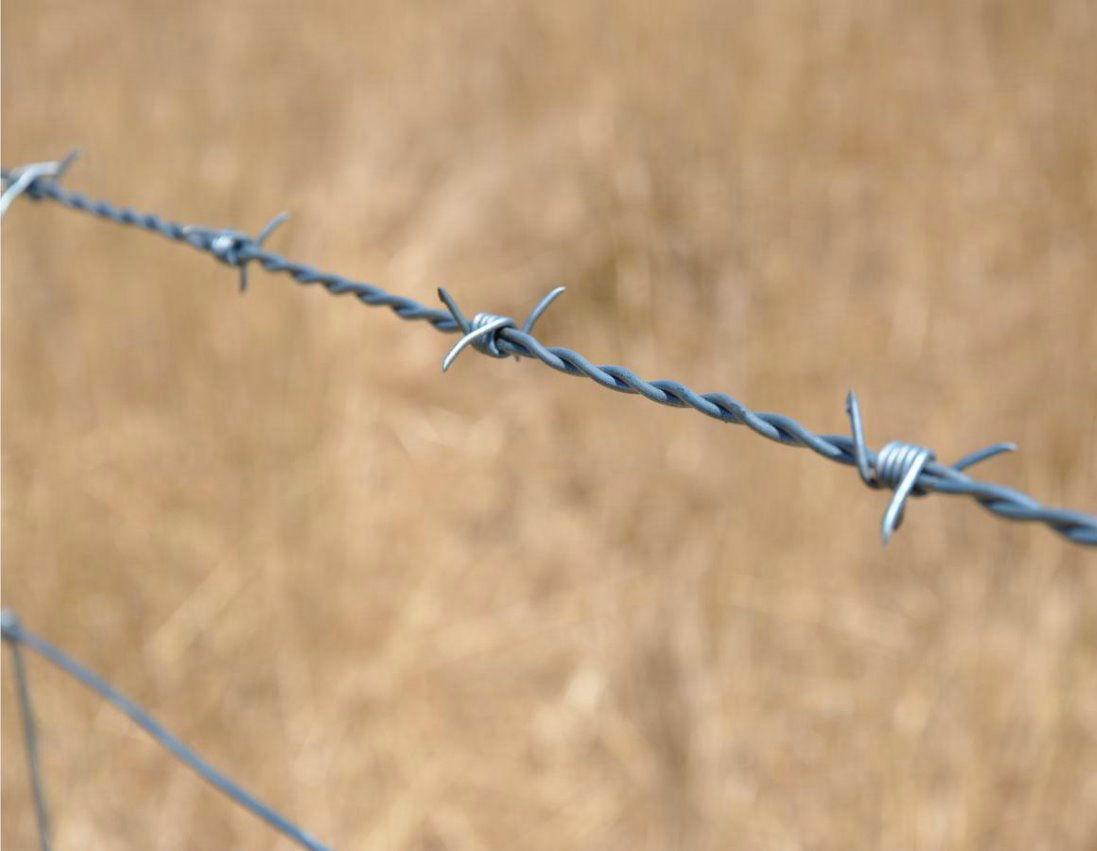

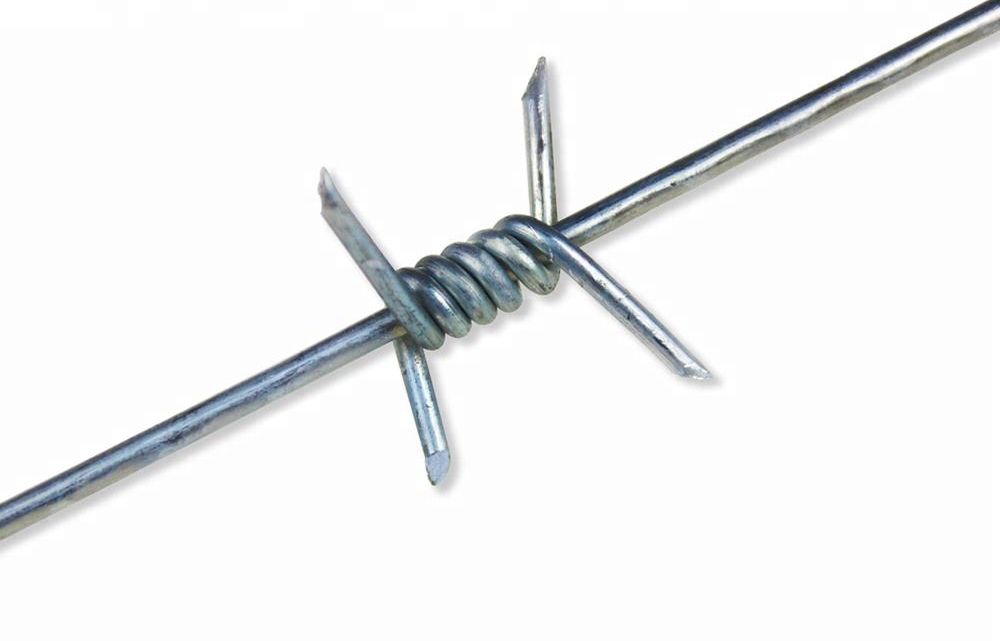

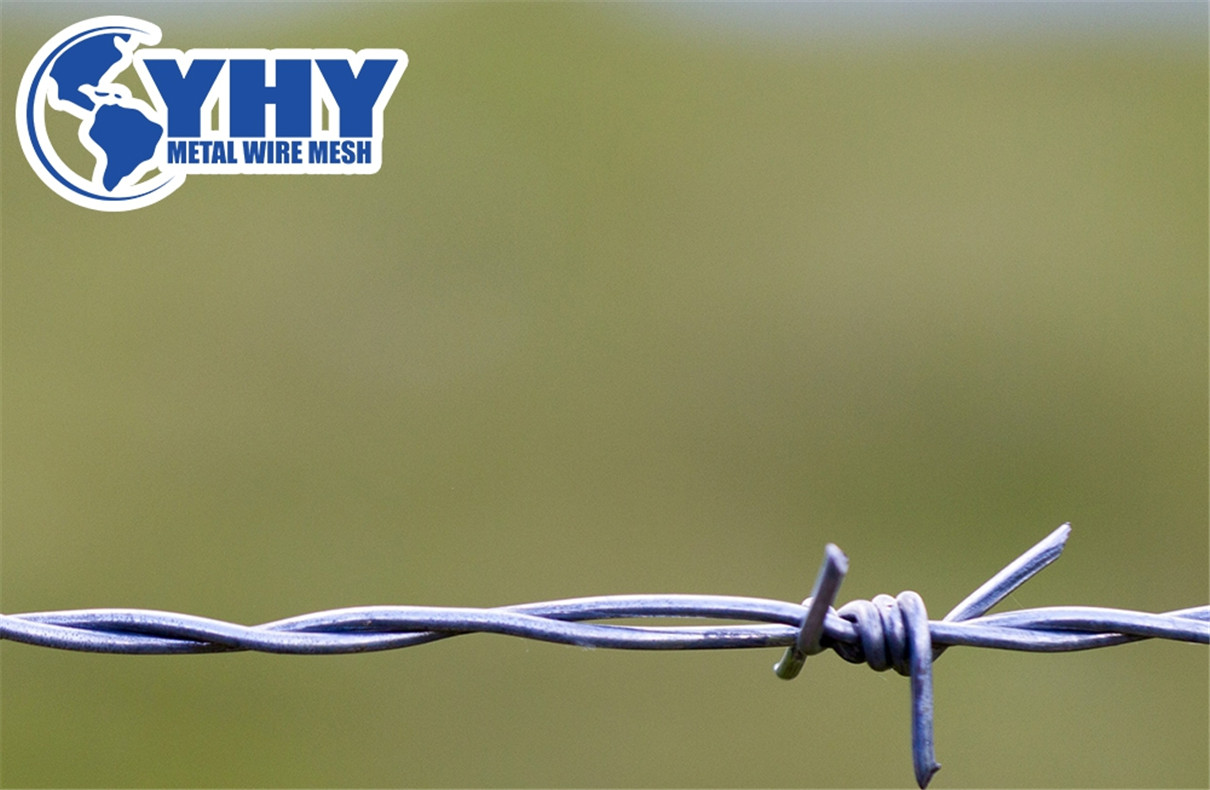

The barbed wire consists of barb wire and line wire. The wire diameter of the line wire is larger. The line wire can have one wire or two wires. The barb wires are braided with a system of constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharpened spikes are protective elements of barbed wire.

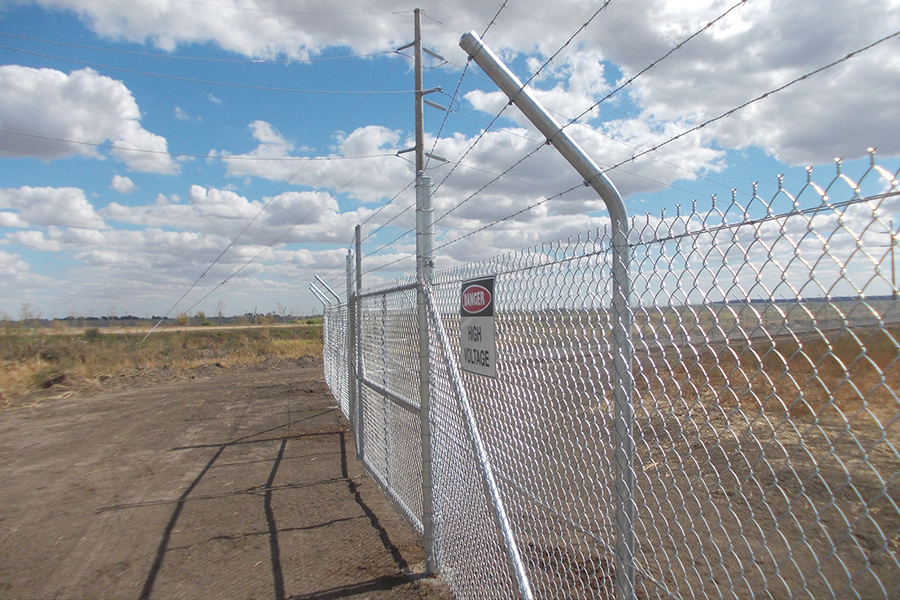

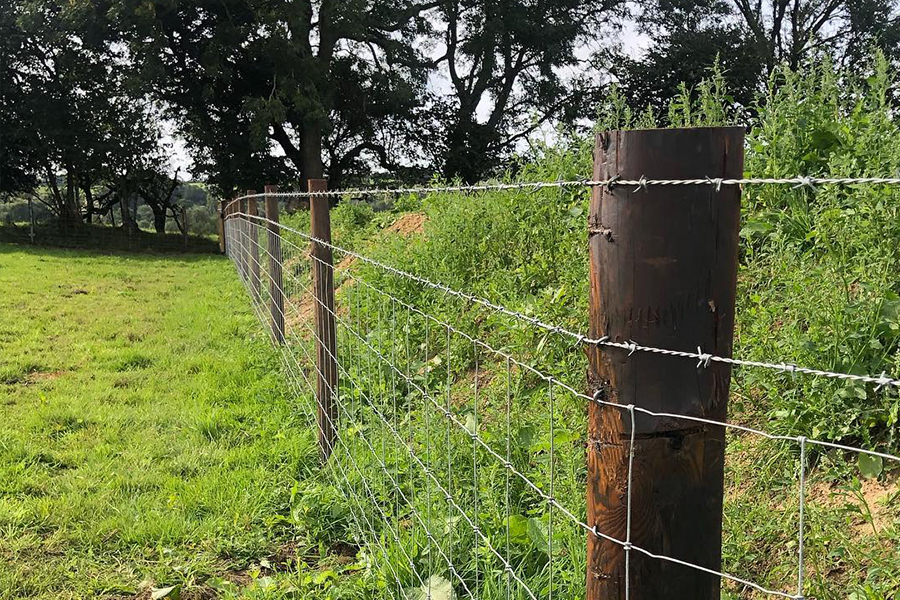

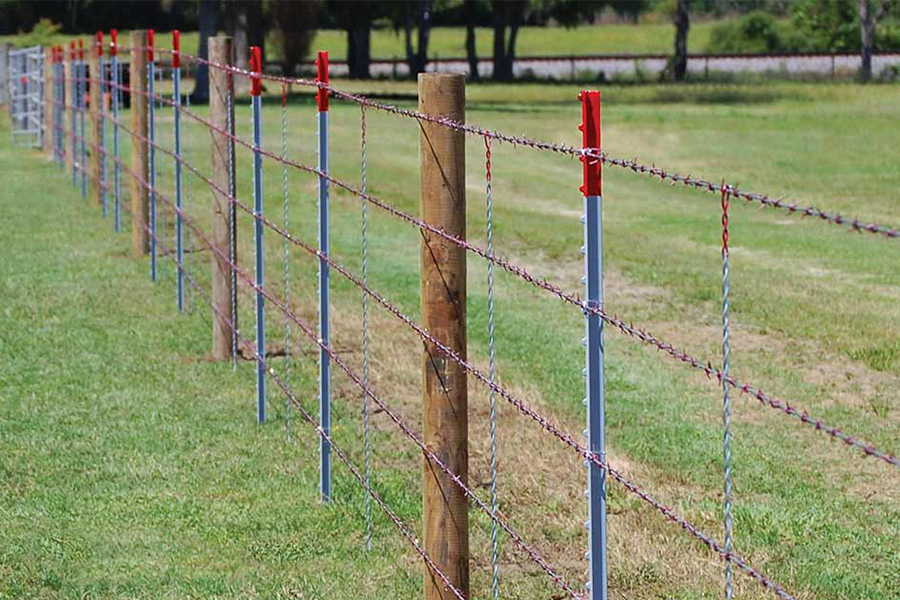

Barbed wire is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of the fence or in rows as an independent barrier. To prevent corrosion, barbed wire has a zinc coating.
Product name: barbed wire
Surface treatment: hot-dip galvanized,electro-galvanized, high galvanized
Barb wire distance:7.5cm—15cm
Barb Length:1.5cm
Line wire type: reverse twist barbs

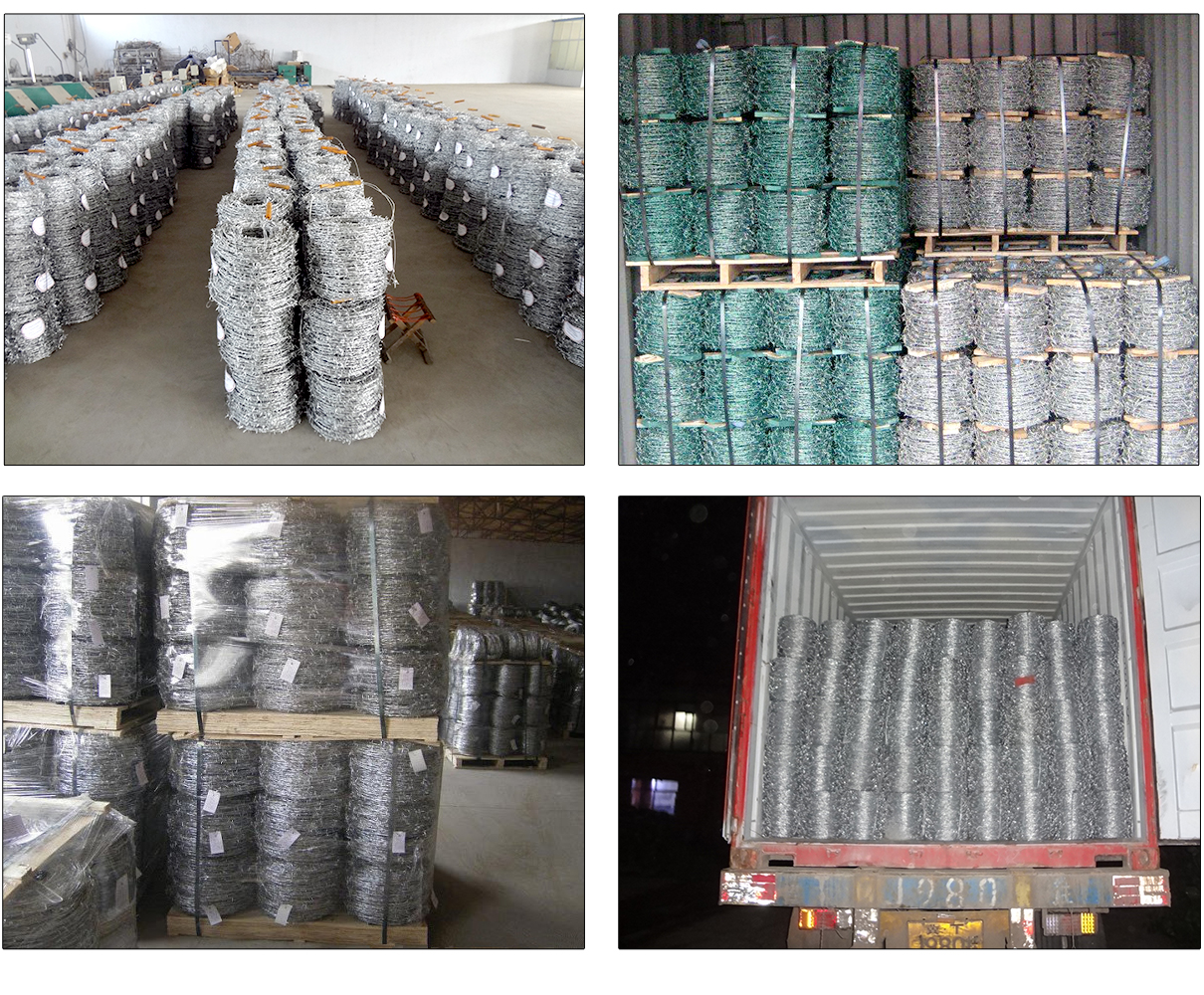

Package: plastic handle, wooden spool, plastic handle
Length:100m—250m
Minimum order:5 tons
Feature:
1. The installation is simple.
2.No one can climb this barbed wire fences.
3. The galvanized wires prevent corrosion.
4. Razor blade sharp.
5. The surface treatment has four types: electro galvanized, hot-dipped galvanized, heavy galvanized, PVC.
6.Singe twist and common twist
Type | Wire Gauge (SWG) | Barb Distance (cm) /td> | Barb Length (cm) | |
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# /td> | 7.5-15 | 1.5-3 | |
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11#-20# | BWG8#-17# | |||
SWG11#-20# | SWG8#-17# | |||
PVC PE coating thickness: 0.4mm-0.6mm; different colors or lengths are available at customer's requests. |

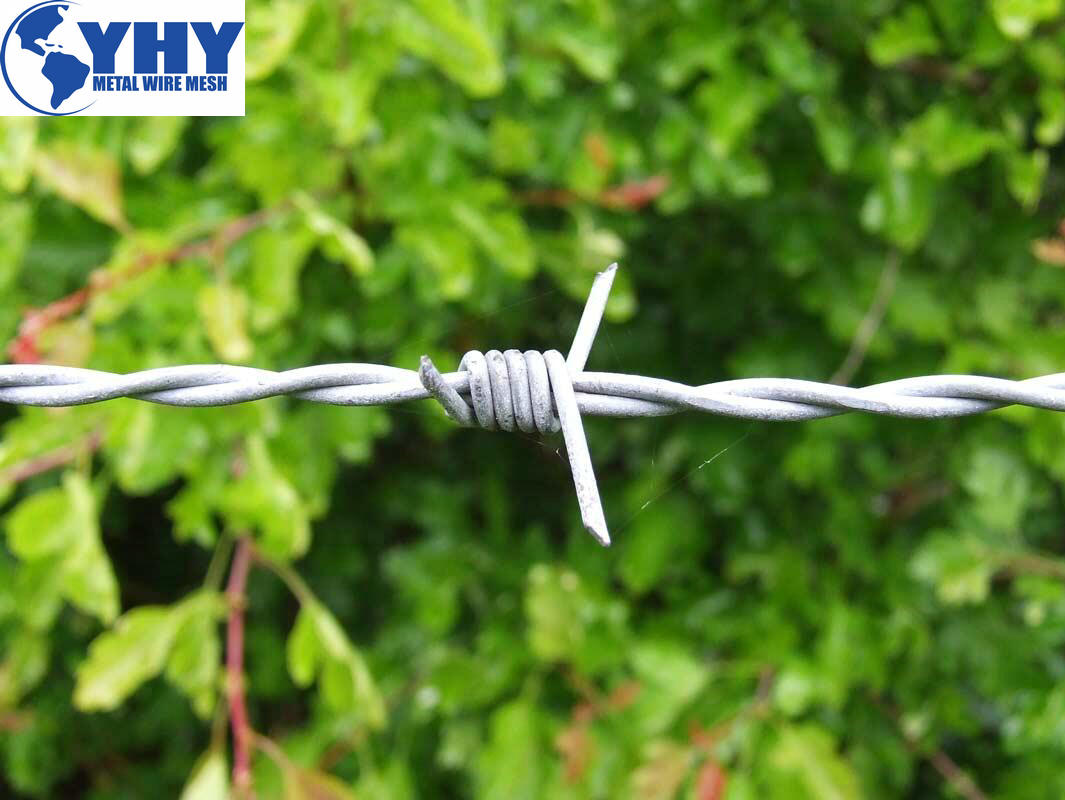

single twist barbs

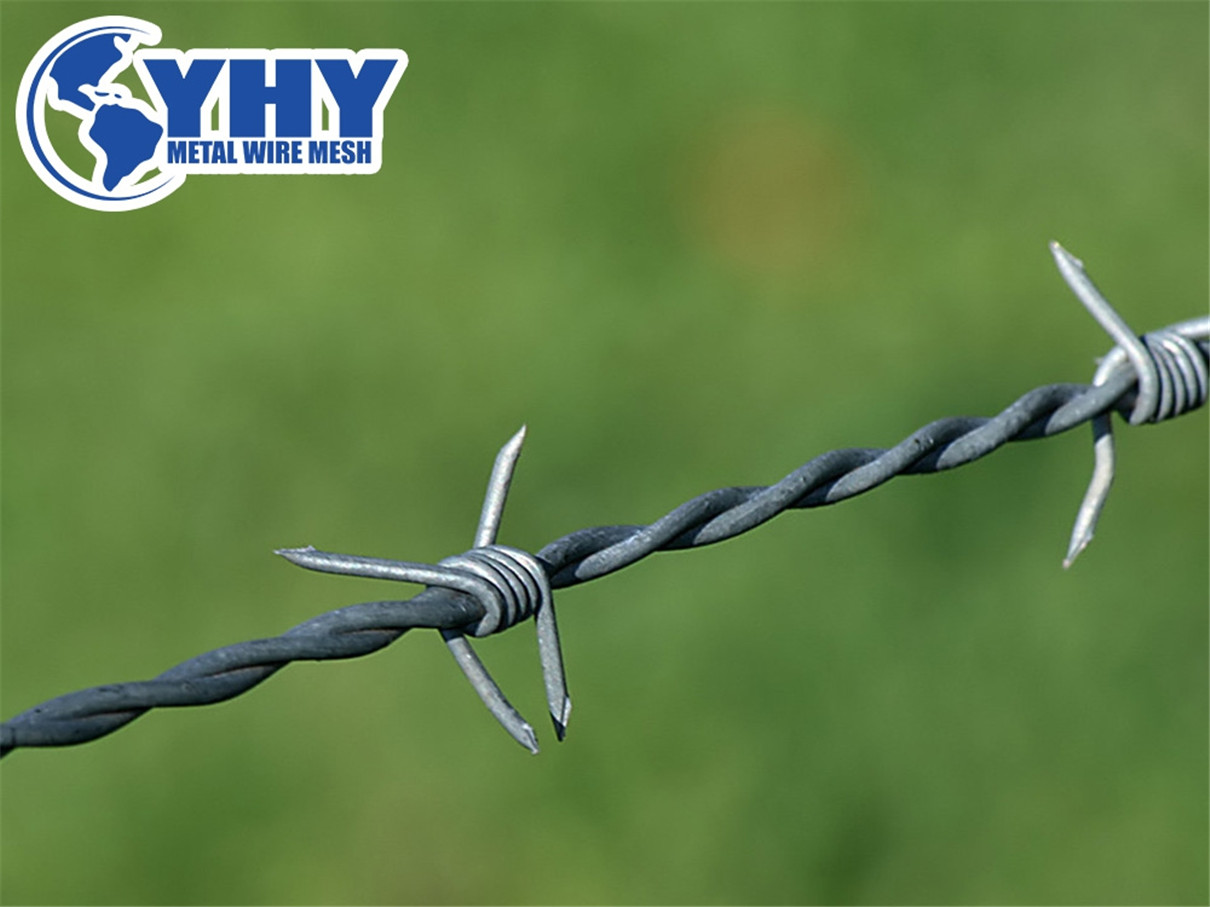

common twist barbs

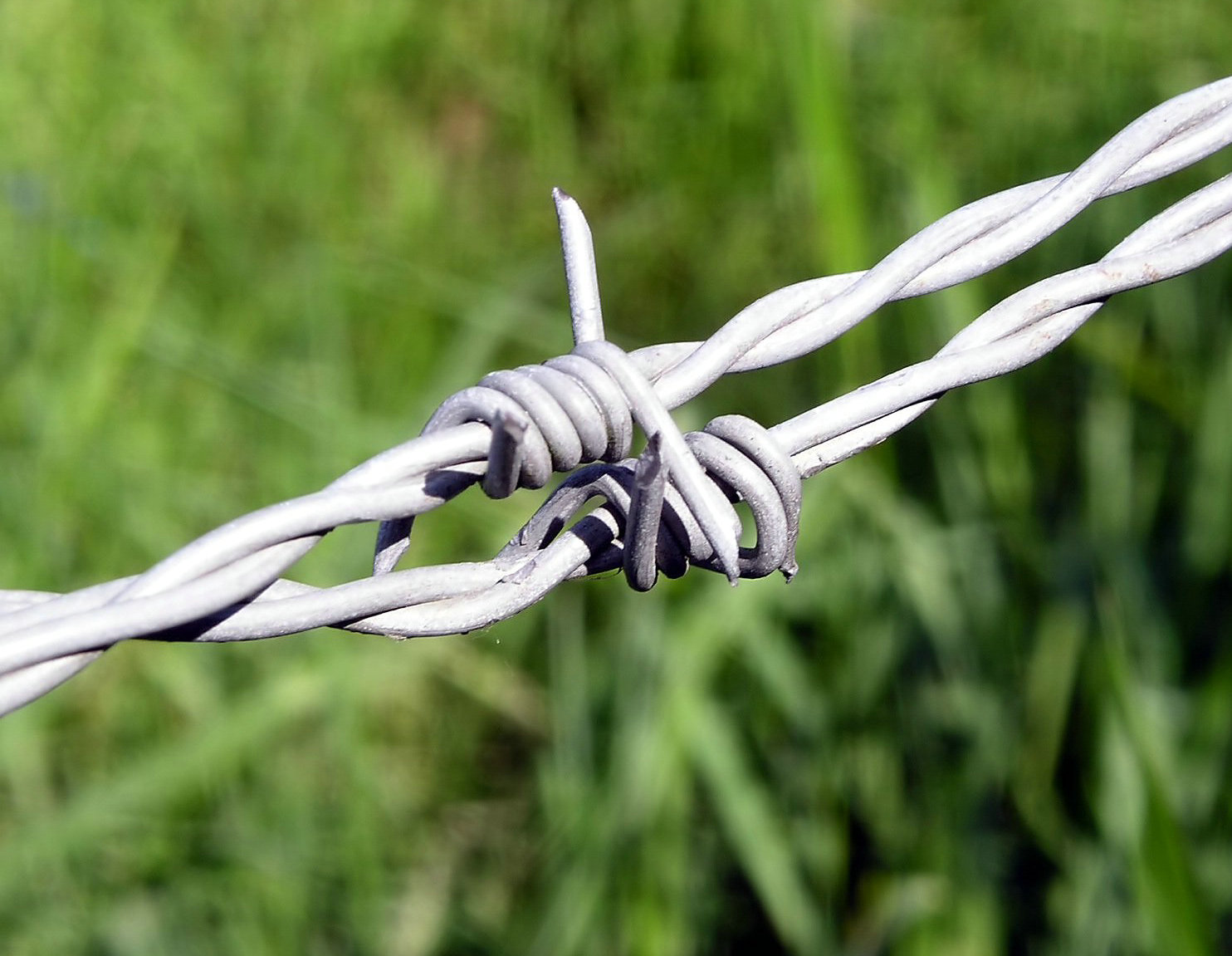

reverse twist barbs
