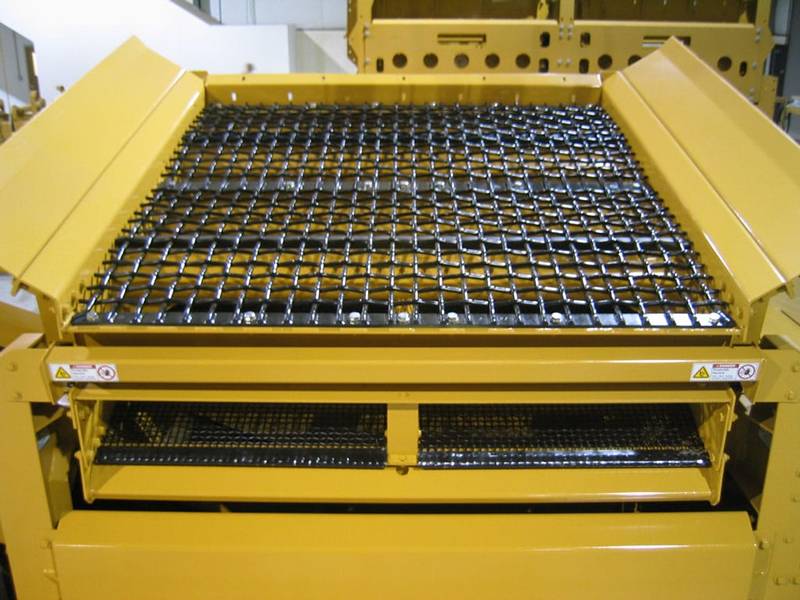

Steel Screen Mesh for Crusher Machine, Stone Crusher Screen Mesh Material: black wire, spring steel wire, manganese steel wire and stainless steel wire. MOQ: 100PCS Price: $32.5-$142.8 Sample: free Application: Crusher Machine Screen Mesh
None

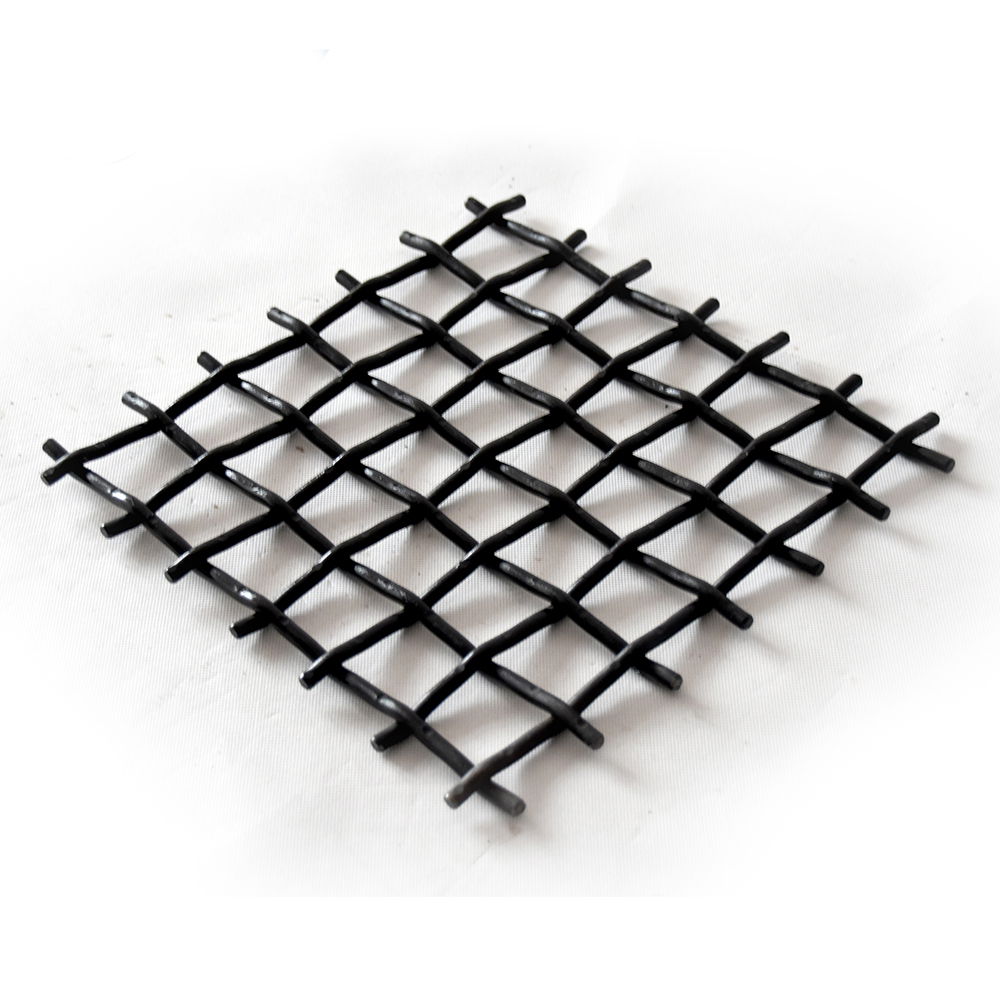

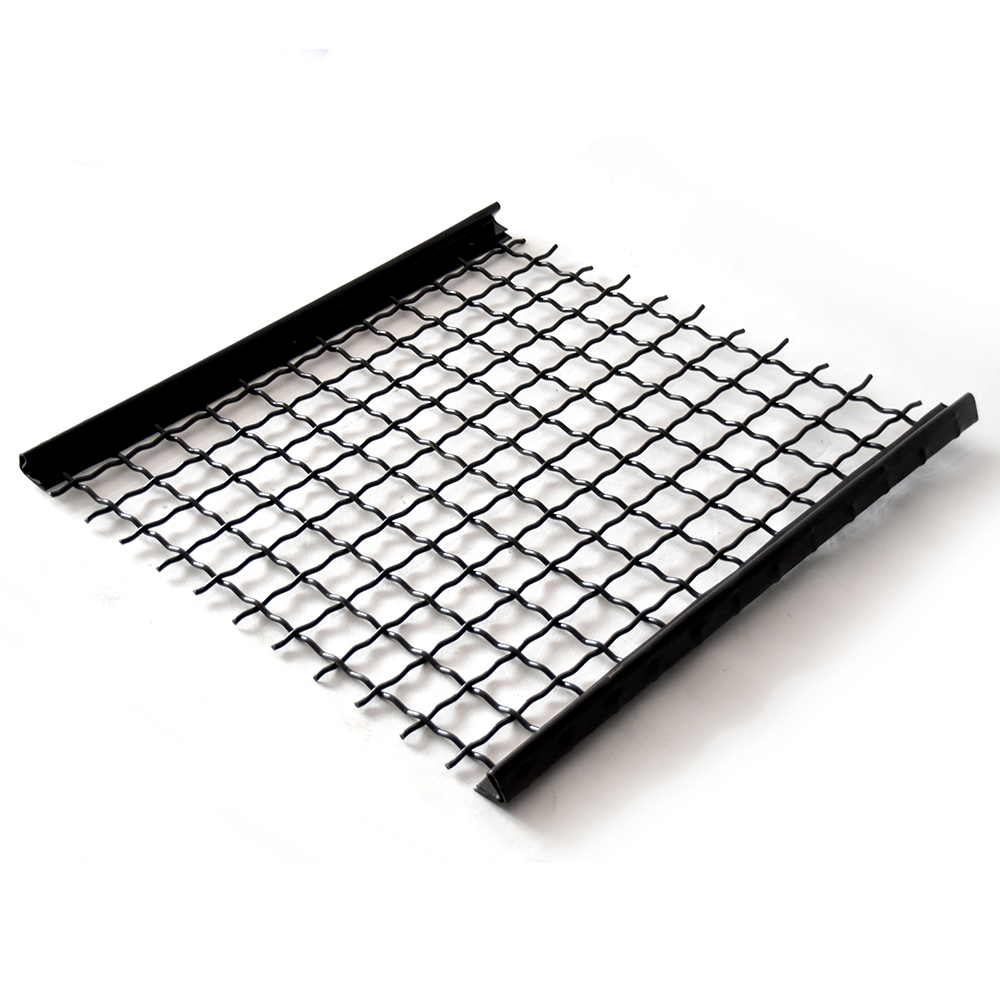

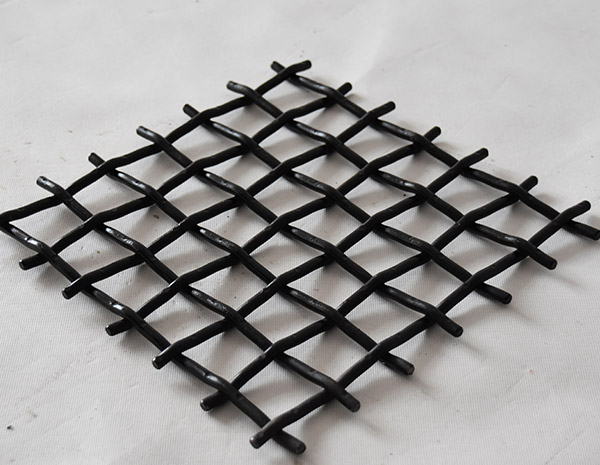

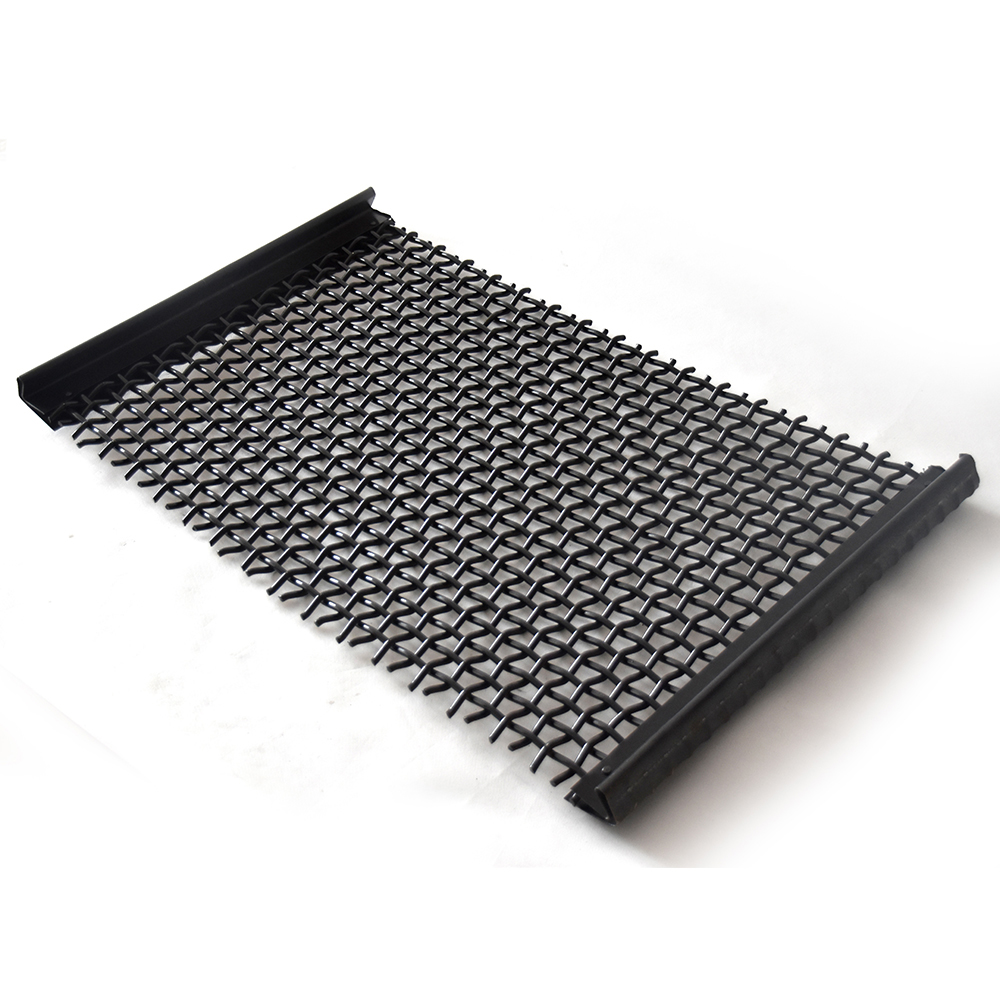

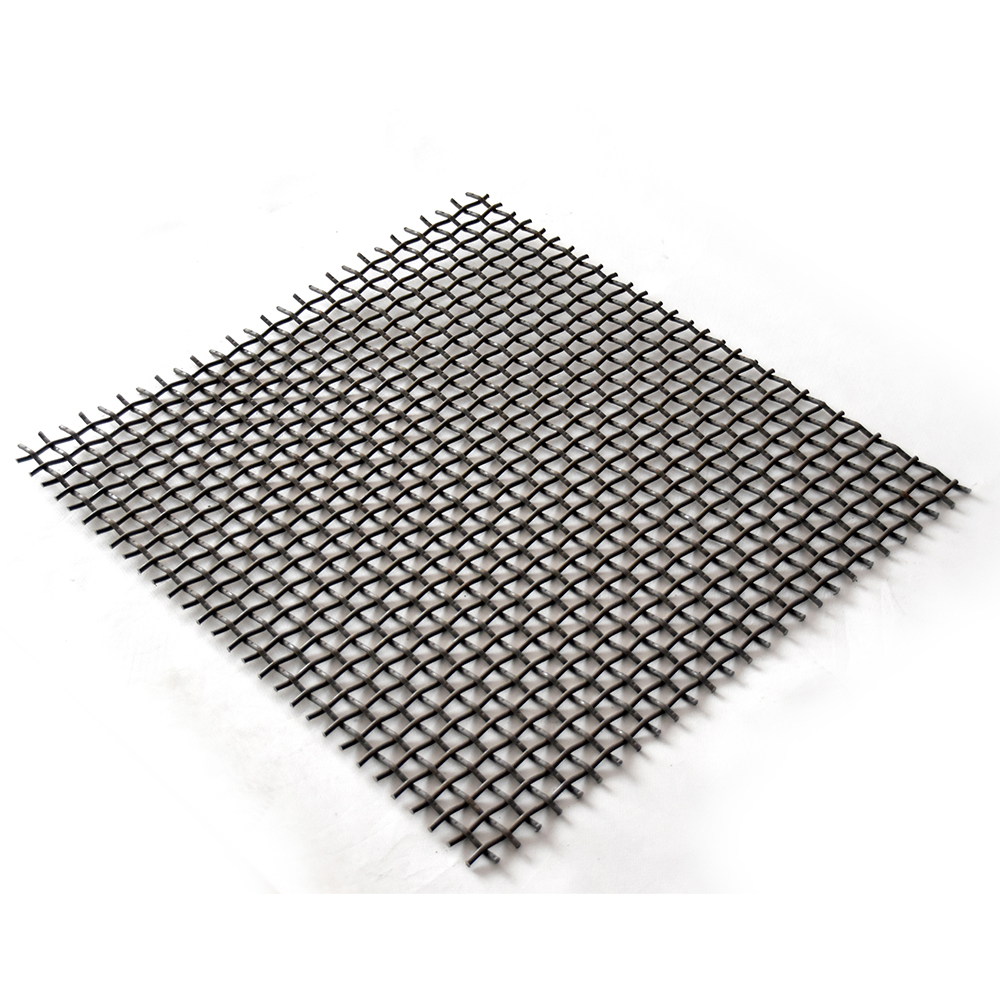

Steel Screen Mesh for Crusher Machine, Stone Crusher Screen Mesh
Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.

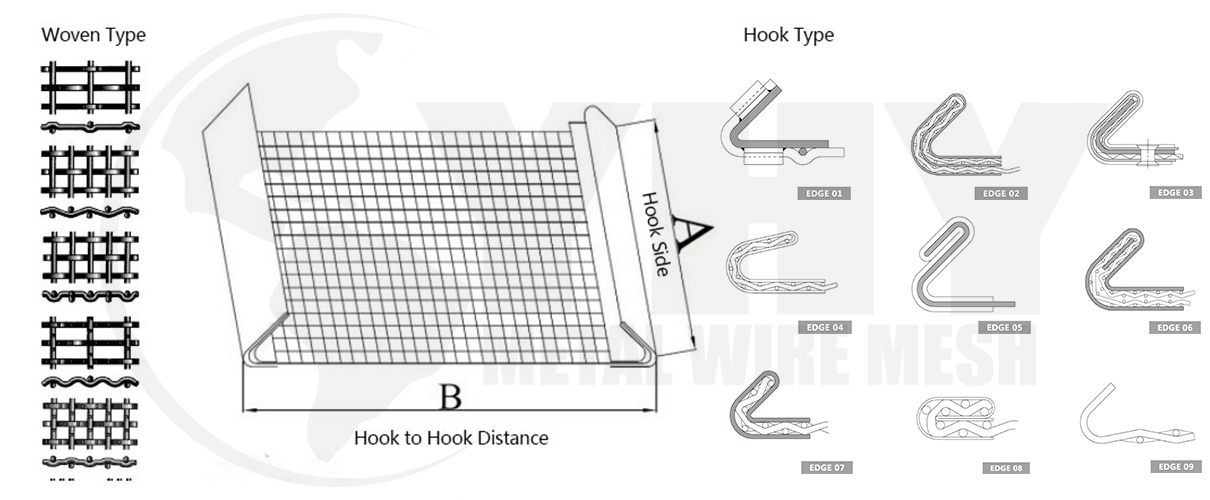

Hole type: square, rectangular and long slot. Inherit'>4. Feature: Longer life, High adhesion, excellent efficiency of mechanical splice.
| diameter (mm) | opening (mm) | mesh | weight（kg/m2） | length (M) | weight (Kg) |
| 12 | 60 | 0.35 | 25.9 | 30 | 777 |
| 10 | 60 | 0.36 | 18.5 | 30 | 555 |
| 9 | 60 | 0.36 | 14.9 | 30 | 446 |
| 8 | 60 | 0.37 | 12.19 | 30 | 365 |
| 7 | 50 | 0.44 | 11.13 | 30 | 334 |
| 6 | 50 | 0.45 | 8.32 | 30 | 250 |
| 5 | 40 | 0.56 | 7.2 | 30 | 215 |
| 4 | 40 | 0.58 | 4.73 | 30 | 142 |
| 4 | 30 | 0.75 | 6.07 | 30 | 182 |
| 4 | 25 | 0.87 | 7.1 | 30 | 213 |
| 3.2 | 25 | 0.87 | 4.7 | 30 | 141 |
| 3.2 | 20 | 1.1 | 5.63 | 30 | 169 |
| 2.6 | 20 | 1.12 | 3.87 | 30 | 116 |
| 2.6 | 18 | 1.23 | 4.23 | 30 | 127 |
| 2.6 | 15 | 1.44 | 5.77 | 30 | 173 |
| 2 | 15 | 1.49 | 3.06 | 30 | 92 |
| 2 | 12 | 1.8 | 3.67 | 30 | 110 |
| 2 | 10 | 2.12 | 4.23 | 30 | 127 |
| 2 | 8 | 2.54 | 5.17 | 30 | 155 |
| 1.8 | 7 | 3 | 4.96 | 30 | 149 |
| 1.8 | 6 | 3.25 | 5.36 | 30 | 161 |
| 1.6 | 7 | 3 | 3.9 | 30 | 117 |
| 1.6 | 6 | 3.35 | 4.37 | 30 | 131 |
| 1.6 | 5 | 3.85 | 5 | 30 | 150 |
| 1.6 | 4 | 4.5 | 5.87 | 30 | 176 |
| 1.6 | 3 | 5.5 | 7.17 | 30 | 215 |
| 1.4 | 6 | 3.5 | 3.5 | 30 | 105 |
| 1.4 | 5 | 4 | 4 | 30 | 120 |
| 1.4 | 4 | 4.7 | 4.67 | 30 | 140 |
| 1.2 | 8 | 2.7 | 1.97 | 30 | 59 |
| 1.2 | 7 | 3.1 | 2.26 | 30 | 68 |
| 1.2 | 6 | 3.5 | 2.57 | 30 | 77 |

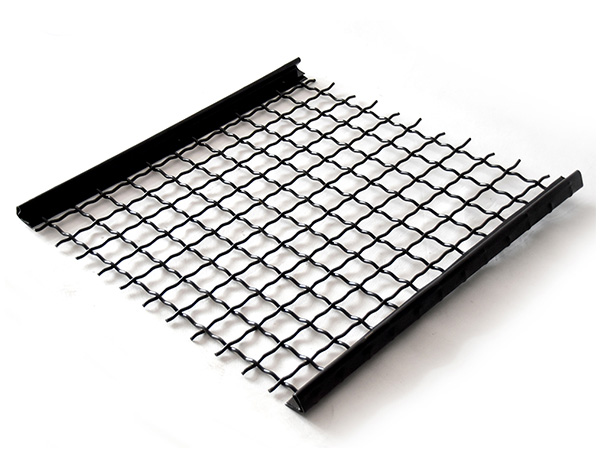

65Mn scree mesh for stons

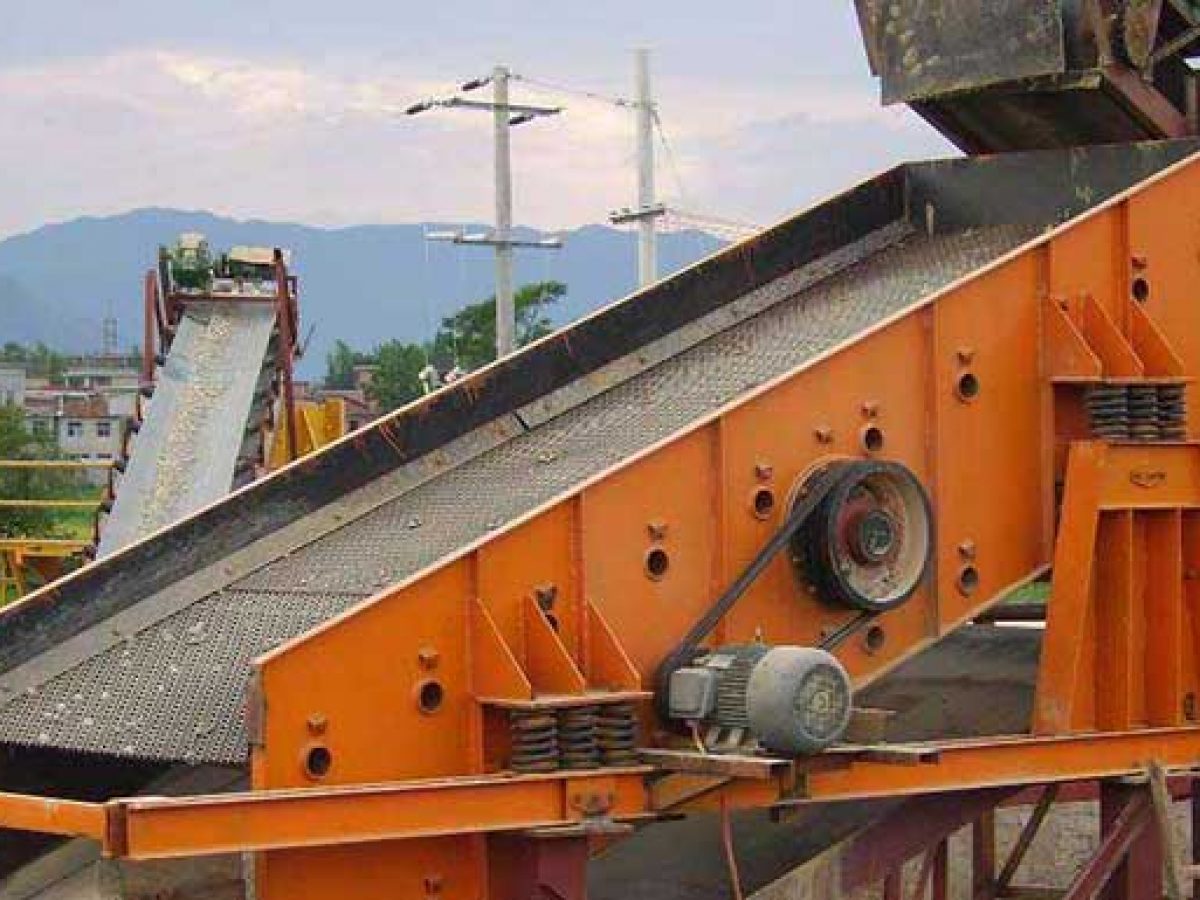

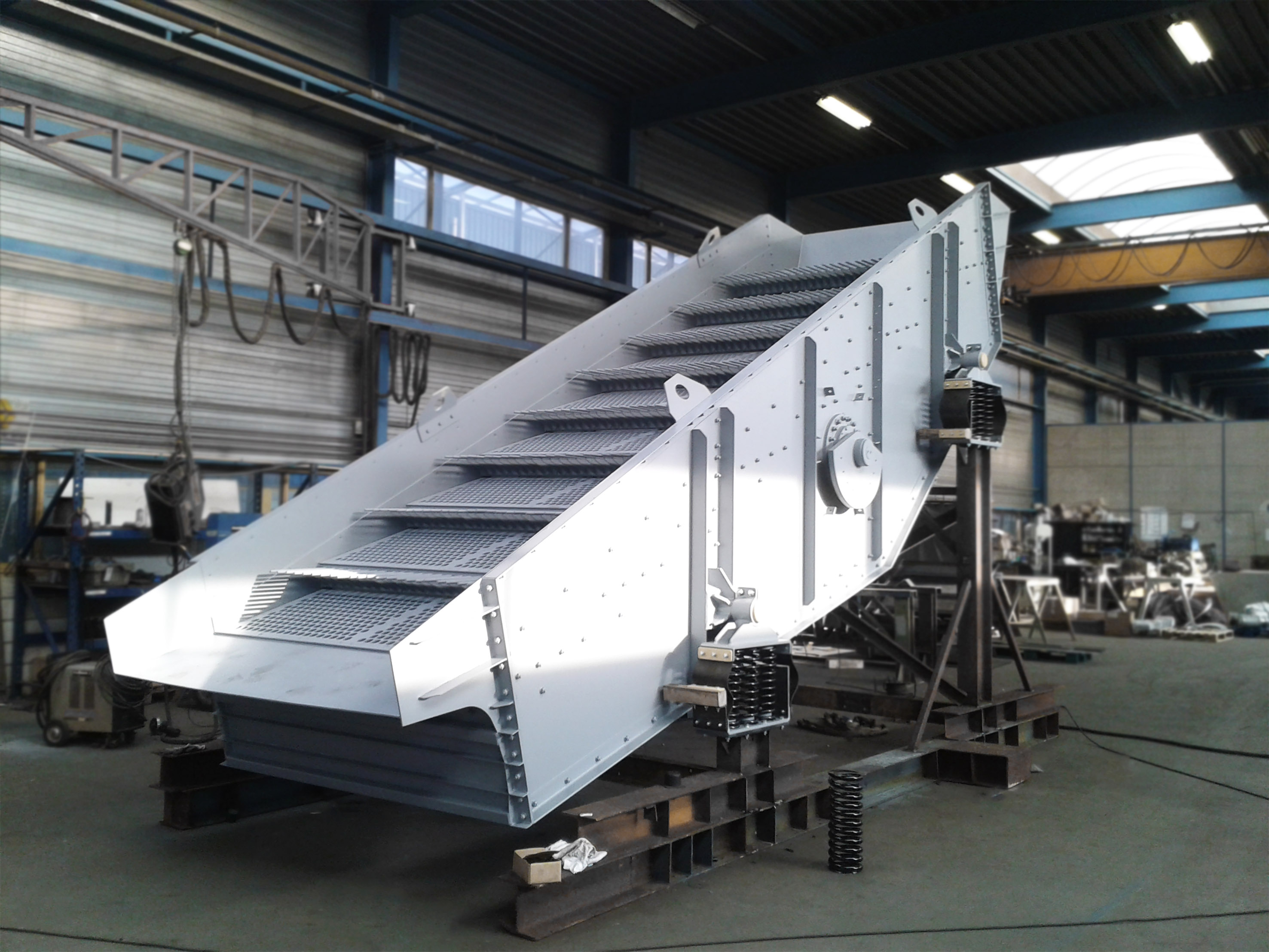

Sand vibrating screen for construction
Mine screen

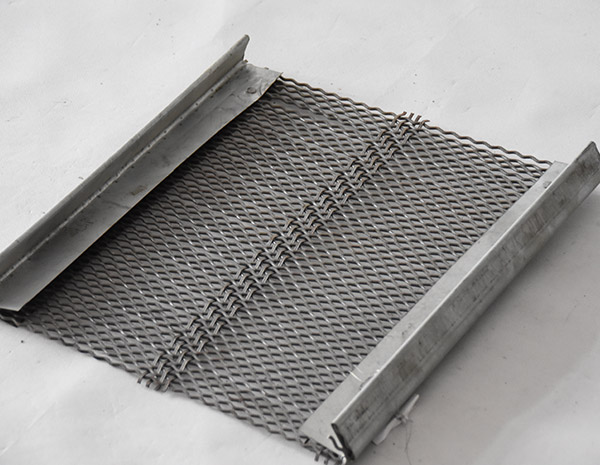

square screen mesh
