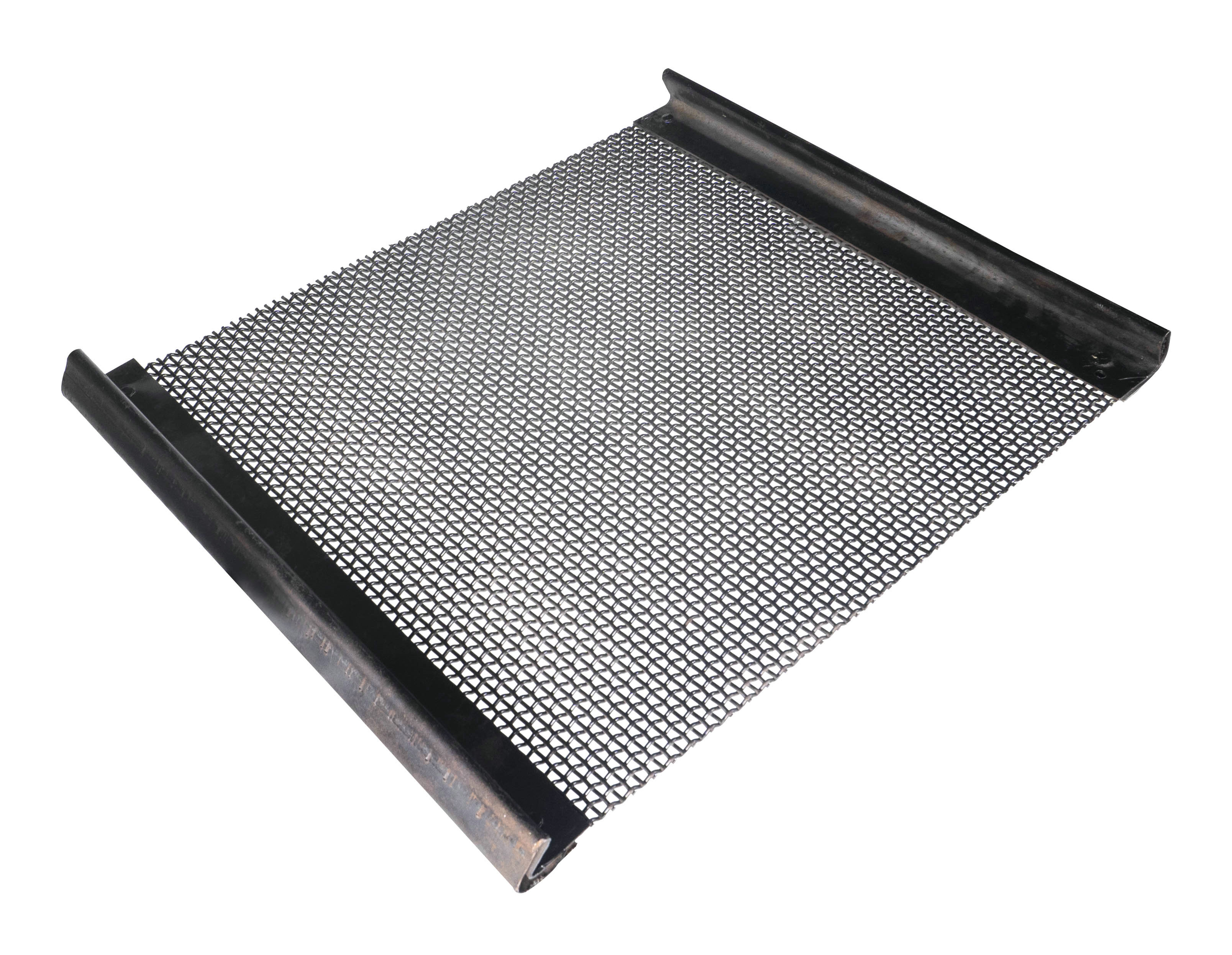

High Strength And Not Easily Deformed Crimped Woven Wire Mesh Sheet

Woven wire vibrating screen is also called quarry screen mesh or stone crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.

Inquire Now Next Product

Detail Description

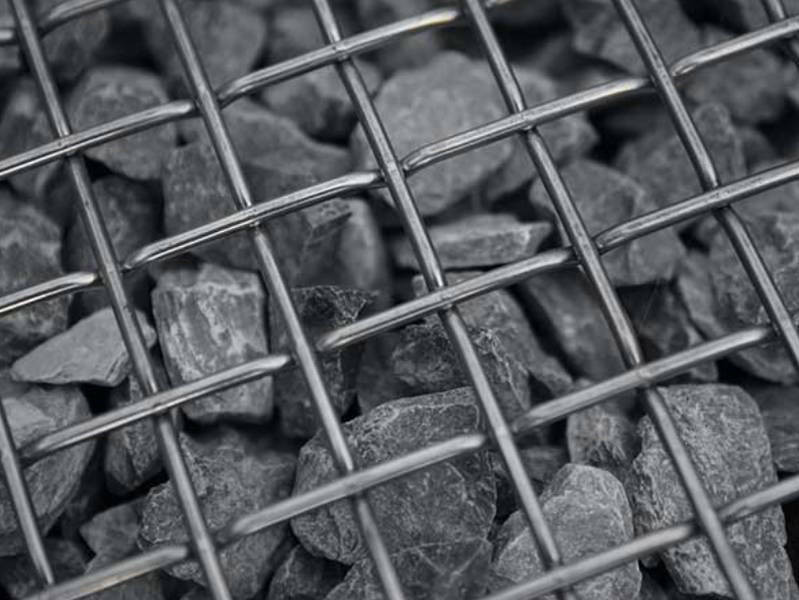

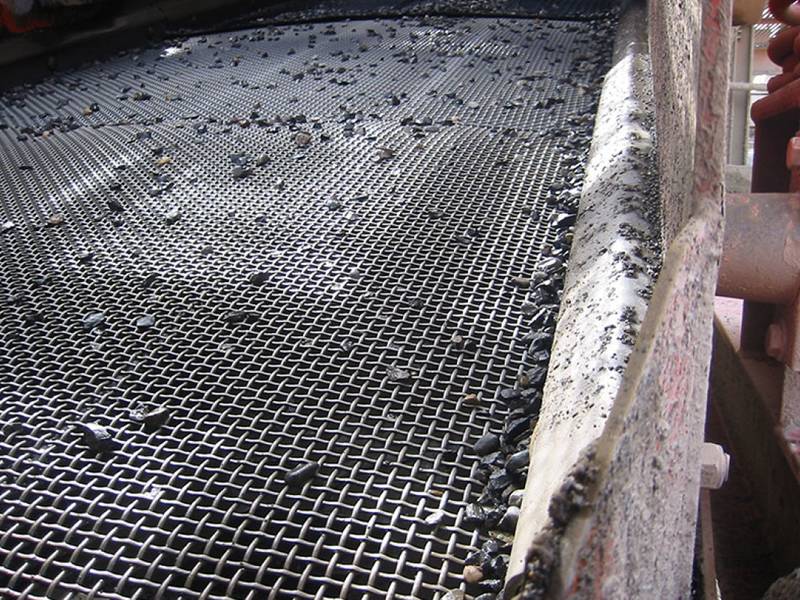

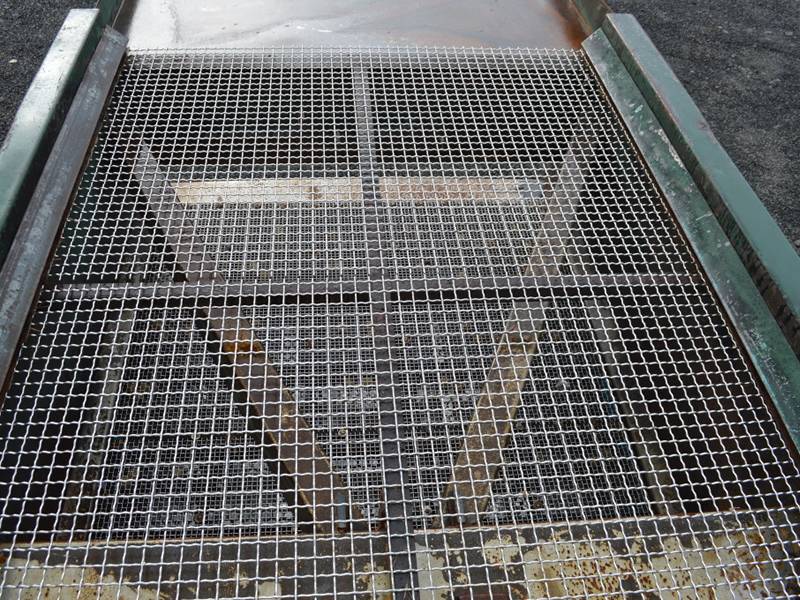

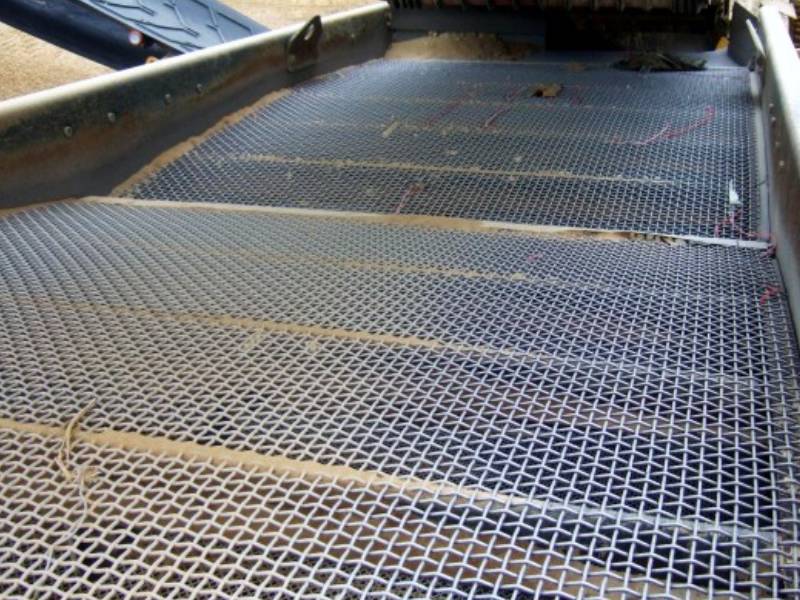

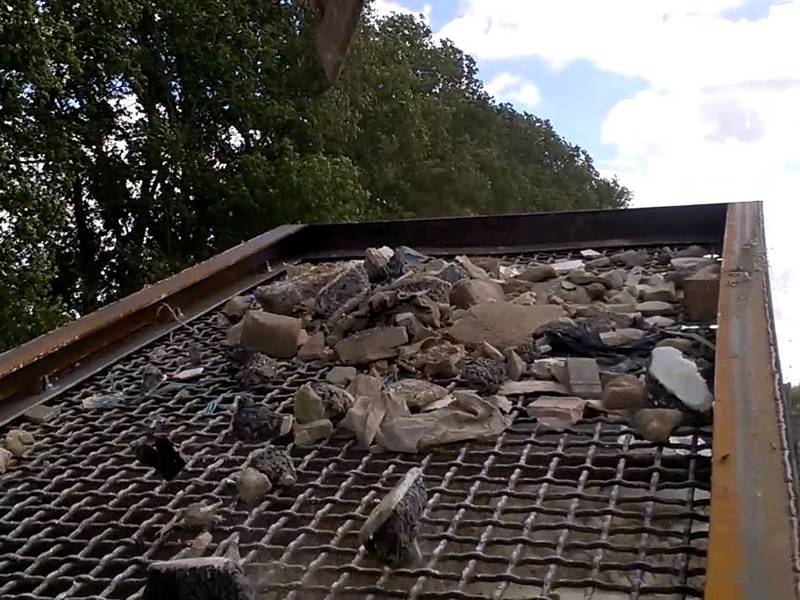

Woven wire vibrating screen is also called quarry screen mesh or stone crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. The high-quality raw materials make woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on. With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

Material: High tensile spring steel, manganese steel, High carbon and medium carbon steel wire, black wire, and stainless steel wire.

Wire diameter: 0.71–14 mm.

Opening size: 1–110 mm.

Surface treatment: Galvanized before weave and galvanized after weave, painted.

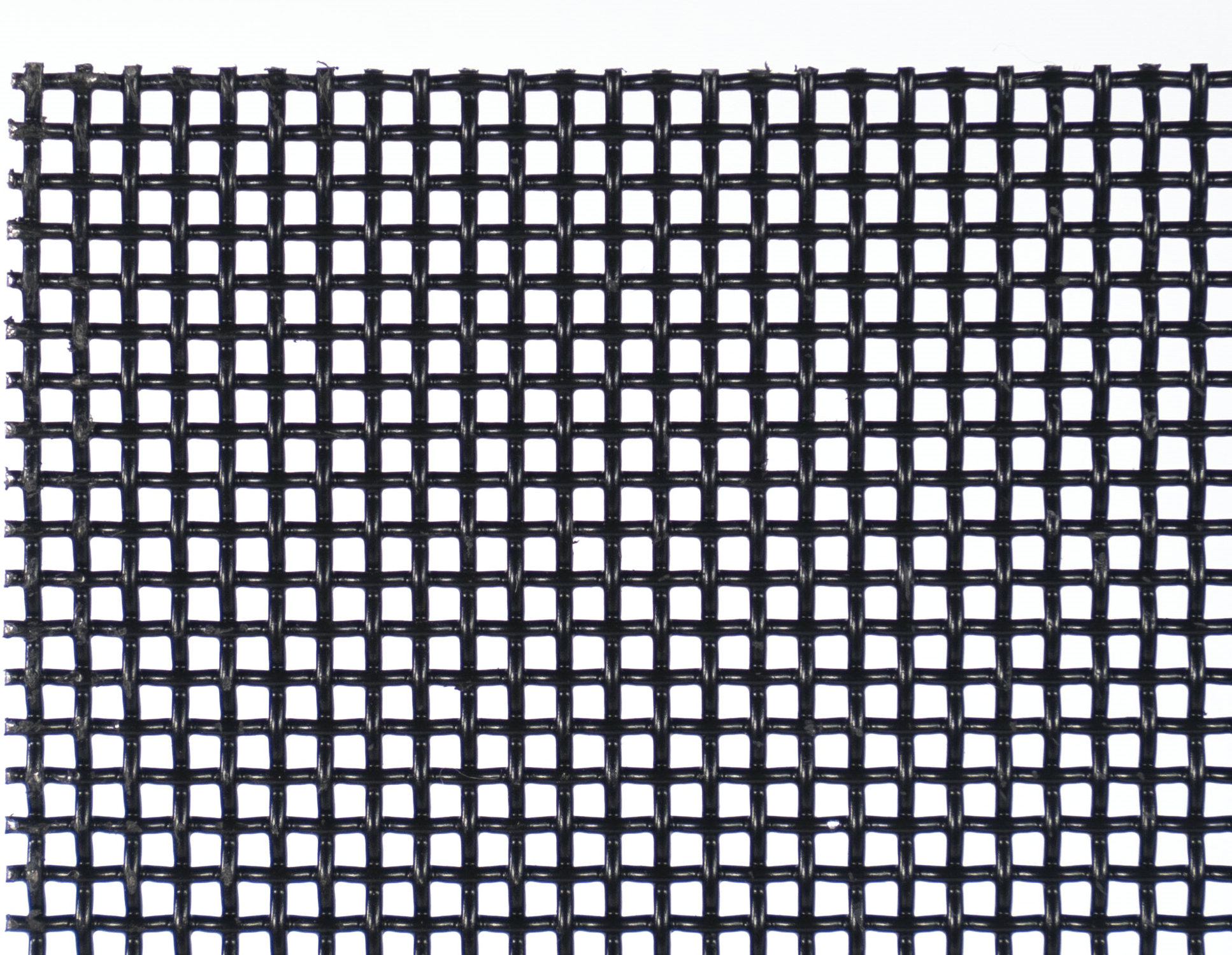

Hole type: Square mesh, rectangular mesh.

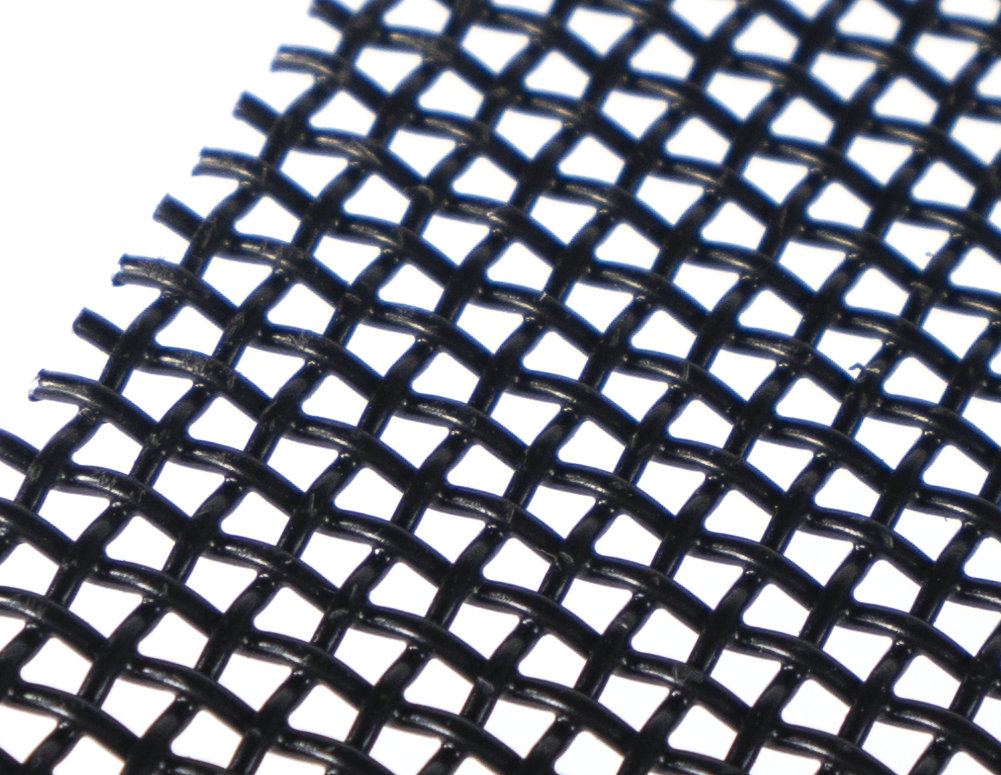

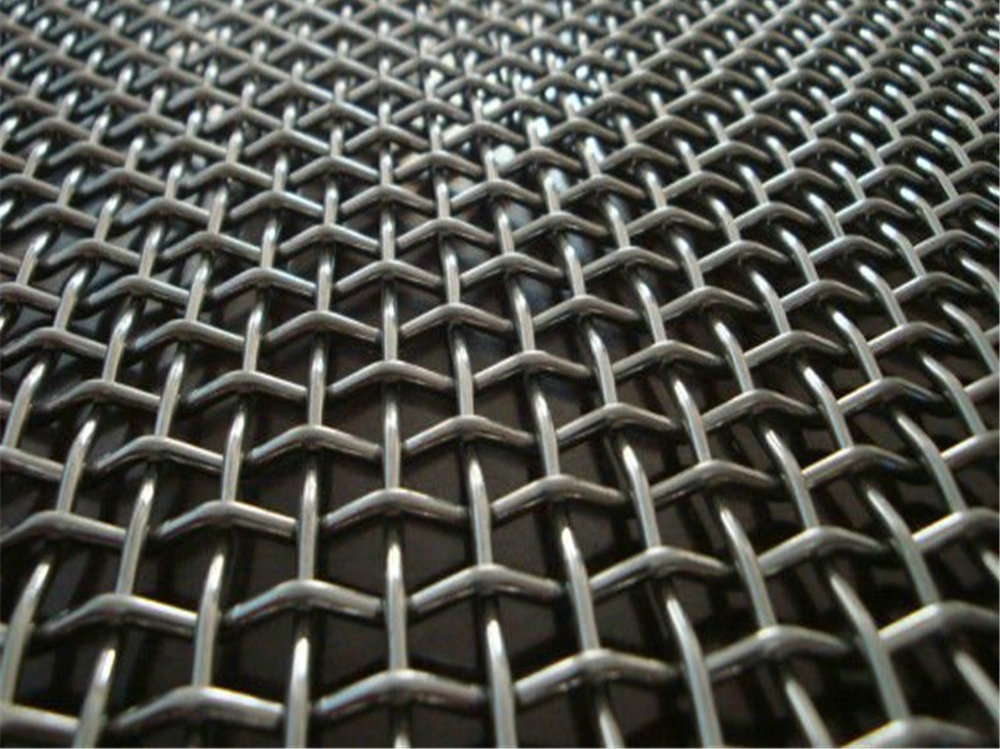

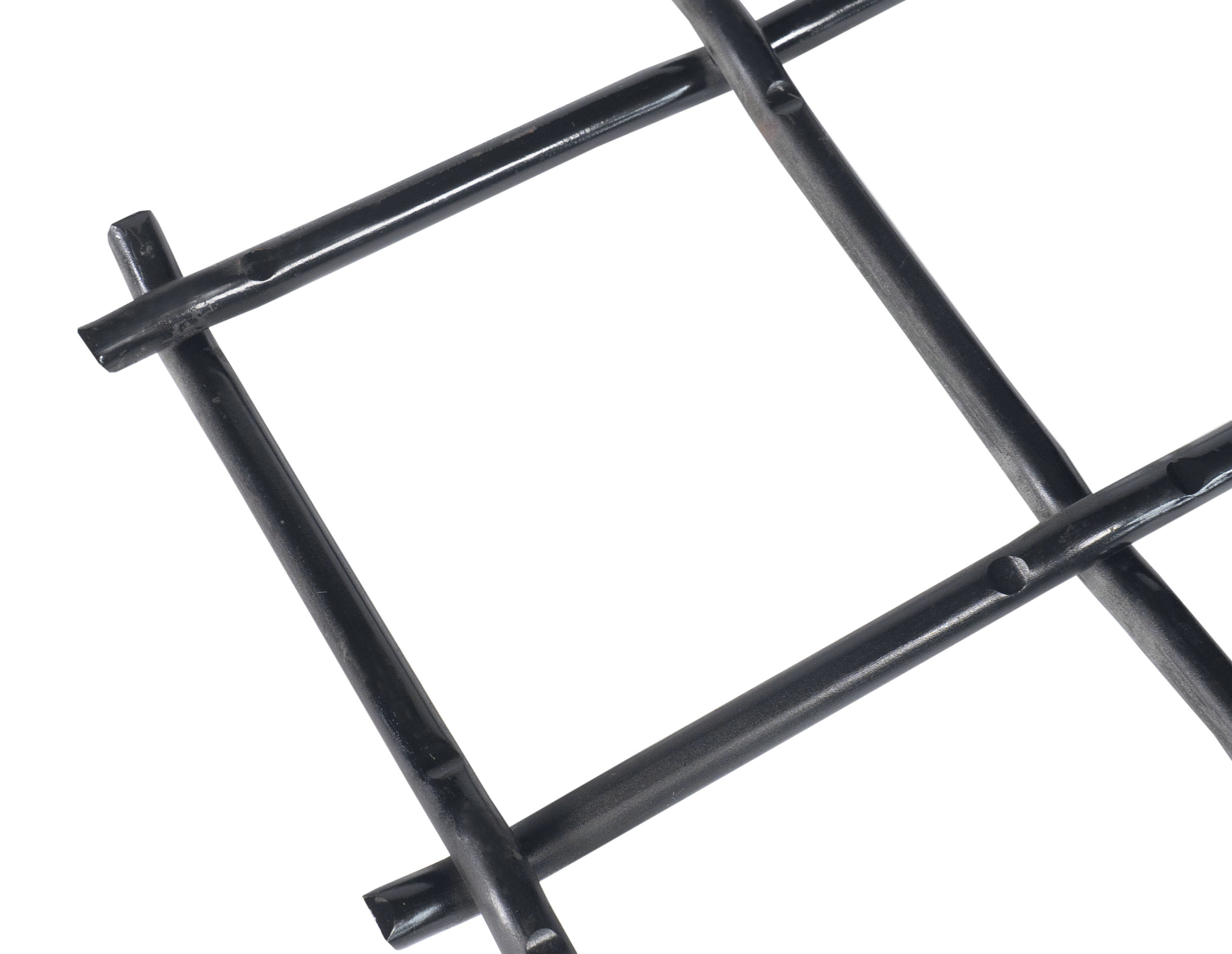

Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.

Knowledge

Available Steel Material

Specifications

diameter (mm)	opening (mm)	mesh	weight（kg/m2）	length (M)	weight (Kg)
12	60	0.35	25.9	30	777
10	60	0.36	18.5	30	555
9	60	0.36	14.9	30	446
8	60	0.37	12.19	30	365
7	50	0.44	11.13	30	334
6	50	0.45	8.32	30	250
5	40	0.56	7.2	30	215
4	40	0.58	4.73	30	142
4	30	0.75	6.07	30	182
4	25	0.87	7.1	30	213
3.2	25	0.87	4.7	30	141
3.2	20	1.1	5.63	30	169
2.6	20	1.12	3.87	30	116
2.6	18	1.23	4.23	30	127
2.6	15	1.44	5.77	30	173
2	15	1.49	3.06	30	92
2	12	1.8	3.67	30	110
2	10	2.12	4.23	30	127
2	8	2.54	5.17	30	155
1.8	7	3	4.96	30	149
1.8	6	3.25	5.36	30	161
1.6	7	3	3.9	30	117
1.6	6	3.35	4.37	30	131
1.6	5	3.85	5	30	150
1.6	4	4.5	5.87	30	176
1.6	3	5.5	7.17	30	215
1.4	6	3.5	3.5	30	105
1.4	5	4	4	30	120
1.4	4	4.7	4.67	30	140
1.2	8	2.7	1.97	30	59
1.2	7	3.1	2.26	30	68
1.2	6	3.5	2.57	30	77
