Tungsten Wire Mesh

Tungsten wire mesh is made of tungsten wire with a purity of over 99.9%. Tungsten wire cloth has very high tensile strength. MOQ:10M2 Application: Electromagnetic shielding net, vacuum furnace heat treatment grid, RF electromagnetic shielding, light wave filtering, etc.

Share:
Detail Description


Tungsten woven wire mesh


Tungsten Wire Mesh

Tungsten wire mesh is a kind of non-ferrous metal woven mesh. Tungsten Mesh is made of pure tungsten wire. Tungsten Mesh offers excellent high-temperature mechanical characteristics and the smallest coefficient of thermal expansion among all metals.  It is used in elevated temperature filtration applications. It has supreme thermal creeping resistance and maximum service temperature up to 3400oC.


Tungsten wire cloth has very high tensile strength. It has the highest melting point of all metals even at high temperatures over 1650ºC. Among its properties are a melting point of 3410ºC, a low coefficient of thermal expansion, and low vapor pressure at elevated temperatures, along with good electrical and thermal conductivity. Tungsten mesh is extremely durable.


Tungsten wire mesh is often used for its good conductivity for heat and electricity as well as for its high absorption capacity for radioactive radiation and X-rays. Tungsten wire cloth is used for battery, chemical, mine, hydrogen making, acid making, basic industry.

Knowledge


Feature

Highest melting point

Melting point of 3410C

Low vapor pressures at high temperature

Electrical and thermal conductivity

Low coefficient thermal expansion

High density

High tensile strength at extreme temperature

Smooth and clean mesh surface

Weave Pattern: plain weave, twill weave.

Materials: W1, W2, WAL1, WAL2 and WAL3.


Specification Sheet

Tungsten Wire Mesh

Mesh

Wire

diameter

mm

Aperture

mm

Opening Area

%

Weight

Kgs/m2

Mesh

Wire

diameter

mm

Aperture

mm

Opening Area

%

Weight

Kgs/m2

10

0.15

2.39

88%

0.27

80

0.05

0.267

71%

0.24

10

0.25

2.25

81%

0.76

80

0.07

0.247

61%

0.48

18

0.15

1.26

80%

0.49

100

0.03

0.224

78%

0.11

20

0.15

1.12

78%

0.55

100

0.05

0.204

65%

0.30

20

0.20

1.07

71%

0.98

120

0.05

0.161

58%

0.36

30

0.05

0.797

88%

0.09

140

0.035

0.146

65%

0.21

30

0.10

0.747

78%

0.36

150

0.06

0.109

42%

0.66

40

0.10

0.535

71%

0.49

150

0.05

0.119

50%

0.46

50

0.08

0.428

71%

0.39

180

0.03

0.111

62%

0.20

50

0.05

0.458

81%

0.15

200

0.03

0.097

58%

0.22

60

0.05

0.373

78%

0.18

250

0.035

0.067

43%

0.37

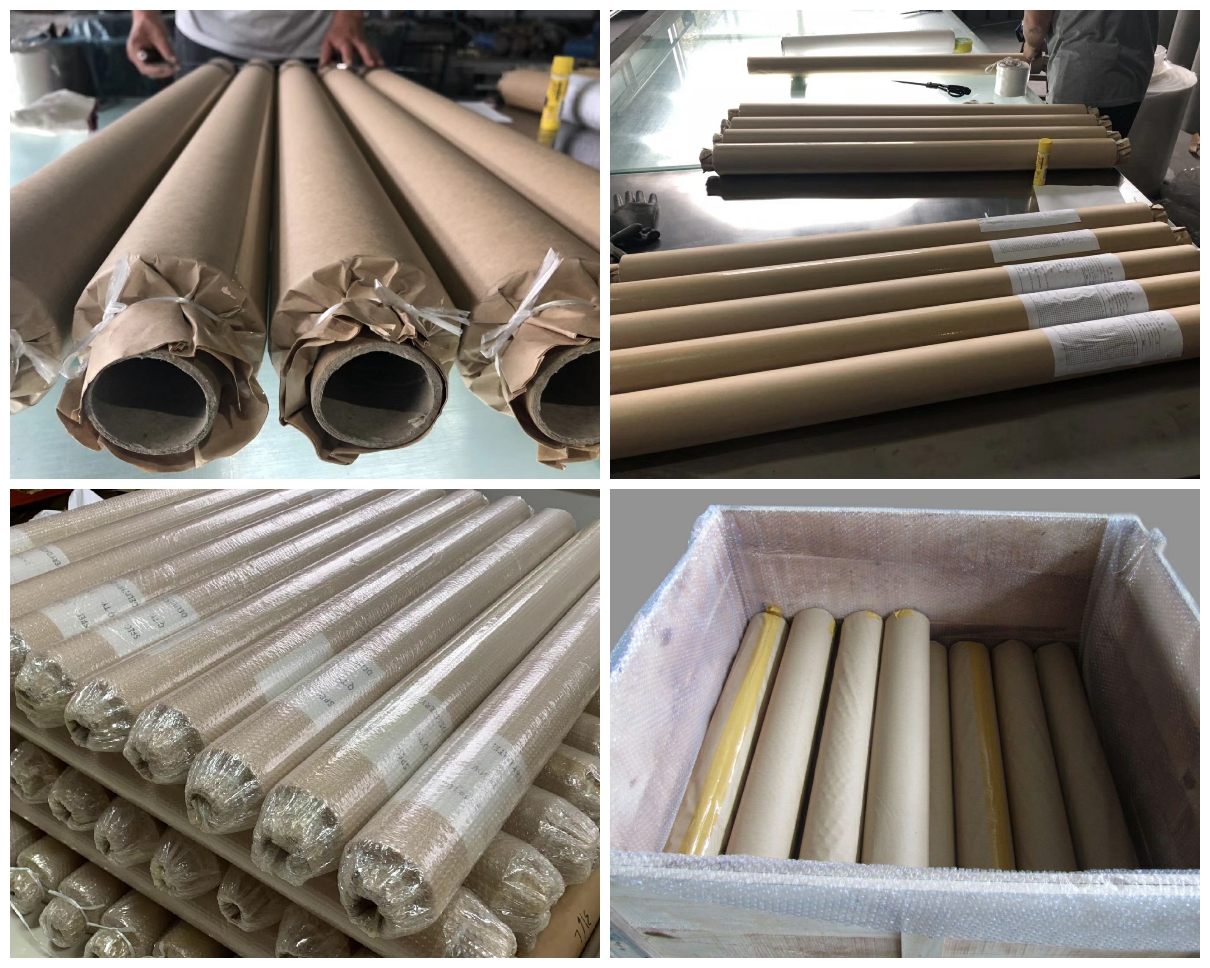

Packaging

Packed in the roll, wrapped with moisture-proof paper, put into wooden cases, or according to your requirements.

Tungsten Wire Mesh

Application

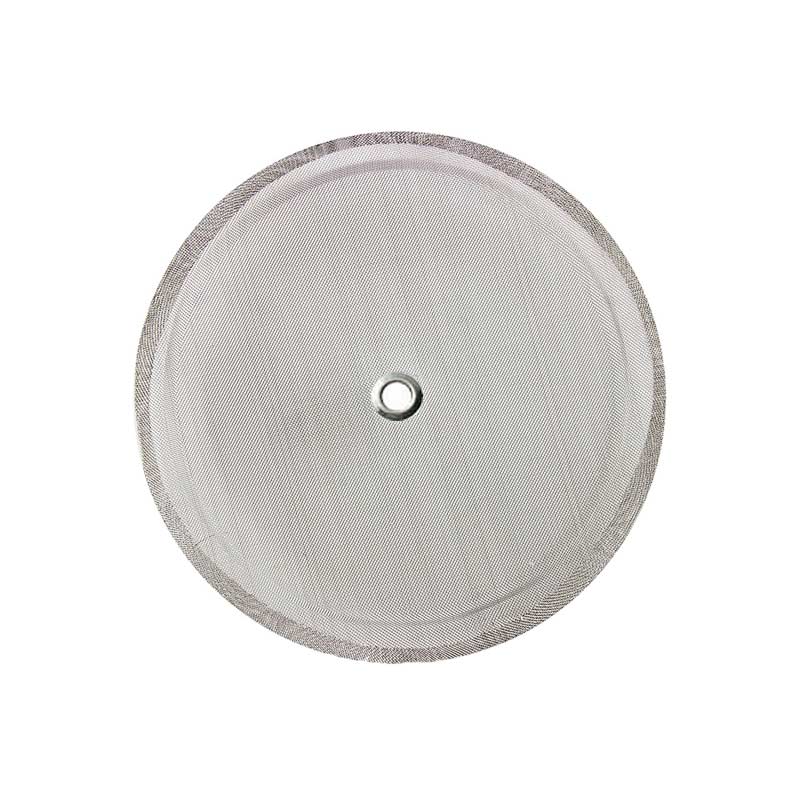

  • Tungsten Wire Mesh For Fliter

  • Tungsten Wire Mesh Serves for Heating Treatment and Radiation Shielding

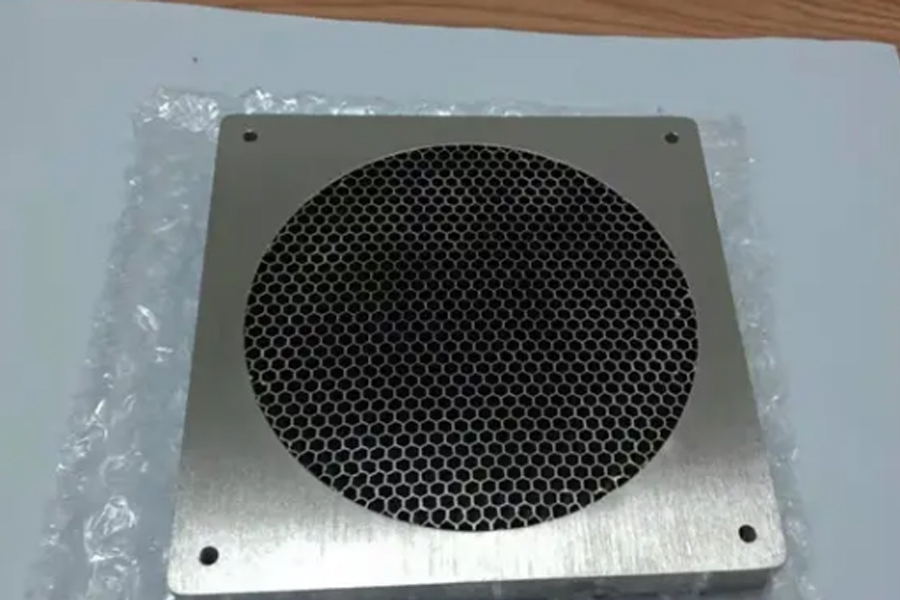

  • Electromagnetic screen

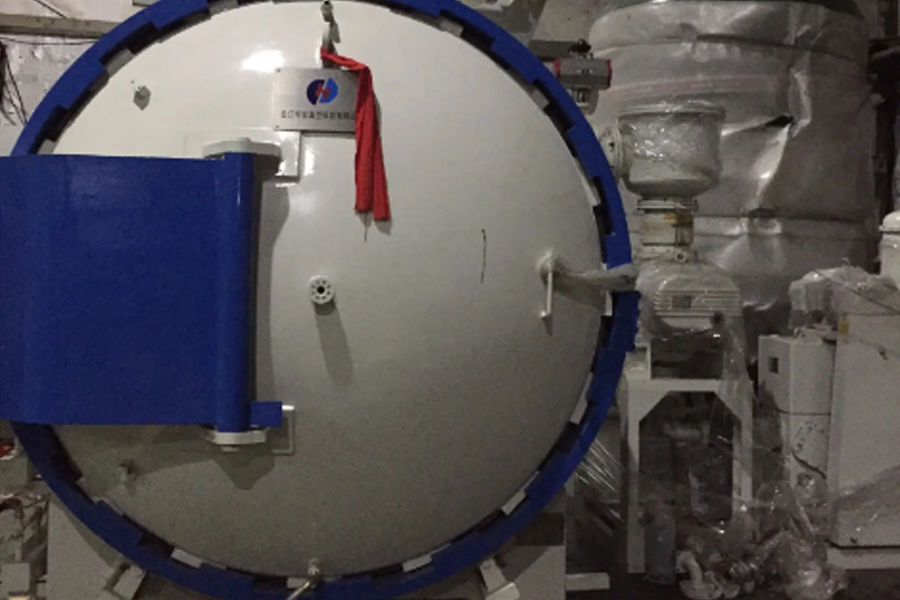

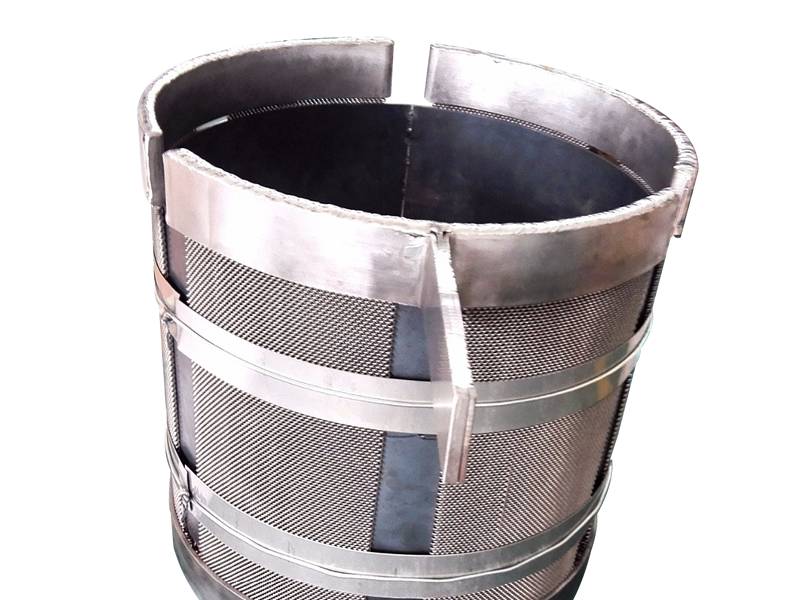

  • Vacuum furnace heat treatment grid
