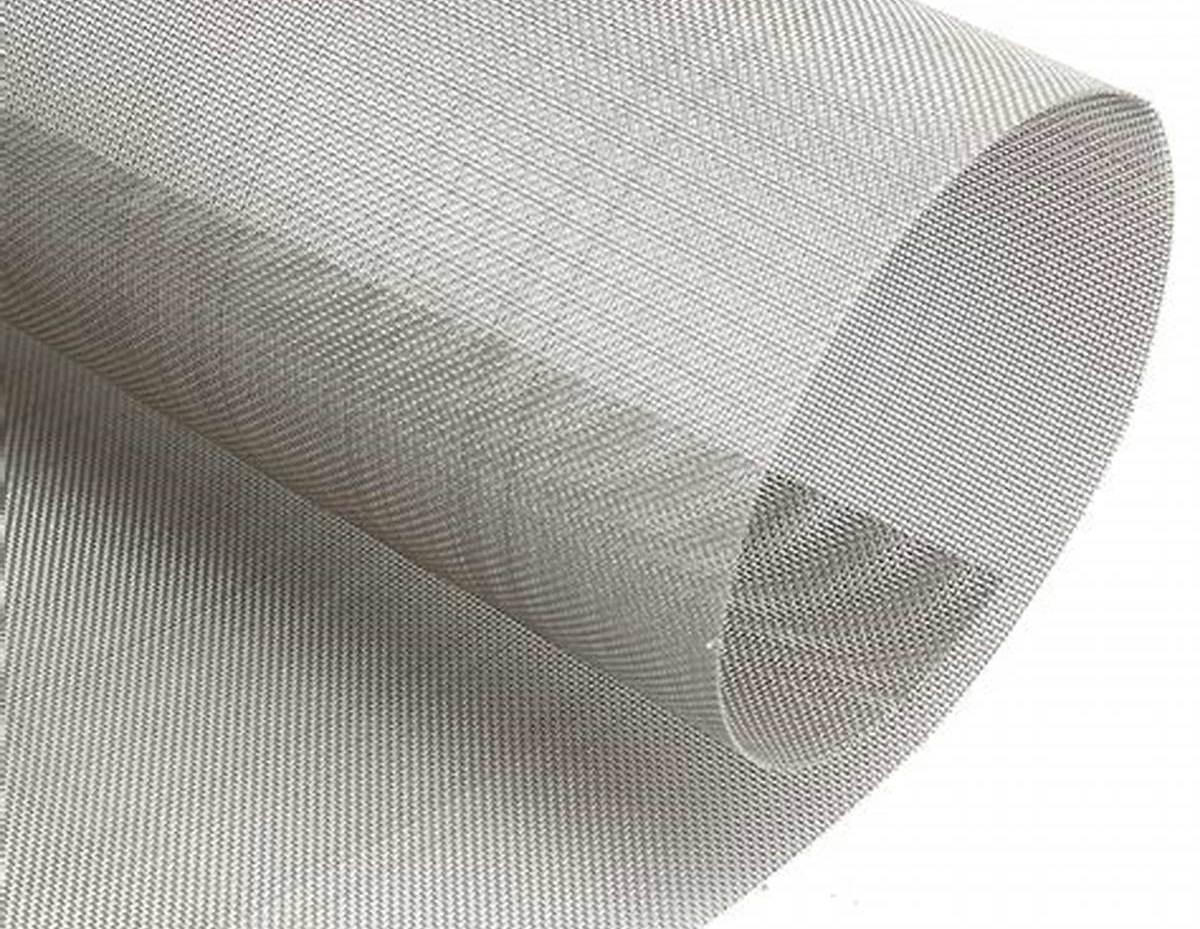

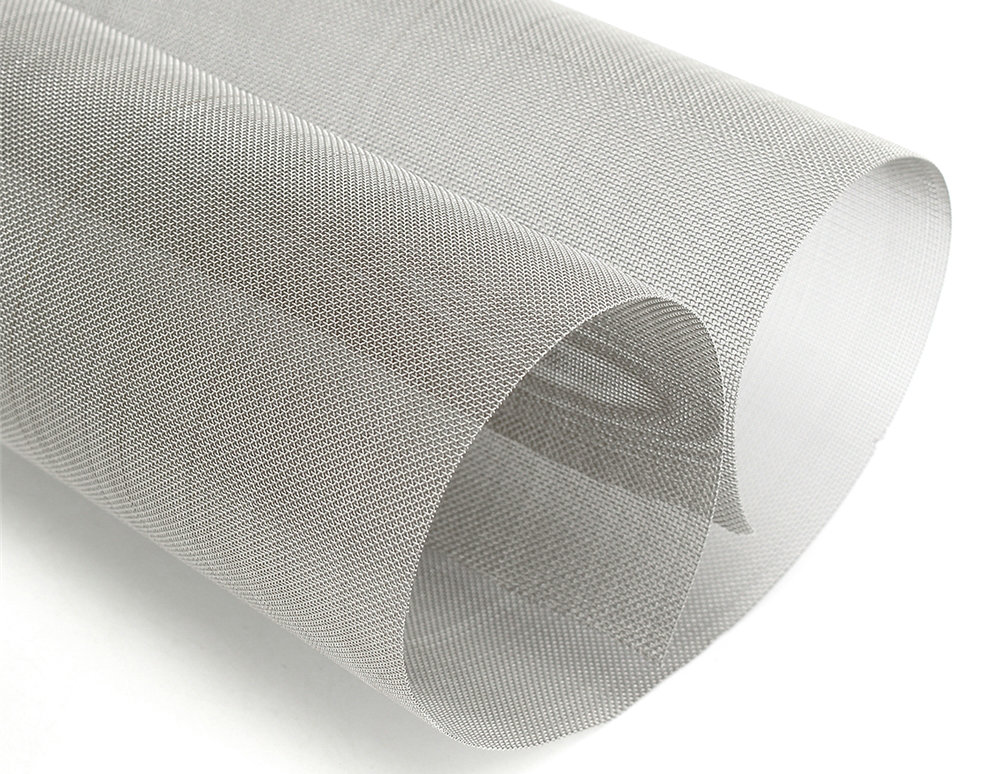

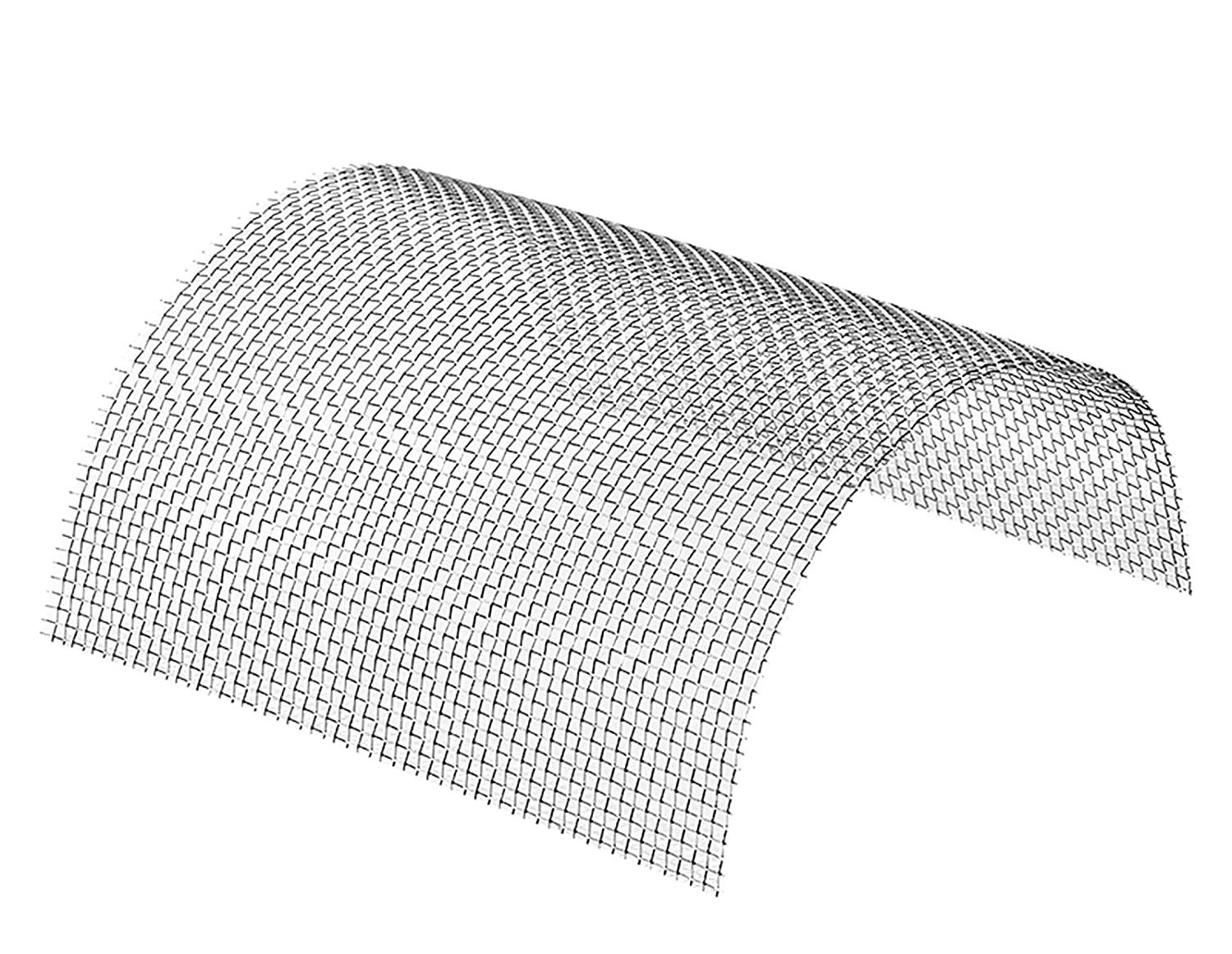

Titanium Woven Wire Mesh

 Titanium Woven Wire Mesh

Titanium mesh is a kind of non-ferrous metal mesh with special properties. It has low density, but highest strength than any other metal mesh; And also high purity titanium mesh will generate an oxide film with dense adhesion and high inertia in the corrosion-resistant media environment, especially in seawater, wet chlorine gas, chlorite, and hypochlorite solution, nitric acid, chromic acid metal chloride, and organic salt are not corroded. Besides these, titanium wire mesh is also featured with good temperature stability & conductivity, non-magnetic, non-toxic.

Titanium mesh is mainly used for sieving and filtering under acid and alkali environmental conditions or for gas, liquid filtering and other media separation. There are three methods: plain weave, twill weave, and dense weave. Due to the difficulty of drawing titanium wire, the thinnest domestic titanium wire can be drawn at 0.05mm, the elongation of titanium wire is low, the strength is large, the elasticity is large, and the flexibility is low. This greatly limits the production of high mesh titanium mesh. The specification of titanium mesh is 1 mesh-400 mesh.

Material: TA1, TA2, GR2, GR3, R50250, titanium alloy, etc.

Material surface: 1. Black (the surface contains graphite emulsion coating) 2. Bright (no graphite emulsion coating)

Weave type:Plain weave, twill weave.

Fetures:

Strong resistance to acid and alkali.

Good anti-damping performance.

High tensile yield strength.

Low elasticity modulus.

Non-magnetic, non-toxic.

Good temperature stability and conductivity.

Packed in the roll, wrapped with moisture-proof paper, put into wooden cases, or according to your requirements.
