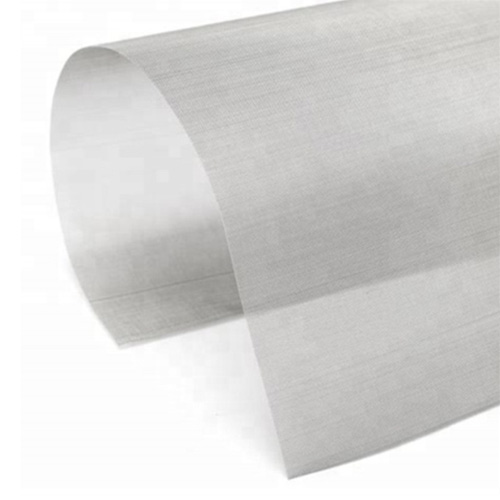

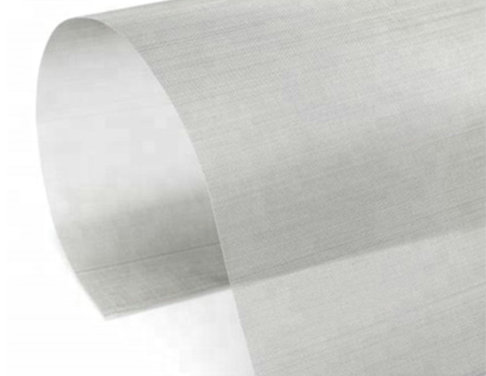

The Best Corrosion-resistant Material Among All Metal Materials---Hastelloy Wire Mesh

Hastelloy wire mesh is also a nickel-based alloy mesh made of alloy wire of nickel, molybdenum, and chromium. Hastelloy wire mesh is the best corrosion-resistant material among all metal materials. It is corrosion resistant in acid, oxidizing, salt, and other corrosion environments.

Share:
Detail Description

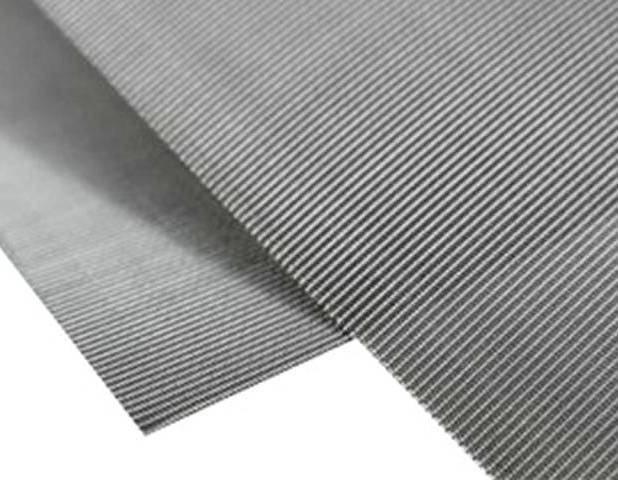

Hastelloy Wire Mesh – Resistance to Pitting and Crevice Corrosion


The Best Corrosion-resistant Material Among All Metal Materials---Hastelloy Wire Mesh             • Chemical stability, adapt to reducing and oxidizing media.


             • Outstanding filtering performance.


             • Acid and alkali resistance, high-temperature resistance, salty resistance.


             • Resist pitting, crevice corrosion.



             • Resist to wet chlorine gas corrosion.


            • Resist to the high concentration of chloride solution corrosion.


             • Resist hypochlorite & chlorine dioxide solution corrosion.


Hastelloy wire mesh is also a nickel-based alloy mesh made of alloy wire of nickel, molybdenum, and chromium. Hastelloy wire mesh is the best corrosion-resistant material among all metal materials. It is corrosion resistant in acid, oxidizing, salt, and other corrosion environments. According to the different chemical compositions of the material, the Hastelloy can be divided into Hastelloy B, Hastelloy C22, Hastelloy C276, and Hastelloy X.


Higher nickel and molybdenum content make Hastelloy mesh resistant to chloride corrosion, and the tungsten element further enhances its corrosion resistance. Rigorous metallic element matching made Hastelloy wire mesh in both oxidation and reduction states, all can have excellent corrosion resistance to most corrosive media.


In addition to that, Hastelloy wire mesh also has outstanding resistance to pitting and crevice corrosion. It has a wide range of applications such as heat exchanger, corrugated expansion joint, chemical equipment, flue gas desulfurization and denitrification, paper industry, aerospace, and acid environment.


Specification:

Material: Hastelloy B, Hastelloy C22, Hastelloy C276, Hastelloy X.

Wire diameter: 0.05–1.8 mm.

Mesh size: 2–200 mesh.

Weave type: Plain weave, twill weave.

Width: 0.1–1.5 m.

Length: 10–100 m.

Knowledge

Table 1: Chemical Composition of Hastelloy

Type

C

Co

Cr

Cu

Fe

Mn

Mo

Ni

P

S

Si

Sn

V

W

H-B

0.12

2.5

1.0

-

6.0

1.0

26.0–30.0

Rem.

0.01

-

0.03

-

0.6

-

H-C22

0.015

2.5

14.5–20.0

-

2.0–6.0

0.5

12.8–14.5

Rem.

-

0.02

0.08

-

0.35

-

H-C276

0.02

2.5

14.5–16.5

-

4.0–7.0

1

15.0–17.0

Rem.

0.03

0.03

0.08

-

0.35

3.0–4.5

H-X

0.08

-

17.0–20.0

1

Rem.

2

-

34.0–37.0

0.03

0.03

0.75–1.50

0.025

-

-


Table 2: Specification of H-B Wire Mesh

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

HB-01

16 × 16

0.0140

0.0490

60.2

HB-02

30 × 30

0.0085

0.0250

55.4

HB-03

30 × 30

0.0106

0.0227

46.5

HB-04

60 × 60

0.0072

0.0090

30.5

HB-05

200 × 200

0.0020

0.0030

36.0


Table 3: Specification of H-C276 Wire Mesh

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

HC276-01

6 × 6

0.047

0.12

51.8

HC276-02

8 × 8

0.032

0.093

55.4

HC276-03

10 × 10

0.025

0.075

56.3

HC276-04

12 × 12

0.023

0.06

51.8

HC276-05

12 × 12

0.016

0.067

64.5

HC276-06

12 × 12

0.015

0.068

66.6

HC276-07

14 × 14

0.02

0.051

51.0

HC276-08

16 × 16

0.018

0.045

50.7

HC276-09

16 × 16

0.009

0.0535

73.27

HC276-10

20 × 20

0.023

0.027

29.2

HC276-11

20 × 20

0.016

0.034

46.2

HC276-12

20 × 20

0.009

0.041

67.2

HC276-13

24 × 24

0.014

0.028

44.2

HC276-14

30 × 30

0.013

0.02

37.1

HC276-15

30 × 30

0.009

0.024

53.1

HC276-16

40 × 40

0.01

0.015

36.0

HC276-17

40 × 40

0.009

0.016

41.0

HC276-18

40 × 40

0.0075

0.018

49.0

HC276-19

50 × 50

0.009

0.011

30.3

HC276-20

60 × 60

0.0072

0.009

30.5

HC276-21

60 × 60

0.0044

0.0123

54.2

HC276-22

80 × 80

0.007

0.006

19.4

HC276-23

80 × 80

0.001

0.0085

46.2

HC276-24

100 × 100

0.001

0.006

36.0

HC276-25

120 × 120 T

0.004

0.0043

27.0

HC276-26

180 × 180

0.002

0.0036

41.0

HC276-27

200 × 200

0.0023

0.0027

48.0

HC276-28

200 × 200

0.002

0.003

36.0


Table 4: Specification of H-X Wire Mesh

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

HX-01

10 × 10

0.0250

0.075

56.3

HX-02

18 × 18

0.0090

0.047

70.4

HX-03

20 × 20

0.0160

0.034

46.2

HX-04

50 × 50

0.0030

0.017

72.3

HX-05

60 × 60

0.0075

0.009

30.5


Packaging

Hastelloy wire mesh package is: inside with Kraft paper then buddle plastic and outside wooden case.

We also can make customized packages if you have requested.

2-400 Mesh Square Stainless Steel Wire Mesh For filter

The Transportation available:

1. Ship by sea, load the cargo into the container.

2. Ship by air, the cargo packaged by wooden case.

Application

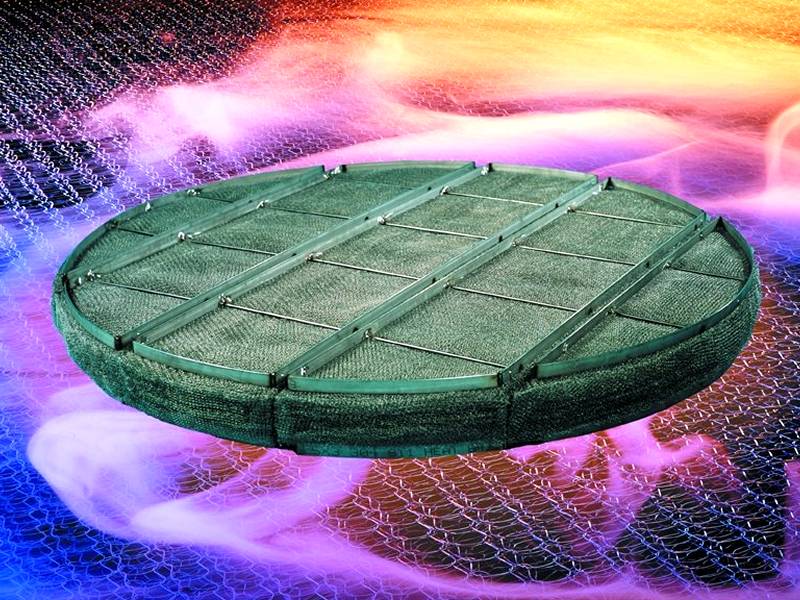

  • Hastelloy wire mesh used for demister

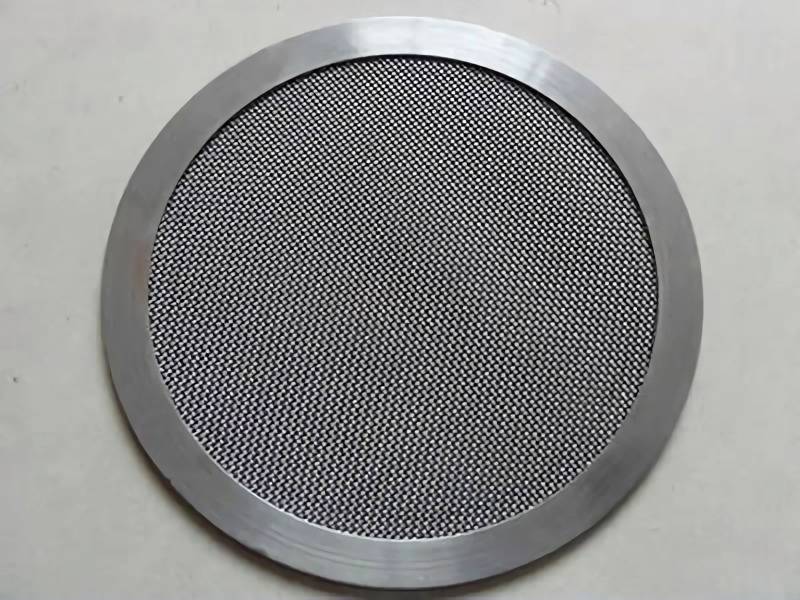

  • Hastelloy wire mesh used for filter disc

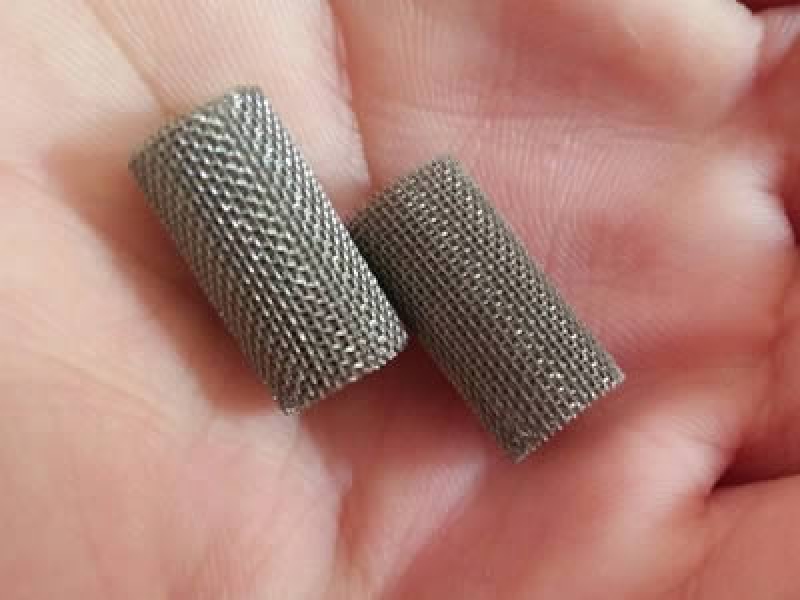

  • Hastelloy wire mesh used for filter tube

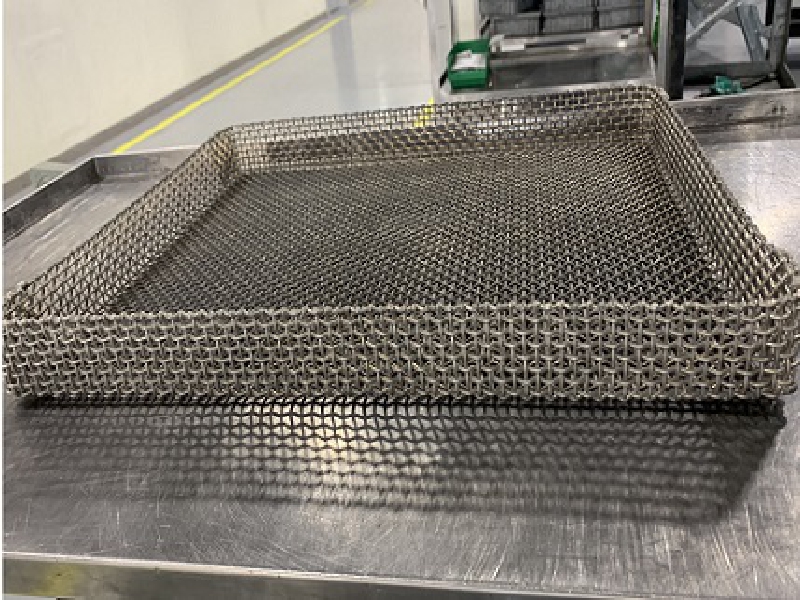

  • Hastelloy wire mesh used for basket performing in acidic media
