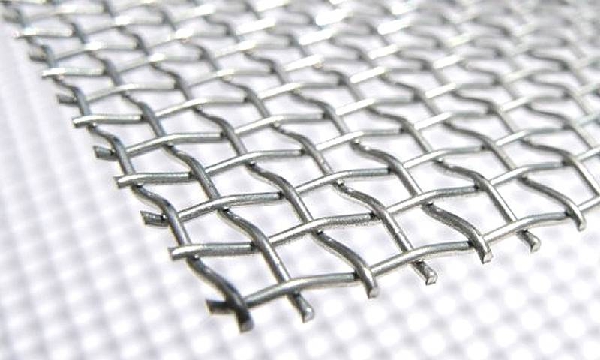

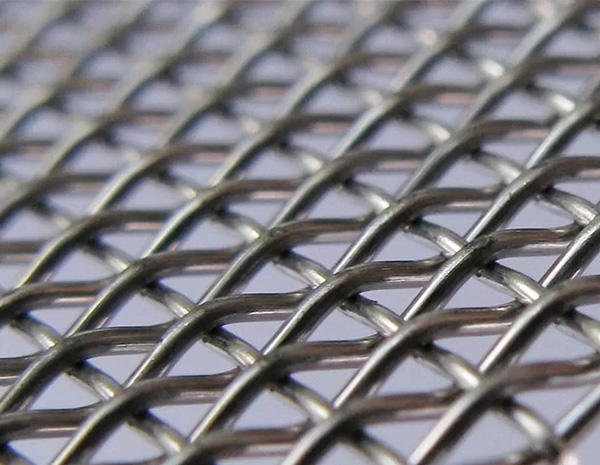

Tantalum Wire Mesh

Tantalum wire cloth is a kind of rare metal wire mesh possessing good physical and chemical properties. And because of its good ductility, we can design it into various application products according to your needs. MOQ:10M Applications:screening and filtering, gas-liquid filtration, material for prosthetic implants, and other medical devices.

Share:
Detail Description


Tantalum Wire Mesh

Tantalum Wire Mesh

Tantalum wire mesh is a kind of non-ferrous metal mesh and also a type of rare metal mesh.


Tantalum (Ta) is a dark blue-gray metal that is very heavy, ductile, and hard, and has high corrosion resistance. The reason why tantalum wire meshes is widely used or accepted by various industrial fields is thanks to its stable chemical property and strong corrosion resistance. Tantalum is especially resistant to chemicals at temperatures below 150 °C and can only be dissolved with hydrofluoric acid. It has the fourth-highest melting point of all metals and is able to form extremely thin and protective oxide layers, making it an excellent material for wire mesh. So it is also ideal for electronic engineering and heat treatment.


Knowledge

Specifications of tantalum wire cloth:

Width: 0.3–2 m.

Roll length: 10–30 m or customized.

Weaving methods: plain weave, twill weave, dutch weave.

Packing: wrapped with moisture-proof paper or plastic film and then put in wooden cases or on pallet.

Tantalum wire cloth features:

High melting point;

Corrosion resistance;

Good ductility and toughness.

Tantalum wire cloth applications:

Used in sieving or gas-liquid filtration and other media separation processes;

As a substitute for platinum;

Used for heating element;

In medicine, tantalum mesh thin sheet can be used to stitch injured tissue.

Specifications of Tantalum Wire Cloth
MeshWire DiameterOpening (mm)
mminch
2 mesh1.80.07110.9
3 mesh1.60.0636.866
4 mesh1.20.0475.15
5 mesh0.910.0364.17
6 mesh0.7110.0283.522
8 mesh0.610.0242.565
10 mesh0.5080.022.032
12 mesh0.4570.0181.66
14 mesh0.4170.0161.397
16 mesh0.3450.0141.243
18 mesh0.3150.0121.096
20 mesh0.3150.01240.955
22 mesh0.3150.01240.84
24 mesh0.3150.01240.743
26 mesh0.2950.01160.682
28 mesh0.2950.01160.612
30 mesh0.2740.0110.573
32 mesh0.2540.010.54
34 mesh0.2340.00920.513
36 mesh0.2340.00920.472
38 mesh0.2130.00840.455
40 mesh0.1930.00760.442
42 mesh0.1930.00760.412
44 mesh0.1730.00680.404
46 mesh0.1730.00680.379
48 mesh0.1730.00680.356
50 mesh0.1730.00680.335
60 × 50 mesh0.1930.0076-
60 × 50 mesh0.1730.0068-
60 mesh0.1730.00680.25
70 mesh0.1320.00520.231
80 mesh0.1220.00480.196
90 mesh0.1120.00440.17
100 mesh0.0120.0040.152
120 × 108 mesh0.0910.0036-
120 mesh0.0810.00320.131
140 mesh0.0610.00240.12
150 mesh0.0610.00240.108

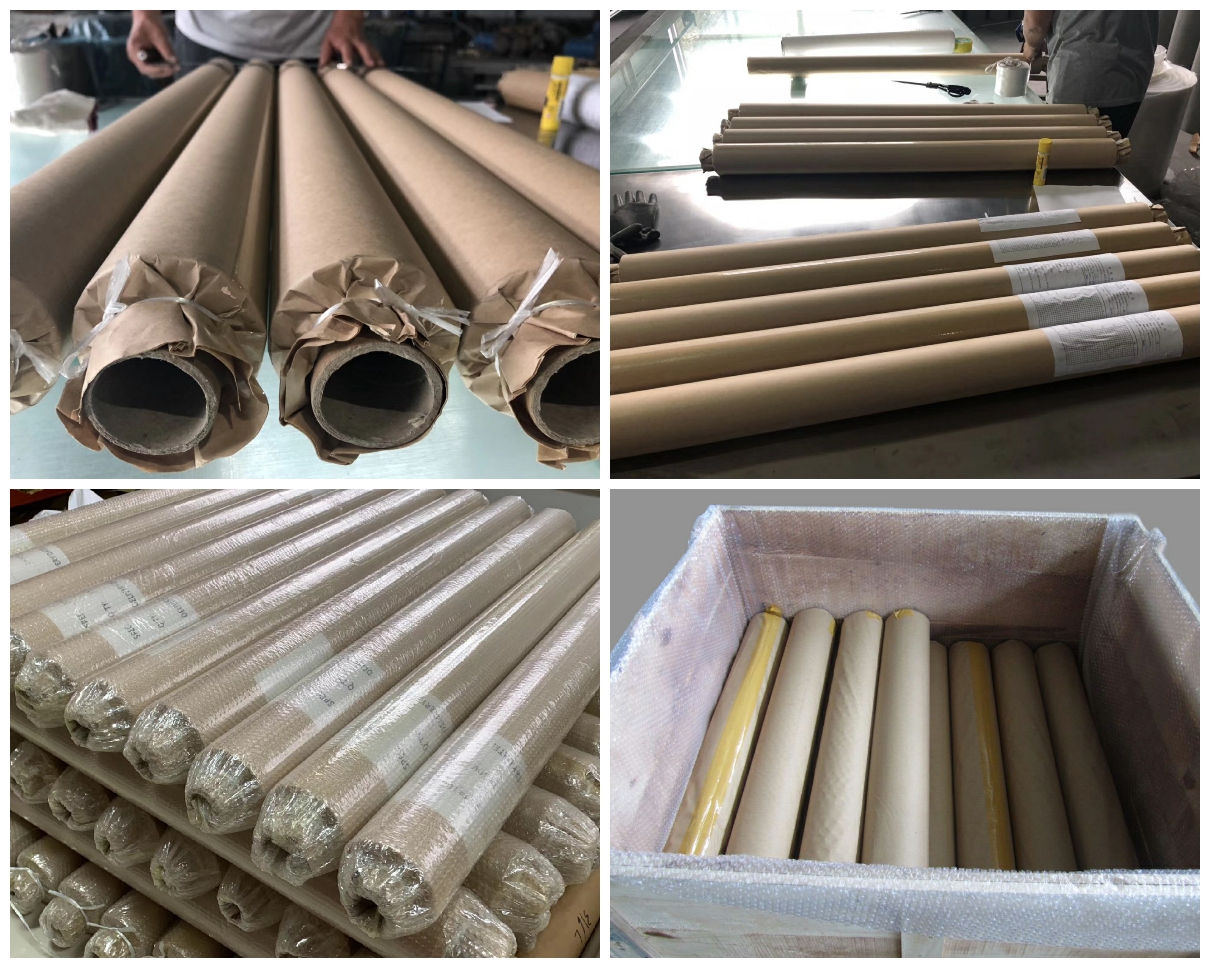

Packaging

Packed in the roll, wrapped with moisture-proof paper, put into wooden cases, or according to your requirements.

Tantalum Wire Mesh

Application

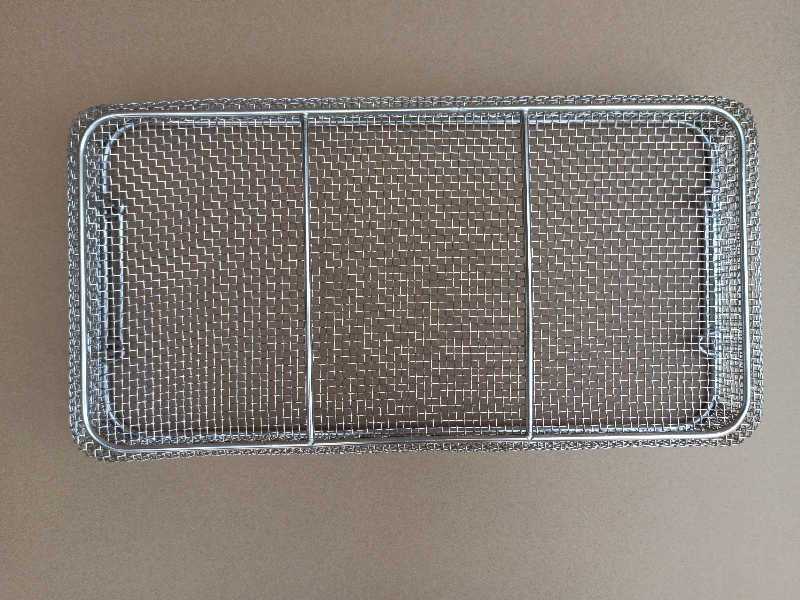

  • High temperature resistance wire mesh basket

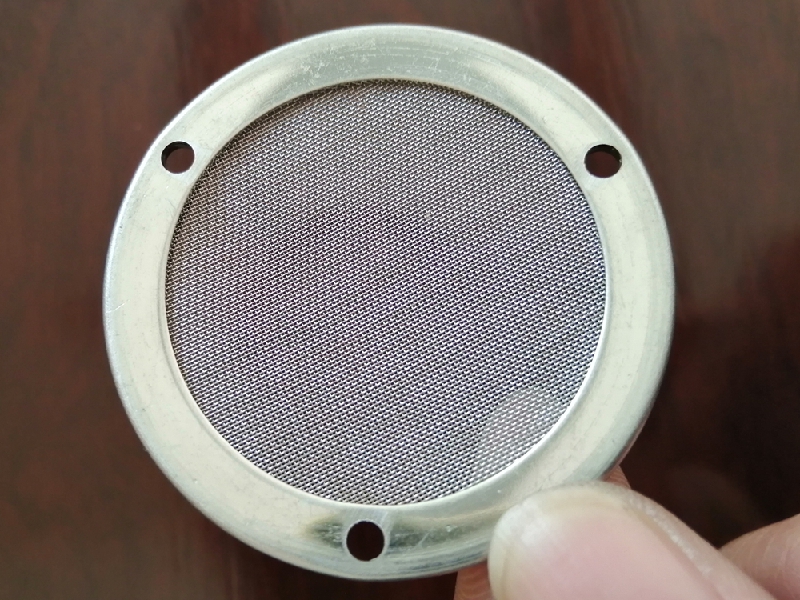

  • filter mesh disc
