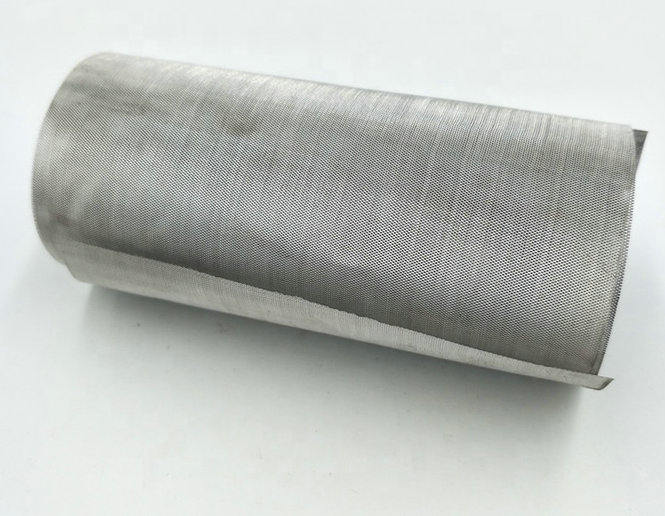

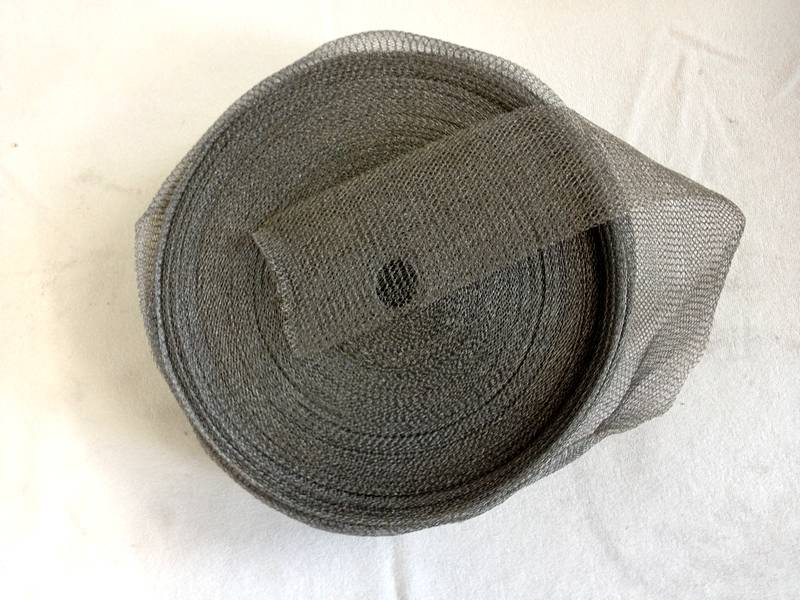

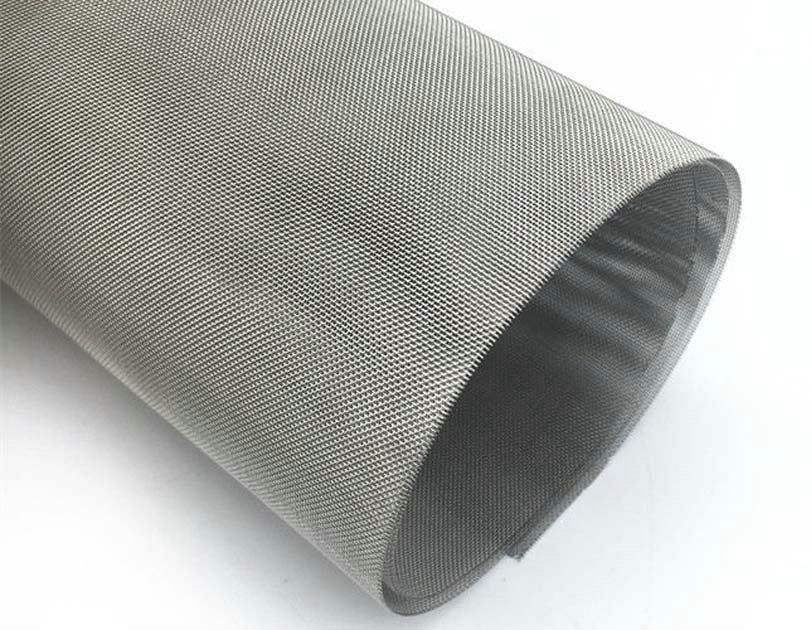

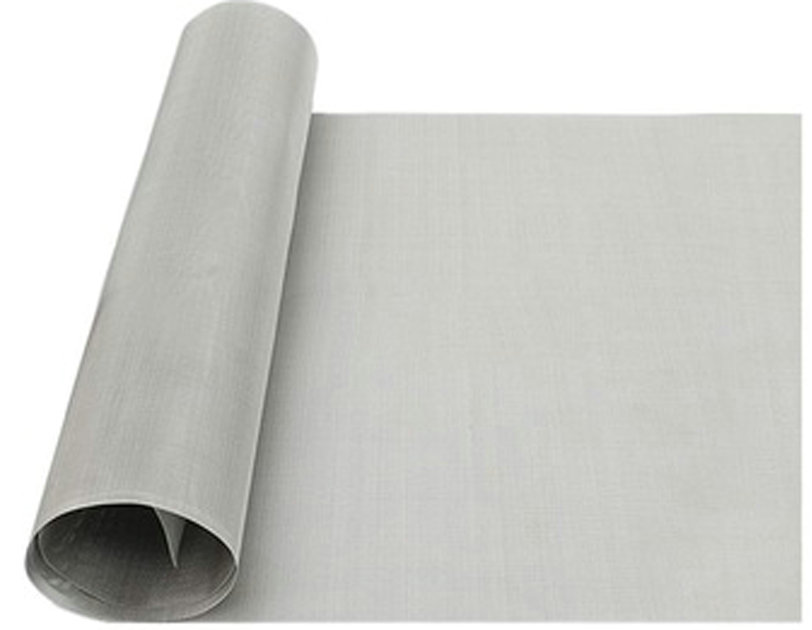

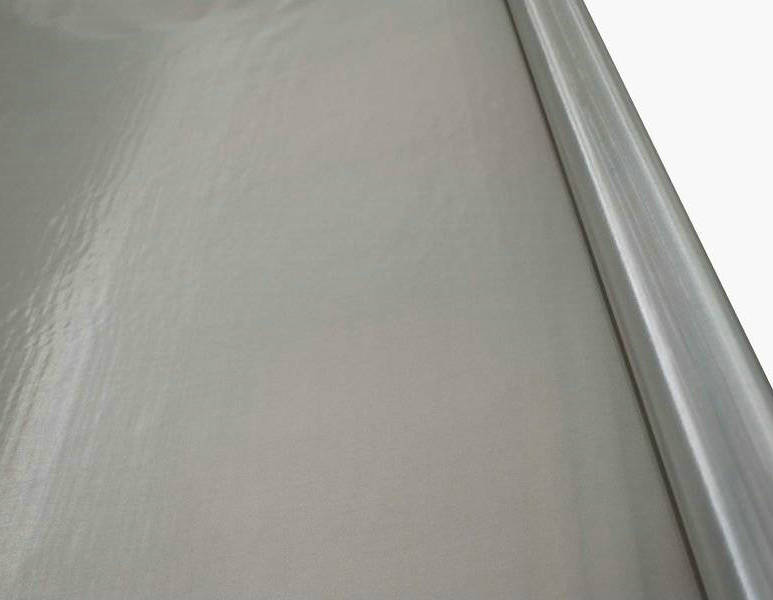

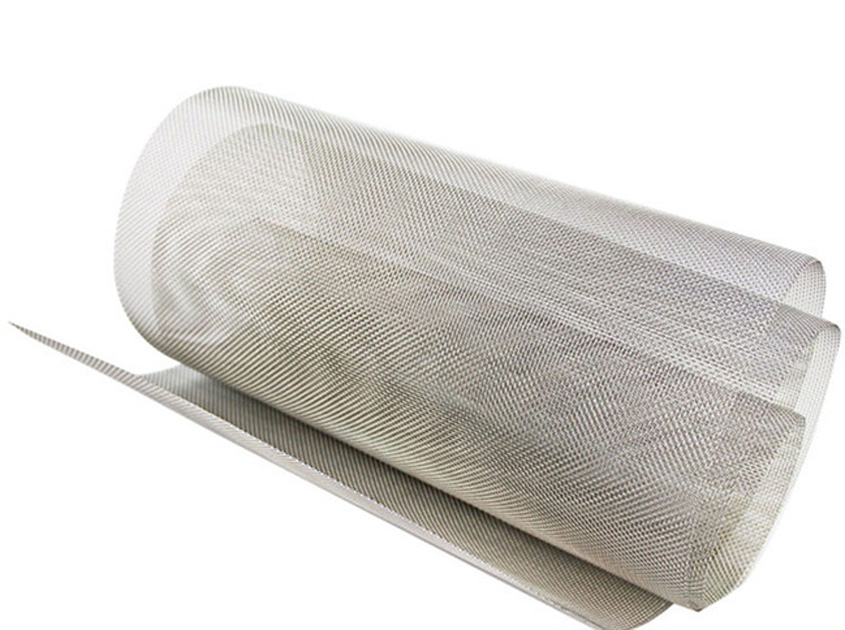

Non-magnetic Inconel Woven Wire Mesh

Inconel wire mesh is made of alloy wire of nickel, chrome, and iron, which predominantly nickel, chromium as the second element. According to the different chemical composition content, the most common Inconel wire including Inconel 600, Inconel 601, Inconel 625, Inconel 718 and Inconel X-750 and so on.

Share:
Detail Description

Inconel Woven Wire Mesh – Good Weld Ability and Heat Resisting


Non-magnetic Inconel Woven Wire Mesh             • Non-magnetic & heating resisting.


             • Oxidation and corrosion resistance.


             • Good cold-formed function.


             • Good process & weld ability.



             • High tensile strength, yield strength & stability.


            • Resist to pitting, crevice & inorganic acid corrosion.




Inconel wire mesh is made of alloy wire of nickel, chrome, and iron, which predominantly nickel, chromium as the second element. According to the different chemical composition content, the most common Inconel wire including Inconel 600, Inconel 601, Inconel 625, Inconel 718 and Inconel X-750 and so on.


Inconel woven wire mesh is a special type of metal mesh that can adapt to extreme environments but is resistant to corrosion, oxidation. Furthermore, Inconel wire mesh is non-magnetic, it can maintain high strength and good weldability in a temperature range from below zero to 2000°F (1093°C). Its most typical usage includes chemical fiber, petrochemical, aerospace, hydropower, nuclear power, thermal treatment, pulp, and paper industry.


Specification:

Material:Inconel 600, inconel 600, inconel 601, inconel 625, inconel 718 and inconel X-750, etc.

Wire diameter: 0.0020"–0.12".

Mesh Count: 4-200 mesh.

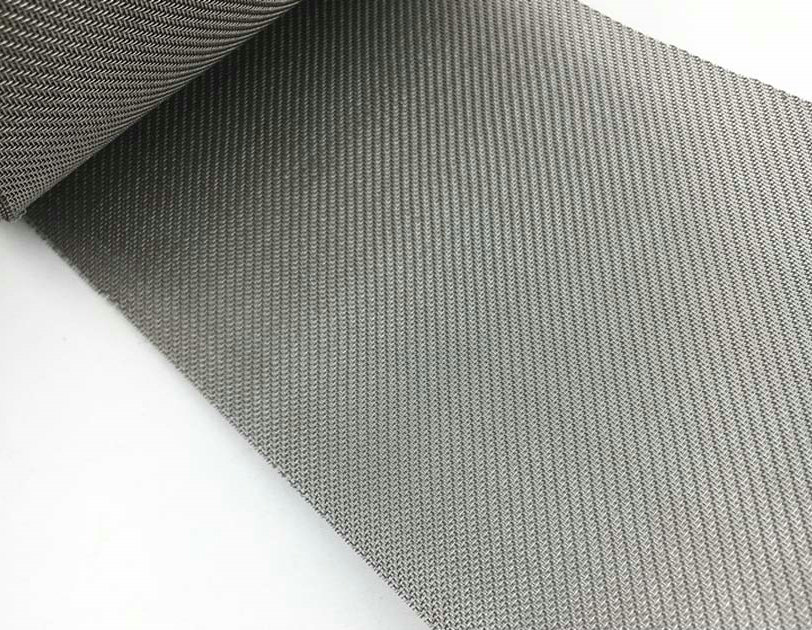

Weaving: Plain weave, Twill weave.

Knowledge

Table 1: Chemical Composition of Inconel

Standard

C

Cr

Cu

Fe

Mn

Ni

S

Si

Al

Cb

Mo

P

Ti

B

C

Co

Inconel 718

0.08

17–21

0.3

Rem.

0.035

50–55

0.015

0.35

0.2–0.8

4.75–5.50

2.8–3.3

0.015

0.65–1.15

0.006

0.08

1.0

Inconel 600

0.15

14–17

0.5

6–10

1.0

72.0

0.015

0.5

-

-

-

-

-

-

-

-

Inconel 601

0.1

21–25

1.0

Rem.

1.0

58–63

0.015

0.5

1.0–1.7

-

-

-

-

-

-

-

Inconel 625

0.1

20–23

-

5.0

0.5

Rem.

0.15

0.5

0.4

3.15–4.15

8–10

0.015

0.4

-

-

-

Inconel X750

0.08

14–17

0.5

5–9

1

70

0.01

0.5

0.4–1

0.7–1.2

-

-

2.0–2.6

-

-

-


Table 2: Specification of Inconel 600

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

IM-600-01

4 × 4

0.12

0.13

27

IM-600-02

4 × 4

0.08

0.17

46.2

IM-600-03

4 × 4

0.063

0.187

56

IM-600-04

5 × 5

0.04

0.16

64

IM-600-05

6 × 6

0.041

0.0126

57.2

IM-600-06

8 ×8

0.047

0.078

38.9

IM-600-07

8 × 8

0.041

0.084

45.2

IM-600-08

8 × 8

0.03

0.095

57.8

IM-600-09

8 × 8

0.028

0.097

60.2

IM-600-10

10 × 10

0.0225

0.075

56.3

IM-600-11

10 × 10

0.015

0.085

72.3

IM-600-12

12 × 12

0.041

0.042

25.4

IM-600-13

12 × 12

0.025

0.058

48.4

IM-600-14

16 × 16

0.036

0.0275

19.4

IM-600-15

16 × 16

0.028

0.035

30.5

IM-600-16

16 × 16

0.025

0.038

36

IM-600-17

16 × 16

0.023

0.04

39.9

IM-600-18

16 × 16

0.018

0.045

50.7

IM-600-19

18 × 18

0.028

0.028

24.7

IM-600-20

20 × 20

0.016

0.034

46.2

IM-600-21

22 × 22

0.015

0.031

45

IM-600-22

24 × 24

0.014

0.028

44.2

IM-600-23

24 × 24

0.012

0.03

50.8

IM-600-24

28 × 28

0.013

0.023

40.4

IM-600-25

30 × 30

0.015

0.018

30.1

IM-600-26

30 × 30

0.01

0.0233

48.9

IM-600-27

35 × 35

0.0055

0.0236

68.1

IM-600-28

40 × 40

0.01

0.015

36

IM-600-29

50 × 50

0.009

0.011

30.2

IM-600-30

60 × 60

0.0075

0.0092

30.5

IM-600-31

80 × 80

0.0055

0.007

31.4

IM-600-32

100 × 100

0.004

0.006

36

IM-600-33

100 × 100

0.0045

0.0055

30.2

IM-600-34

120 × 120

0.0038

0.0046

30.7

IM-600-35

120 × 120

0.002

0.0063

57.8

IM-600-36

200 × 200

0.0021

0.0029

33.6



Table 3: Specification of Inconel 601

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

IM-601-01

2 × 2

0.072

0.428

73.3

IM-601-02

5 × 5

0.041

0.159

63.2

IM-601-03

6 × 6

0.047

0.12

51.8

IM-601-04

10 × 10

0.047

0.053

28.1

IM-601-05

10 × 10

0.0225

0.075

56.3

IM-601-06

10 × 10

0.015

0.085

72.3

IM-601-07

12 × 12

0.025

0.058

48.4

IM-601-08

18 × 18

0.017

0.039

48.3

IM-601-09

24 × 24

0.014

0.028

44.2

IM-601-10

30 × 30 TW

0.017

0.0163

23.9

IM-601-11

30 × 30

0.016

0.017

26.9

IM-601-12

30 × 30

0.015

0.018

30.1

IM-601-13

35 × 35

0.01

0.019

42.4

IM-601-14

35 × 35

0.014

0.015

26.1

IM-601-15

40 × 40

0.01

0.015

36


Table 4: Specification of Inconel 625

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

IM-625-01

4 × 4

0.047

0.203

65.9

IM-625-02

6 × 6

0.041

0.0126

57.2

IM-625-03

8 ×8

0.035

0.09

51.8

IM-625-04

8 × 8

0.032

0.093

55.4

IM-625-05

8 × 8

0.024

0.101

65.29

IM-625-06

20 × 20

0.0115

0.039

60.8

IM-625-07

26 × 26

0.013

0.026

44

IM-625-08

30 × 30

0.012

0.021

40.8

IM-625-09

32 × 32

0.014

0.017

30.6

IM-625-10

32 × 32

0.013

0.018

34.3

IM-625-11

32 × 32

0.01

0.021

46.5

IM-625-12

35 × 35

0.014

0.015

26.1

IM-625-13

35 × 35

0.0135

0.015

27.9

IM-625-14

35 × 35

0.01

0.019

42.4

IM-625-15

40 × 40

0.0105

0.0145

33.65

IM-625-16

40 × 40

0.0085

0.017

43.6

IM-625-17

50 × 50

0.009

0.011

30.3

IM-625-18

60 × 60

0.0075

0.009

30.5

IM-625-19

100 × 100

0.004

0.006

36

IM-625-20

100 × 100

0.0045

0.006

30.3

IM-625-21

100 × 100

0.004

0.006

36


Table 5: Specification of Inconel 718

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

IM-718-01

10 × 10

0.02

0.08

64

IM-718-02

26 × 26

0.013

0.026

44

IM-718-03

30 × 30

0.008

0.025

57.6

IM-718-04

45 × 45

0.003

0.0192

74.8


Table 6: Specification of Inconel X-750

Item

Mesh

Wire diameter

Width of opening

Open area

wires/in.

in.

in.

%

IM-X750-01

38 × 36

0.0045

-

69.5

IM-X750-02

80 × 80

0.0055

0.007

31.4


Packaging

Inconel woven wire mesh package is: inside with Kraft paper then buddle plastic and outside wooden case.

We also can make customized packages if you have requested.

2-400 Mesh Square Stainless Steel Wire Mesh For filter

The Transportation available:

1. Ship by sea, load the cargo into the container.

2. Ship by air, the cargo packaged by wooden case.

Application
  • Inconel woven wire mesh used for furnace

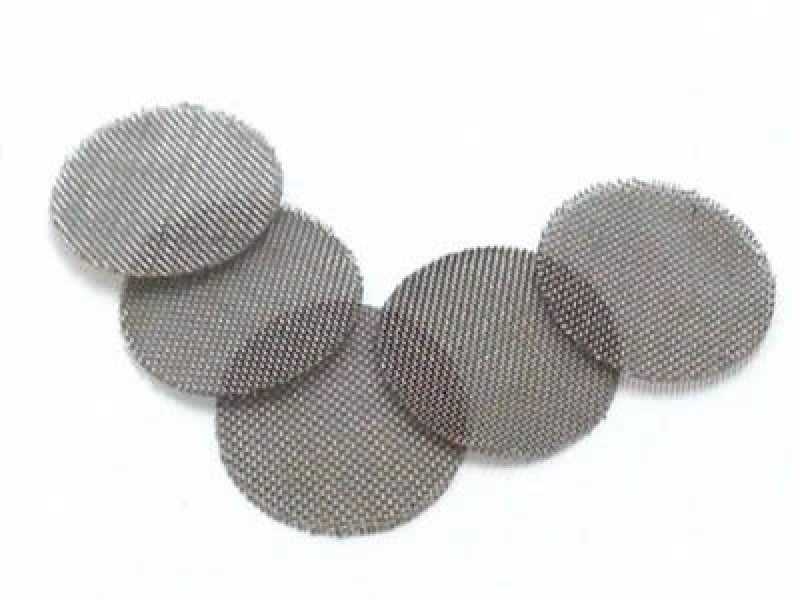

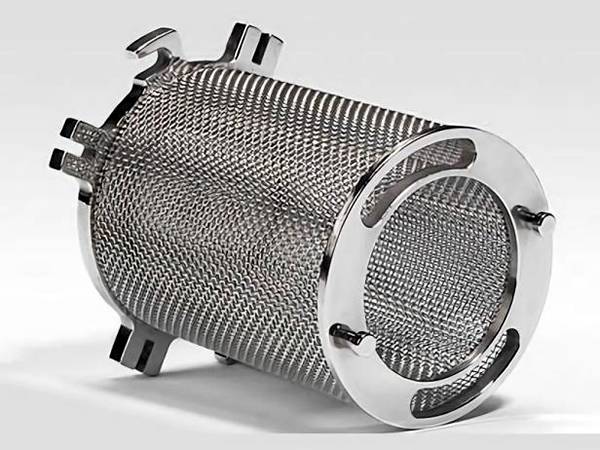

  • Inconel woven wire mesh used for filter disc

  • Inconel woven wire mesh used for magnet preheater

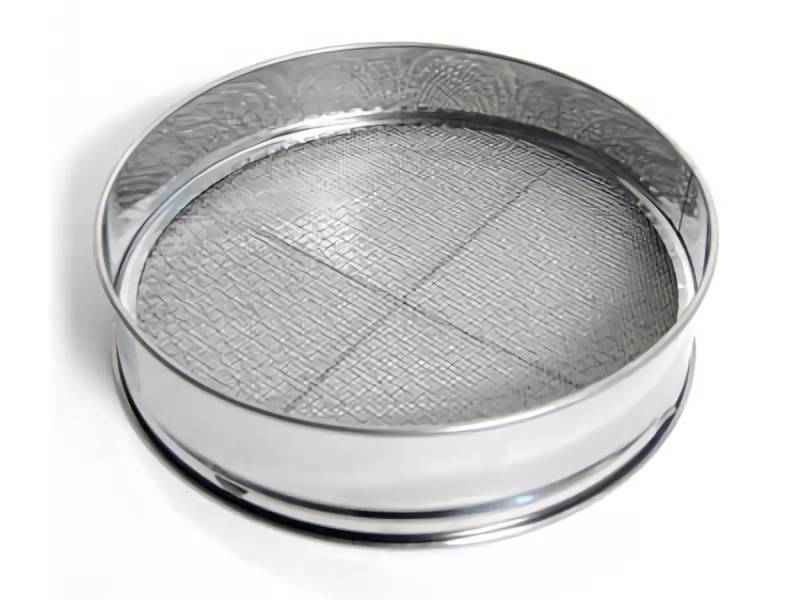

  • Inconel woven wire mesh used for test sieve
