Monel Wire Mesh With Good Weldability Used As a Corrosion Resistant Material

Monel alloy has a long history of use as a corrosion resistant material in the wire mesh industry. Monel wire mesh, similar to the Inconel wire mesh, is also a type of woven mesh, which is weaved from nickel-based alloy wire. Monel is an alloy of nickel, copper and other chemical elements.

Share:
Detail Description

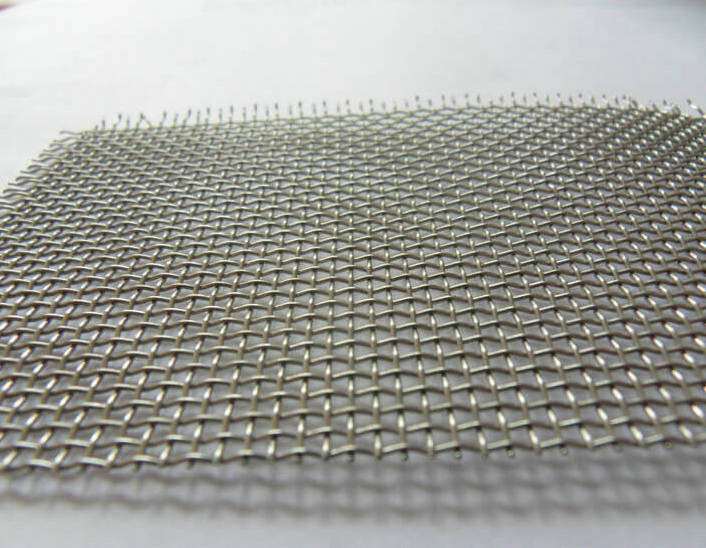

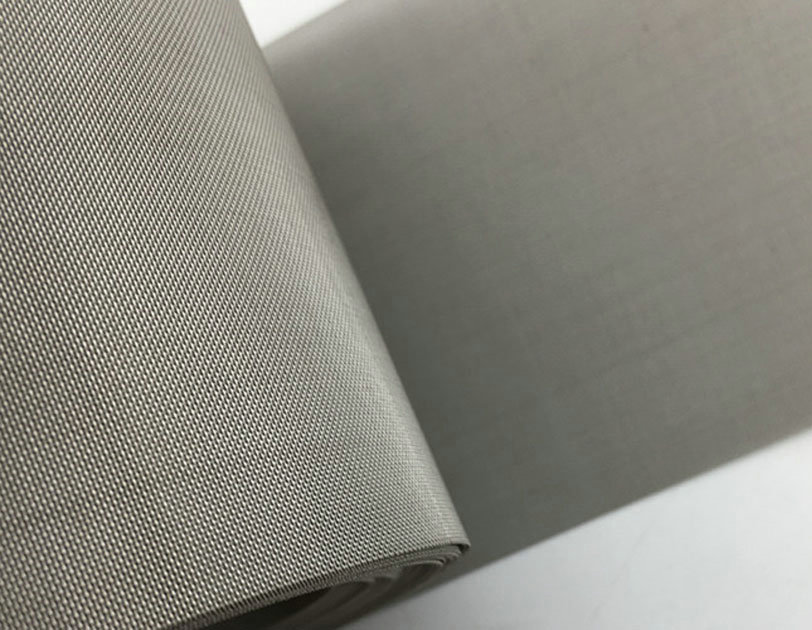

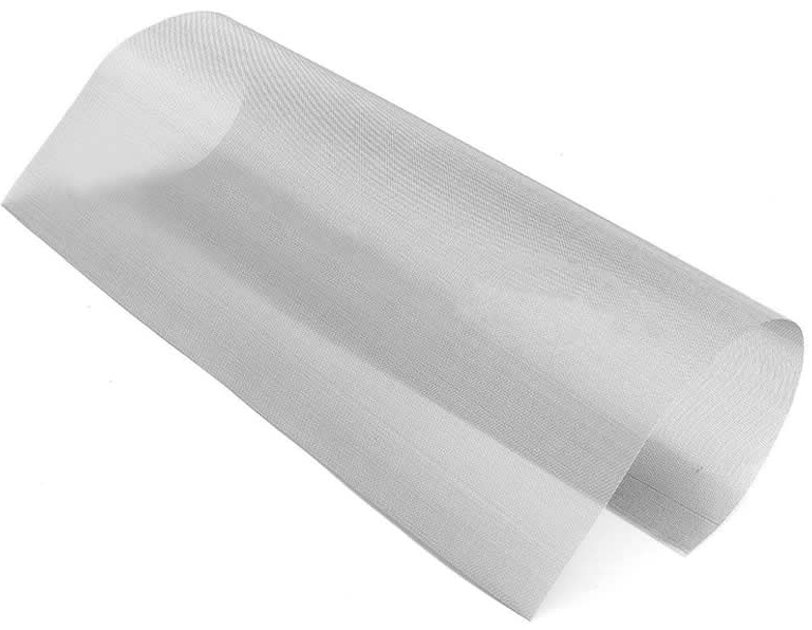

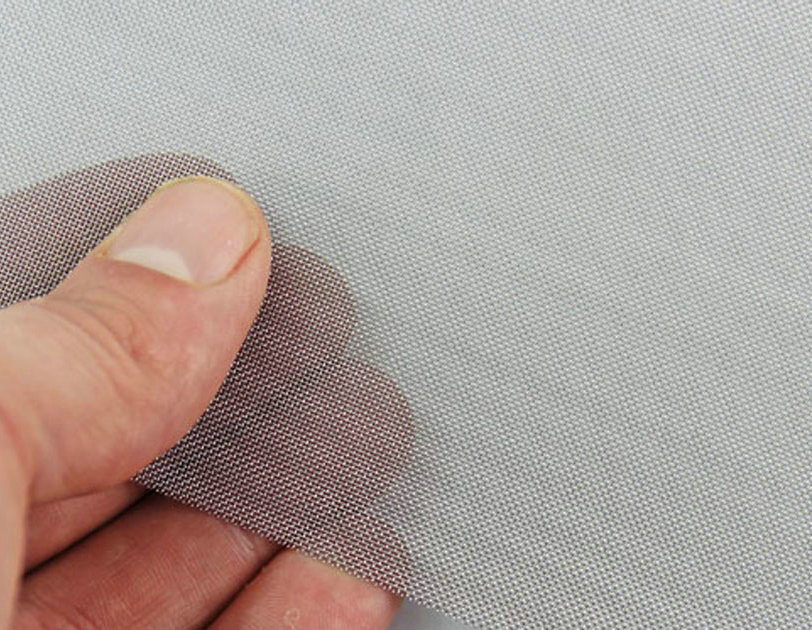

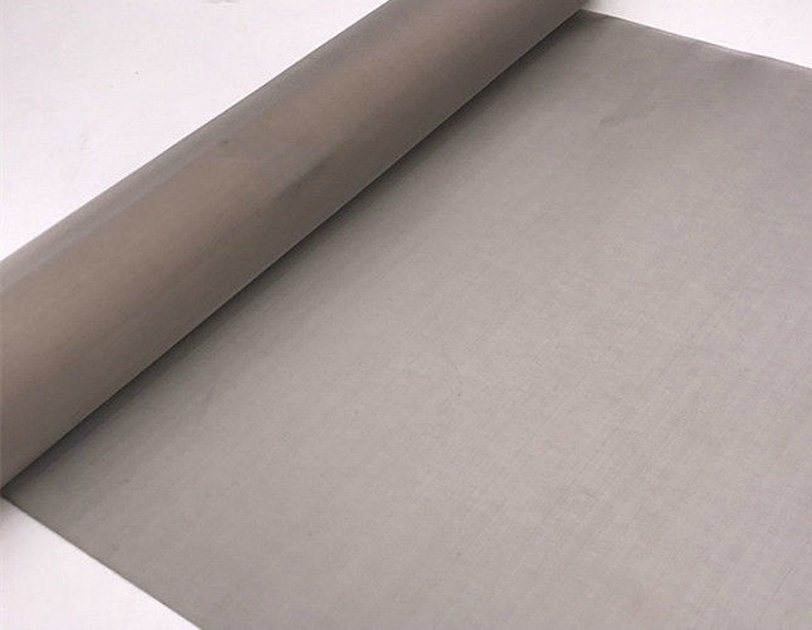

Monel Wire Mesh – Excellent for Marine and Chemical Environment


Monel Wire Mesh With Good Weldability Used As a Corrosion Resistant Material             • Resistant to seawater corrosion, acids and other corrosive media.


             • Corrosion resistance in the alkaline matter and the chemical solvent.


             • Great mechanical properties at subzero temperatures up to 1020° F.


             • Excellent hardness, high tensile and yield strength.



             • Resist stressing corrosion cracking.


            • Long lasting and durable and long life cycle.




Monel alloy has a long history of use as a corrosion resistant material in the wire mesh industry. Monel wire mesh, similar to the Inconel wire mesh, is also a type of woven mesh, which is weaved from nickel-based alloy wire. Monel is an alloy of nickel, copper and other chemical elements. According to different chemical elements, Monel wire mesh has Monel alloy 400 and Monel alloy K500 materials.


Monel 400, composed primarily of Copper and Nickel, is an extremely strong and durable material. This 400 grade Monel is highly resistant to chemical corrosion such as acids, alkali and saltwater and it is preferred by industrial users who seek an alloy with excellent performance for highly caustic environments.


Monel alloy K500 also has outstanding corrosion resistance properties like the Monel alloy 400, but the Monel alloy K500 has been added aluminum, which can let the Monel K500 offer greater tensile strength and hardness than the Monel alloy 400.


Monel wire mesh includes fine woven wire mesh, which has a mesh size larger than 80 meshes, and coarse woven wire mesh with meshes no larger than 80 meshes.


Specification:

Material: Monel 400, Monel 401, Monel 404, Monel R405, Monel K-500

Mesh: 1 mesh to 250 mesh.

Wire diameter: 0.0016" to 0.250".

Roll Width: 0.1m-1.5m

Roll Length: 10-100m

Weaving: Plain weave, Twill weave

Melting point: 1300 degree-1350 degree

Knowledge

Table 1:  Monel 400 Wire Mesh Chemical Composition (%)

Ni ≥

Cu

Fe ≤

Mn ≤

C ≤

Si ≤

S ≤

63

28–34

2.5

2.0

0.3

0.5

0.024


Table 2: Specifications of Monel 400 Wire Mesh

Mesh

Wire   Diameter

Opening   (mm)

mm

inch

2 mesh

1.80

0.071

10.90

3 mesh

1.60

0.063

6.866

4 mesh

1.20

0.047

5.15

5 mesh

0.91

0.036

4.17

6 mesh

0.711

0.028

3.522

8 mesh

0.610

0.024

2.565

10 mesh

0.508

0.020

2.032

12 mesh

0.457

0.018

1.660

14 mesh

0.417

0.016

1.397

16 mesh

0.345

0.014

1.243

18 mesh

0.315

0.012

1.096

20 mesh

0.315

0.0124

0.955

22 mesh

0.315

0.0124

0.840

24 mesh

0.315

0.0124

0.743

26 mesh

0.295

0.0116

0.682

28 mesh

0.295

0.0116

0.612

30 mesh

0.274

0.011

0.573

32 mesh

0.254

0.010

0.540

34 mesh

0.234

0.0092

0.513

36 mesh

0.234

0.0092

0.472

38 mesh

0.213

0.0084

0.455

40 mesh

0.193

0.0076

0.442

42 mesh

0.193

0.0076

0.412

44 mesh

0.173

0.0068

0.404

46 mesh

0.173

0.0068

0.379

48 mesh

0.173

0.0068

0.356

50 mesh

0.173

0.0068

0.335

60 × 50   mesh

0.193

0.0076

-

60 × 50   mesh

0.173

0.0068

-

60 mesh

0.173

0.0068

0.250

70 mesh

0.132

0.0052

0.231

80 mesh

0.122

0.0048

0.196

90 mesh

0.112

0.0044

0.170

100 mesh

0.012

0.004

0.152

120 × 108   mesh

0.091

0.0036

-

120 mesh

0.081

0.0032

0.131

140 mesh

0.061

0.0024

0.120

150 mesh

0.061

0.0024

0.108

160 mesh

0.061

0.0024

0.098

180 mesh

0.051

0.002

0.090

200 mesh

0.051

0.002

0.076

220 mesh

0.051

0.002

0.065

250 mesh

0.041

0.0016

0.061

280 mesh

0.035

0.0014

0.056

300 mesh

0.031

0.0012

0.054

320 mesh

0.031

0.0012

0.046

330 mesh

0.031

0.0012

0.042

350 mesh

0.031

0.0012

0.039

360 mesh

0.025

0.00098

0.0385

400 mesh

0.025

0.00098

0.0385


Table 1: Monel K500 Wire Mesh Chemical Composition (%)

Ni ≥

Cu

Al

Ti

Fe ≤

Mn ≤

S ≤

C ≤

Si ≤

63

27.0–33.0

2.30–3.15

0.35–0.85

2.0

1.5

0.01

0.25

0.5


Table 2: Specifications Of Monel k500 Wire Mesh

Mesh

Wire   Diameter

Opening
  (mm)

mm

inch

2 mesh

1.80

0.071

10.90

3 mesh

1.60

0.063

6.866

4 mesh

1.20

0.047

5.15

5 mesh

0.91

0.036

4.17

6 mesh

0.711

0.028

3.522

8 mesh

0.610

0.024

2.565

10 mesh

0.508

0.020

2.032

12 mesh

0.457

0.018

1.660

14 mesh

0.417

0.016

1.397

16 mesh

0.345

0.014

1.243

18 mesh

0.315

0.012

1.096

20 mesh

0.315

0.0124

0.955

22 mesh

0.315

0.0124

0.840

24 mesh

0.315

0.0124

0.743

26 mesh

0.295

0.0116

0.682

28 mesh

0.295

0.0116

0.612

30 mesh

0.274

0.011

0.573

32 mesh

0.254

0.010

0.540

34 mesh

0.234

0.0092

0.513

36 mesh

0.234

0.0092

0.472

38 mesh

0.213

0.0084

0.455

40 mesh

0.193

0.0076

0.442

42 mesh

0.193

0.0076

0.412

44 mesh

0.173

0.0068

0.404

46 mesh

0.173

0.0068

0.379

48 mesh

0.173

0.0068

0.356

50 mesh

0.173

0.0068

0.335

60 mesh

0.173

0.0068

0.250

70 mesh

0.132

0.0052

0.231

80 mesh

0.122

0.0048

0.196

90 mesh

0.112

0.0044

0.170

100 mesh

0.012

0.004

0.152

120 mesh

0.081

0.0032

0.131

140 mesh

0.061

0.0024

0.120

150 mesh

0.061

0.0024

0.108

160 mesh

0.061

0.0024

0.098

180 mesh

0.051

0.002

0.090

200 mesh

0.051

0.002

0.076


Packaging

Monel wire mesh package is: inside with Kraft paper then buddle plastic and outside wooden case.

We also can make customized packages if you have requested.

2-400 Mesh Square Stainless Steel Wire Mesh For filter

The Transportation available:

1. Ship by sea, load the cargo into the container.

2. Ship by air, the cargo packaged by wooden case.

Application

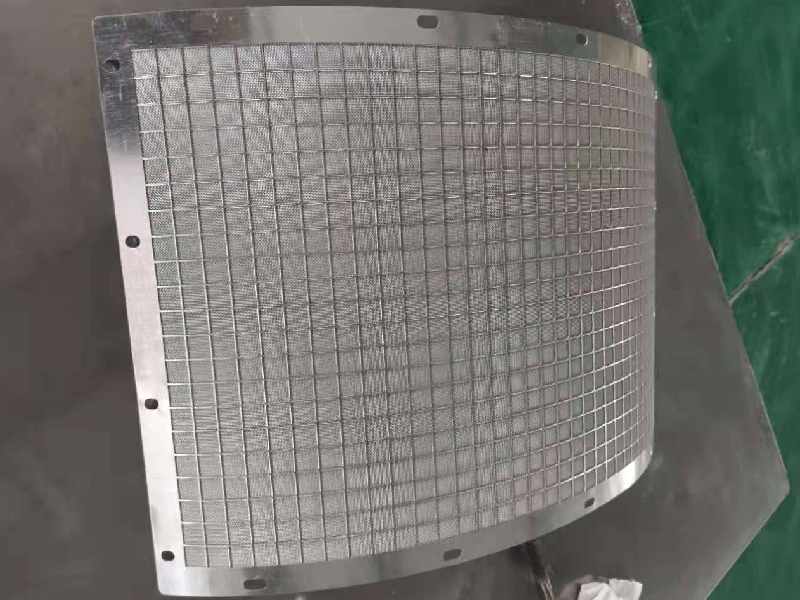

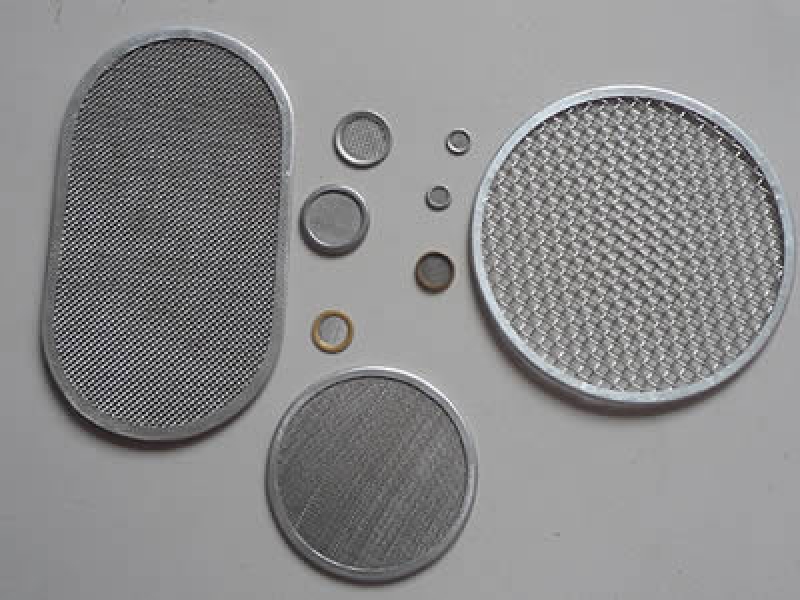

  • Monel wire mesh used for rotary filter screen

  • Monel wire mesh used for wave type wire mesh defogger

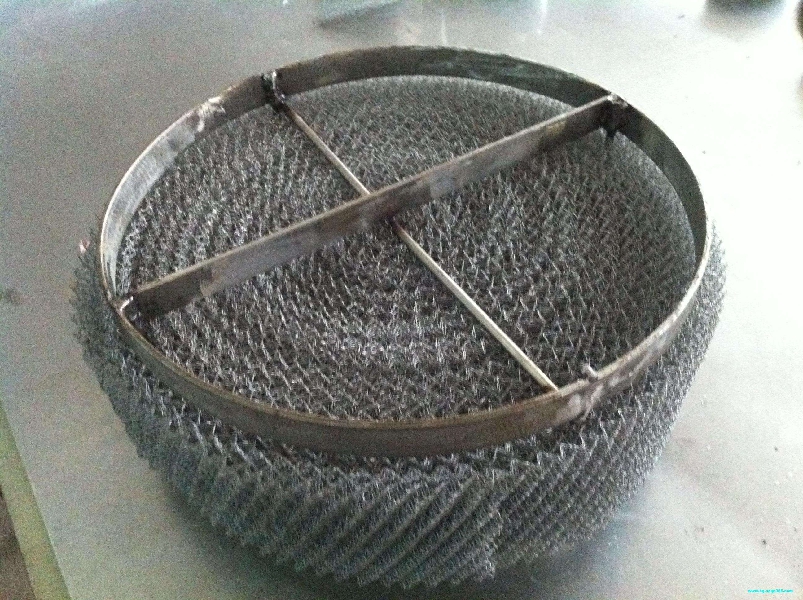

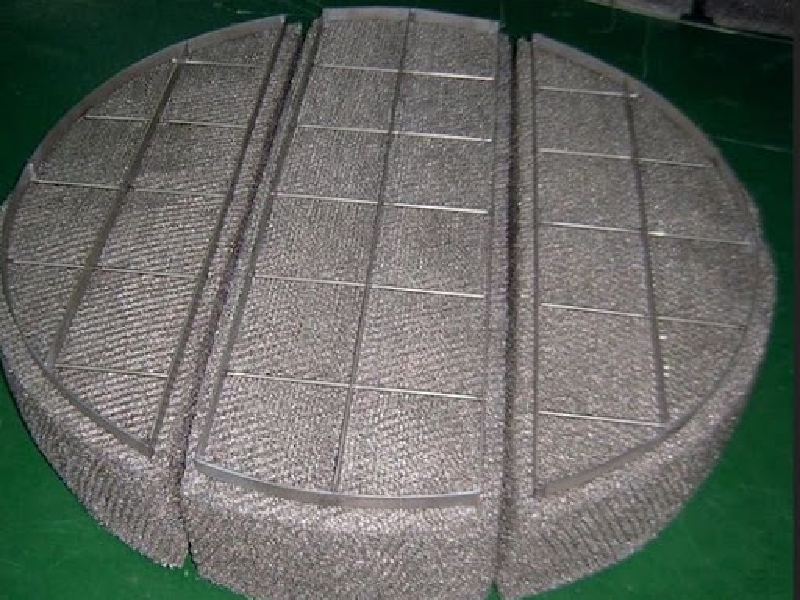

  • Monel wire mesh used for wave type wire mesh demister

  • Monel wire mesh used for filter or heating element, pressure vessel
