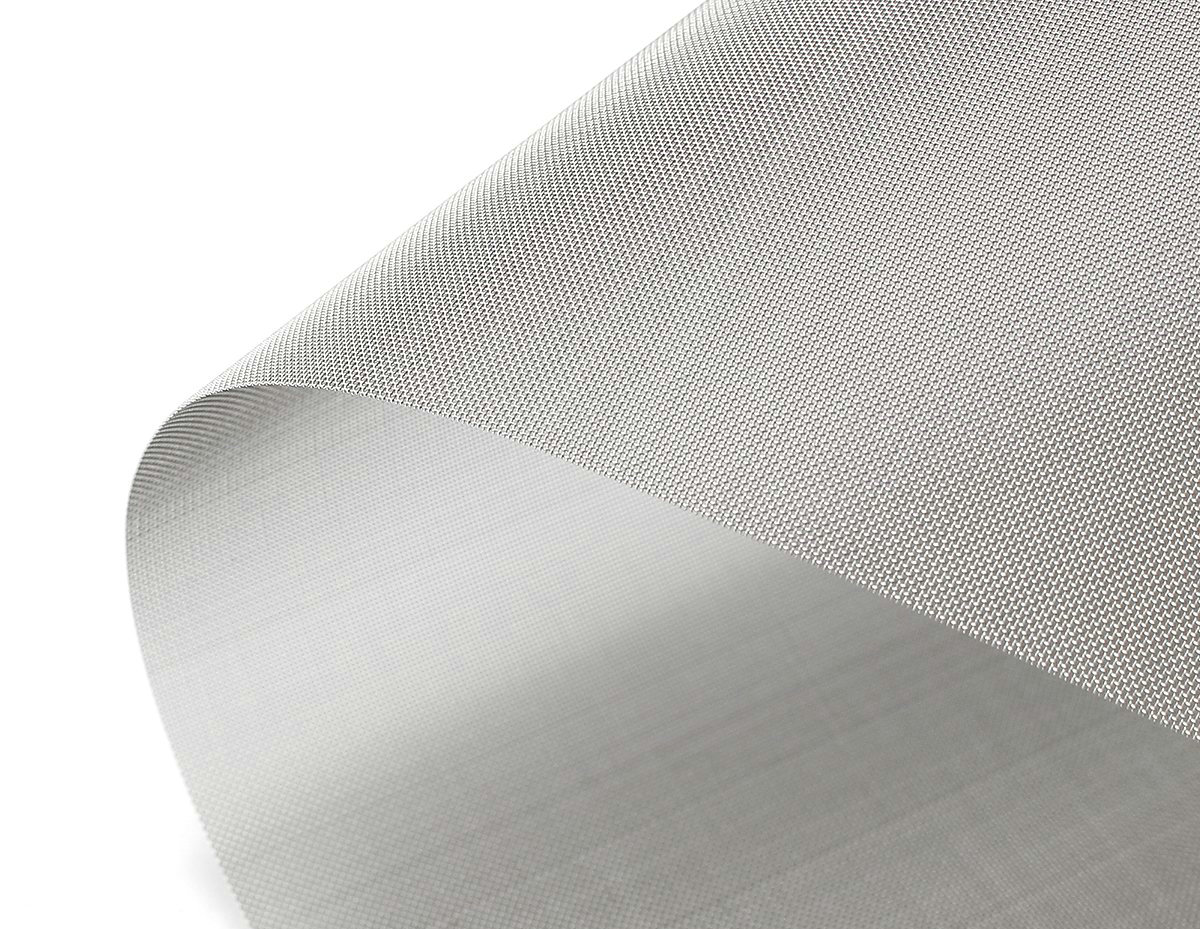

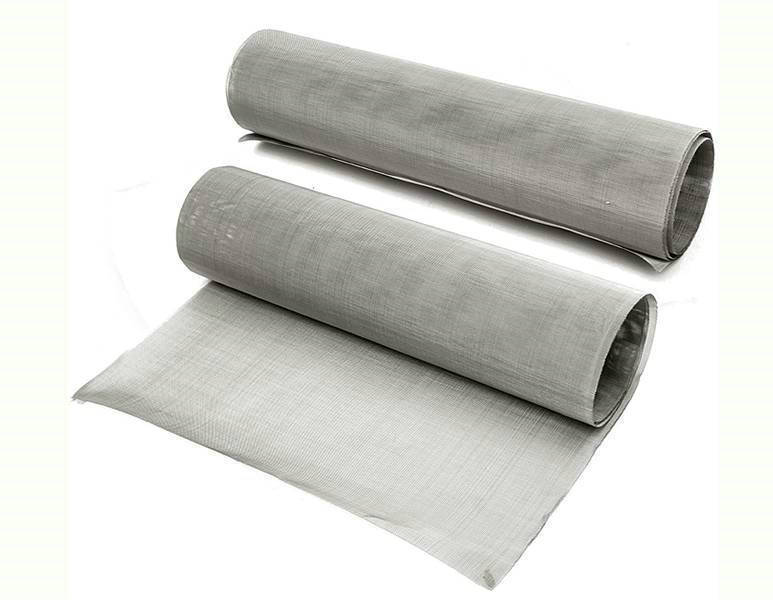

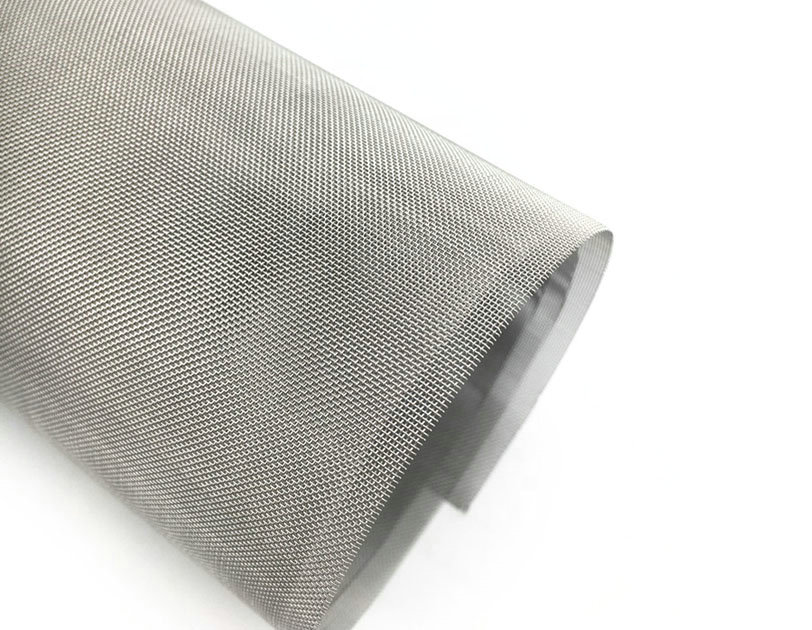

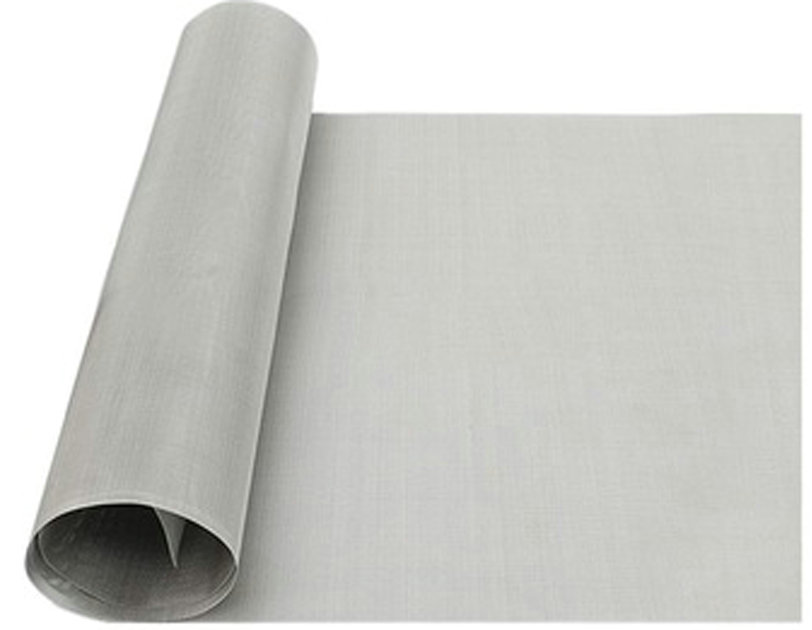

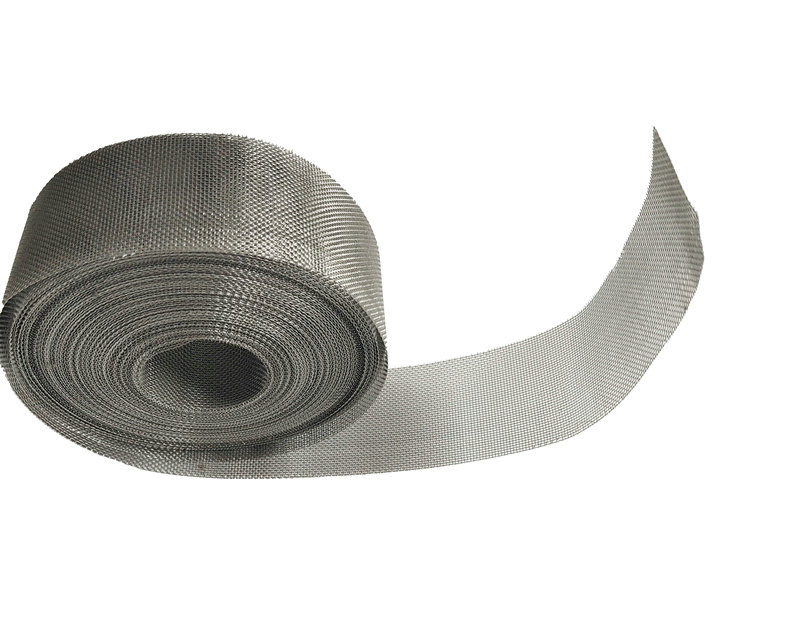

High Purity Not Less Than 99% Nickel Wire Mesh

Pure Nickel wire mesh is manufactured from nickel wire with high purity not less than 99%. The most popular nickel wire mesh material is N4 and N6. The main nickel content of N6 is more than 99.5%. N2 has the highest nickel content of more than 99.98%. N8 has the lowest nickel content of 99% min.

Share:
Detail Description

Nickel Wire Mesh – Ideal for Corrosive and High Temp Applications


High Purity Not Less Than 99% Nickel Wire Mesh             • Chemical resistance, acid and alkali resistance.


             • Corrosion resistance.


             • High electrical conductivity.


             • Thermal conductivity and ductility.



             • Heat resistance.


            • Wear resistance.




Nickel is a silver color metal that has been recognized as a highly versatile transition metal. According to the purity, nickel has different material types, such as the N2, N4, N6 and N8. Because it has excellent corrosion resistance in both air and water, and tends to be used as a coating and an alloying element in a number of important alloys.


Pure Nickel wire mesh is manufactured from nickel wire with high purity not less than 99%. The most popular nickel wire mesh material is N4 and N6. The main nickel content of N6 is more than 99.5%. N2 has the highest nickel content of more than 99.98%. N8 has the lowest nickel content of 99% min.


Nickel wire mesh features excellent corrosion, acid and alkali resistance, high electrical conductivity, thermal conductivity and ductility, heat resistance, wear resistance. Nickel wire mesh or low-alloy nickel wire mesh is useful in chemical processing because of its resistance to various chemicals including acid, alkali. It is also useful in electronics due to its high electrical conductivity. The Nickel wire can be also used in the heat exchange due to its thermal conductivity and ductility.


Specification:

Material: nickel 200, nickel 205, nickel 270, N2, N4, N6, N8.

Wire diameter: 0.03mm~10mm

Opening size: 0.03mm~80mm

Width: 150mm~ 3000mm

Mesh: 0.5mesh ~400mesh

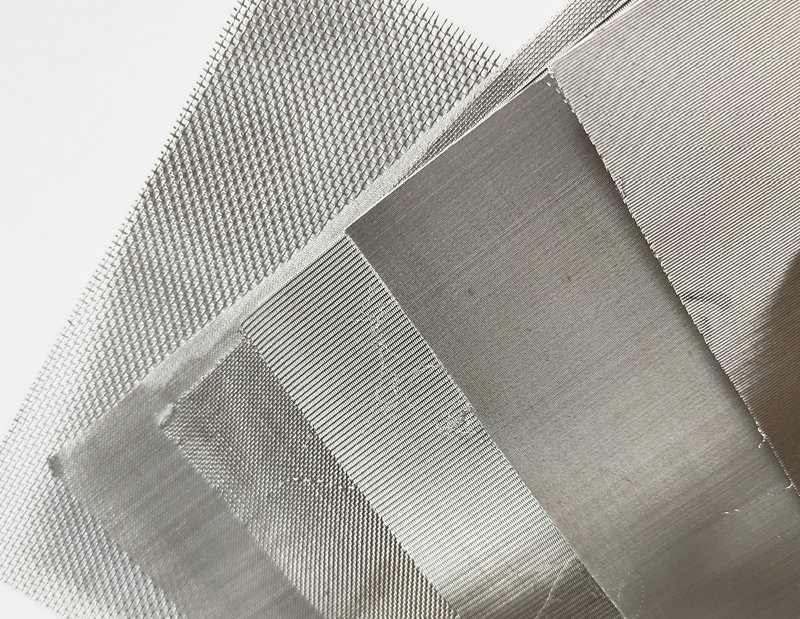

Weaving methods: plain weave, twill weave, dutch weave.


Knowledge


Table 1: Chemical Composition of   Nickel

Type

C %

Cu %

Fe %

Mn %

Ni %

S %

Si %

Co %

Cr %

Mg %

Ti %

Nickel 200

0.015

0.25

0.4

0.35

99

0.01

0.35

-

-

-

-

Nickel 205

0.02

0.001

0.005

0.001

99.97

0.001

0.001

0.001

0.001

0.001

0.001

Nickel 270

0.15

0.15

0.2

0.35

99

0.008

0.15

-

0.01-0.05

0.01-0.08

-


Type

Ni + Co

Cu

Si

Mn

C

Mg

S

Fe

Impurity Sum

Min.

Max.

N2

99.98

0.001

0.003

0.002

0.005

0.003

0.001

0.007

0.02

N4

99.9

0.015

0.03

0.002

0.01

0.01

0.001

0.04

0.1

N6

99.5

0.03

0.1

0.05

0.1

0.1

0.005

0.1

0.5

N8

99

0.15

0.15

0.2

0.2

0.1

0.015

0.3

1


Table 2:   Specifications of Nickel 200 Wire Mesh

Mesh

Wire   Diameter

Opening
  (mm)

mm

inch

2 mesh

1.80

0.071

10.90

3 mesh

1.60

0.063

6.866

4 mesh

1.20

0.047

5.15

5 mesh

0.91

0.036

4.17

6 mesh

0.711

0.028

3.522

8 mesh

0.610

0.024

2.565

10 mesh

0.508

0.020

2.032

12 mesh

0.457

0.018

1.660

14 mesh

0.417

0.016

1.397

16 mesh

0.345

0.014

1.243

18 mesh

0.315

0.012

1.096

20 mesh

0.315

0.0124

0.955

22 mesh

0.315

0.0124

0.840

24 mesh

0.315

0.0124

0.743

26 mesh

0.295

0.0116

0.682

28 mesh

0.295

0.0116

0.612

30 mesh

0.274

0.011

0.573

32 mesh

0.254

0.010

0.540

34 mesh

0.234

0.0092

0.513

36 mesh

0.234

0.0092

0.472

38 mesh

0.213

0.0084

0.455

40 mesh

0.193

0.0076

0.442

42 mesh

0.193

0.0076

0.412

44 mesh

0.173

0.0068

0.404

46 mesh

0.173

0.0068

0.379

48 mesh

0.173

0.0068

0.356

50 mesh

0.173

0.0068

0.335

60 mesh

0.173

0.0068

0.250

70 mesh

0.132

0.0052

0.231

80 mesh

0.122

0.0048

0.196

90 mesh

0.112

0.0044

0.170

100 mesh

0.012

0.004

0.152

120 mesh

0.081

0.0032

0.131

140 mesh

0.061

0.0024

0.120

150 mesh

0.061

0.0024

0.108

160 mesh

0.061

0.0024

0.098

180 mesh

0.051

0.002

0.090

200 mesh

0.051

0.002

0.076

220 mesh

0.051

0.002

0.065

250 mesh

0.041

0.0016

0.061

280 mesh

0.035

0.0014

0.056

300 mesh

0.031

0.0012

0.054

320 mesh

0.031

0.0012

0.046

330 mesh

0.031

0.0012

0.042

350 mesh

0.031

0.0012

0.039

360 mesh

0.025

0.00098

0.0385

400 mesh

0.025

0.00098

0.0385


Packaging

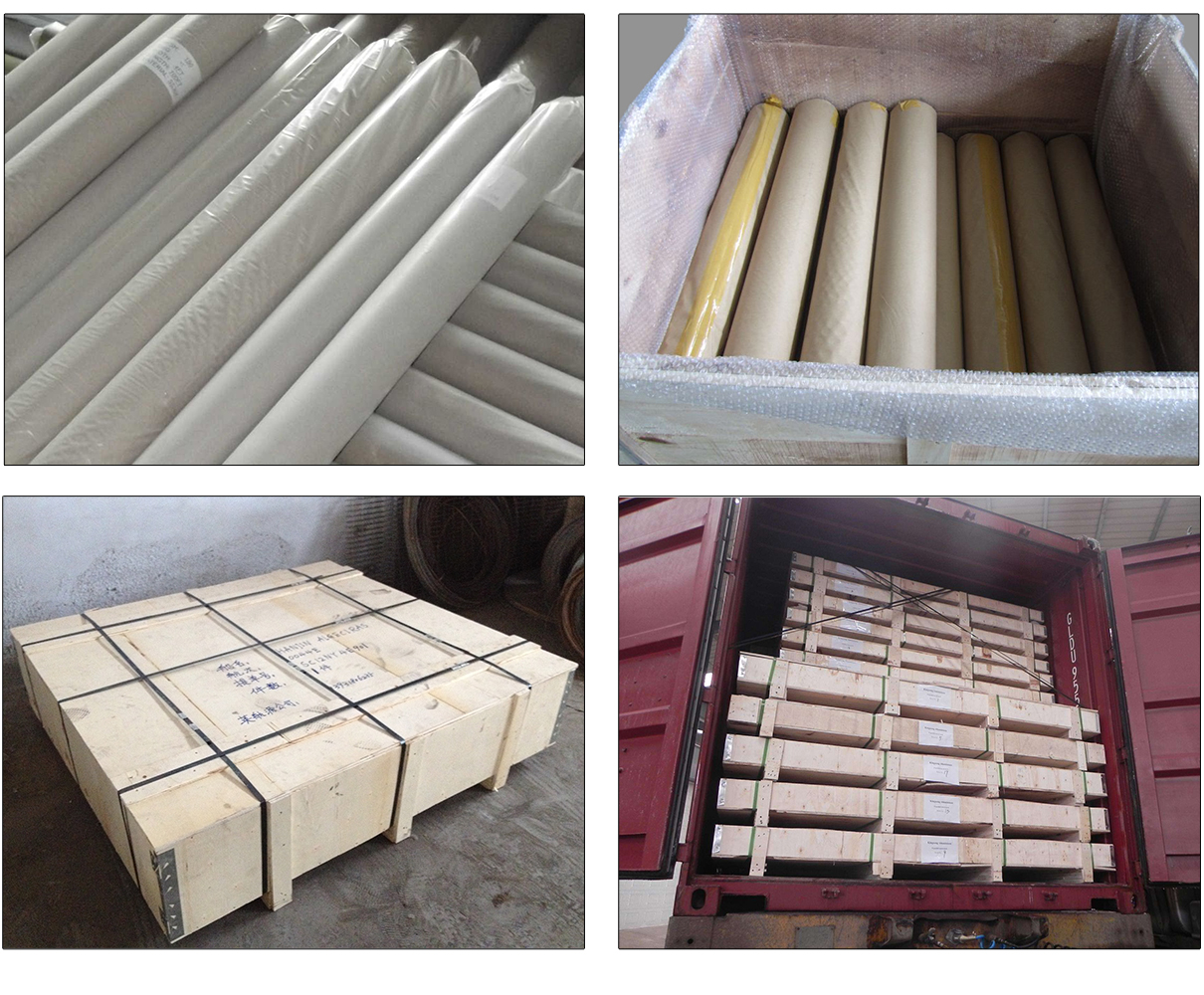

Nickel wire mesh package is: inside with Kraft paper then buddle plastic and outside wooden case.

We also can make customized packages if you have requested.

2-400 Mesh Square Stainless Steel Wire Mesh For filter

The Transportation available:

1. Ship by sea, load the cargo into the container.

2. Ship by air, the cargo packaged by wooden case.

Application
  • Nickel wire mesh used for deep processing filter

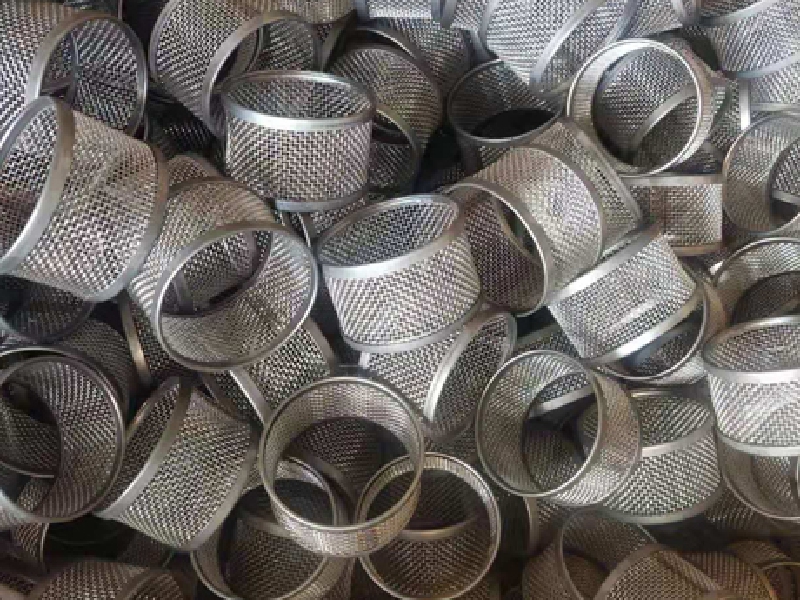

  • Nickel wire mesh used for tube

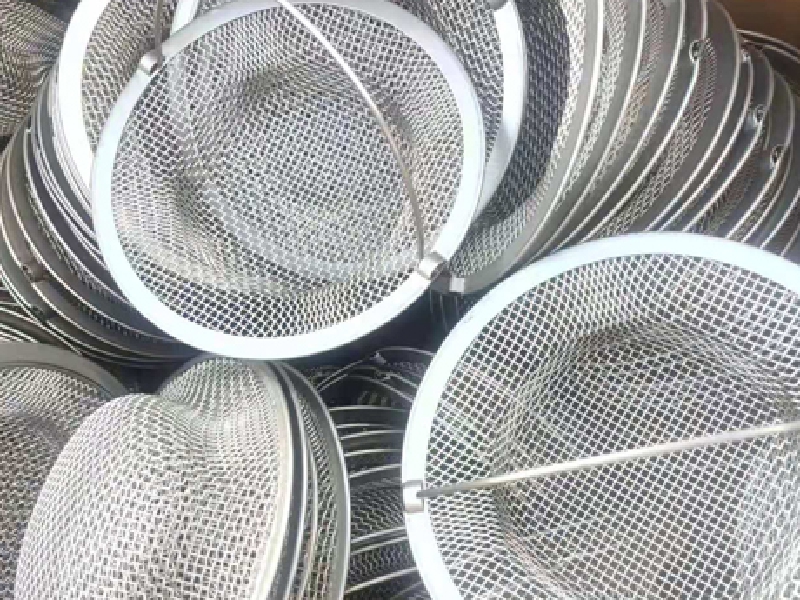

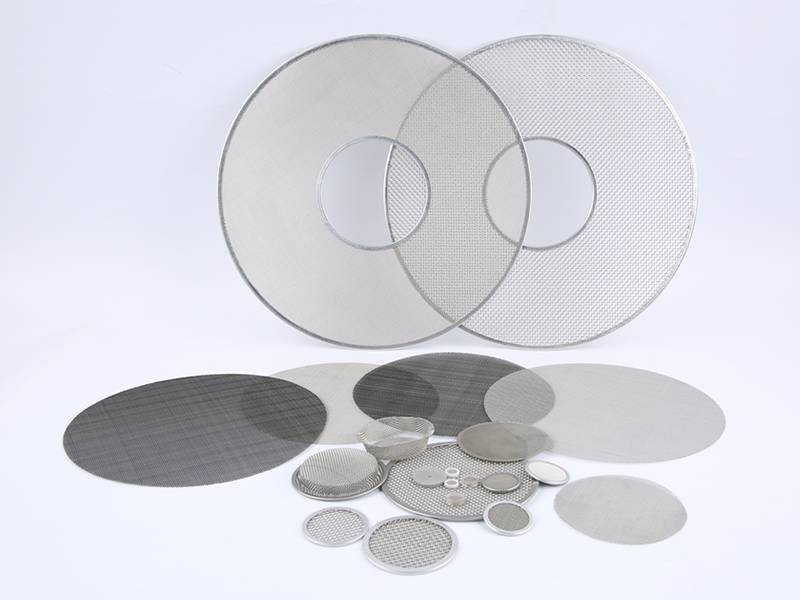

  • Nickel wire mesh used for filter disc

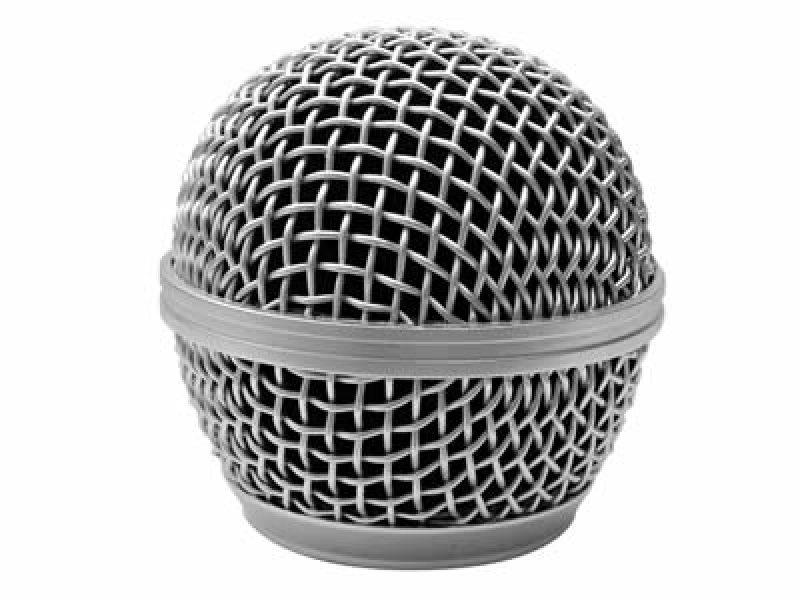

  • Nickel wire mesh used for the microphone or speaker cover
