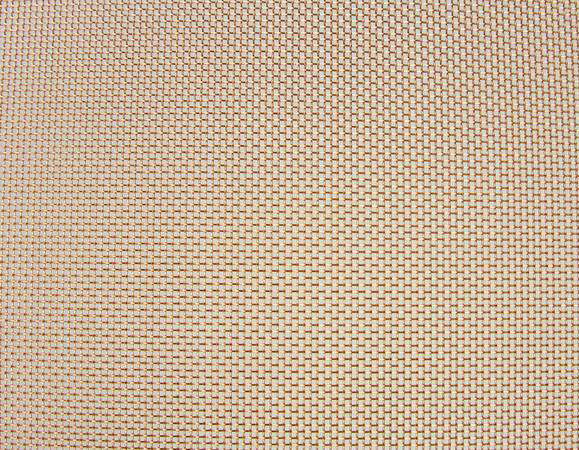

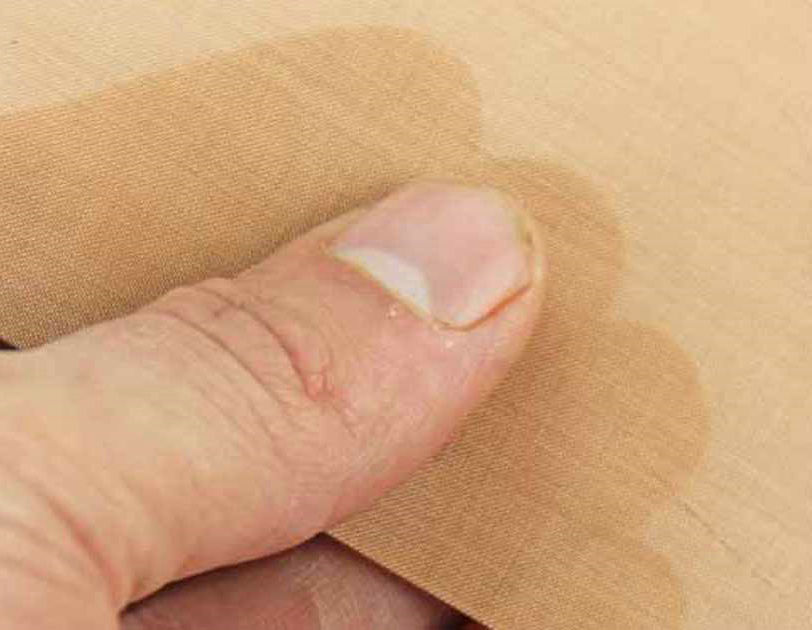

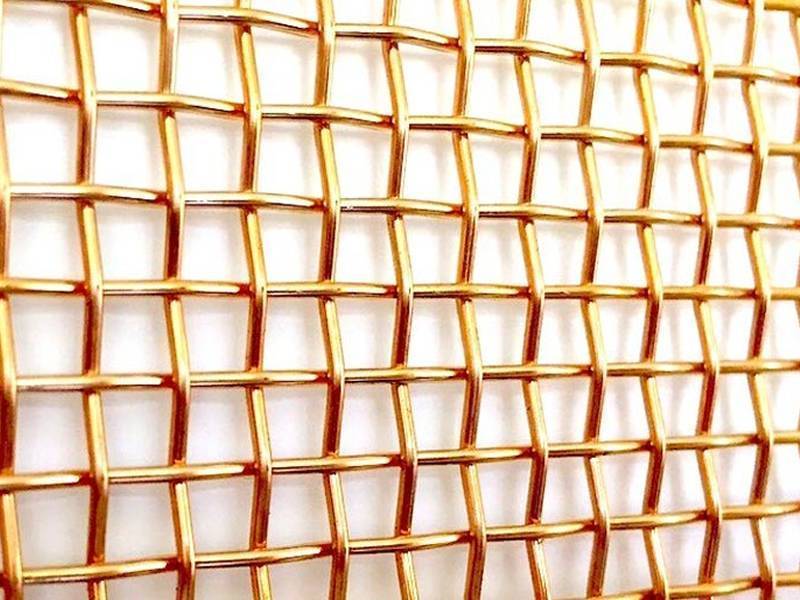

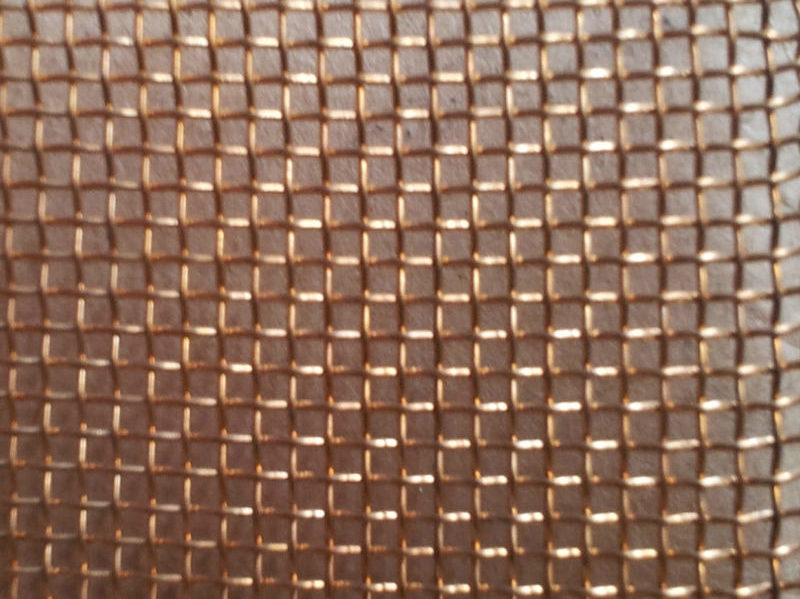

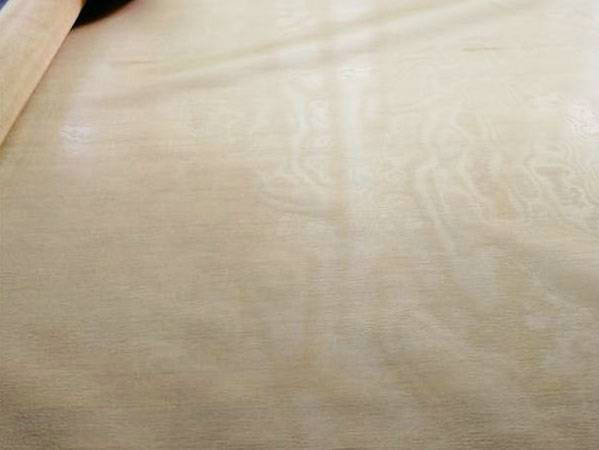

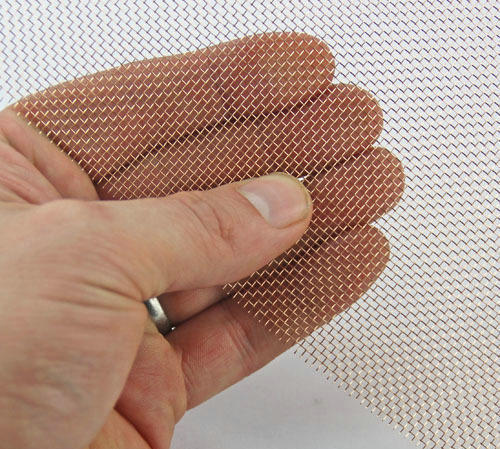

Bronze Wire Mesh With Beautiful Surface For Decorative And Architectural

Bronze wire mesh exhibits many of the same characteristics as copper. With a dull-gold color, it's increasingly popular for decorative and architectural applications. Because of its resistance to corrosion, bronze wire mesh has a wide range of applications from commercial and residential insect screens to marine and military applications.

Share:
Detail Description

Bronze Wire Mesh Serves for Marine, Military, Architectural Areas


Bronze Wire Mesh With Beautiful Surface For Decorative And Architectural


             • Good germicidal properties and high air permeability.


             • Good ductility, elasticity, durability.


             • Wear resistance and acoustic properties.


             • Non-magnetic, electrical and low thermal conductivity.



             • Bronze holds up well in seaside climates.



Bronze is a metal alloy that copper, tin, phosphorus as its main components, which offers much better abrasion resistance, better corrosion resistance and lower electrical conductivity as compared with copper wire.


Bronze wire mesh exhibits many of the same characteristics as copper. With a dull-gold color, it's increasingly popular for decorative and architectural applications. Because of its resistance to corrosion, bronze wire mesh has a wide range of applications from commercial and residential insect screens to marine and military applications. Because of its non-magnetic, bronze wire mesh can be used for electromagnetic interference shielding. Possessing beautiful colors,  bronze wire meshes are made into cabinet screens, ceiling or interior walls. Of course, it can filter coffee particles, powders, porcelain clay, etc.


Specification:

Material: phosphor bronze wire/tin bronze wire(2%-8% tin, 0.1%-0.4% phosphorus, the rest copper.)

Width: 0.6–3m.

Mesh: 1 mesh-400 mesh

Roll length: 10–50 m or customized.

Weaving methods: plain weave, twill weave.


Knowledge

Bronze Wire Mesh

Mesh

Wire   Diameter(mm)

Opening(mm)

SWG

mm

inch

6

22

0.711

0.028

3.522

8

23

0.610

0.024

2.565

10

25

0.508

0.020

2.032

12

26

0.457

0.018

1.660

14

27

0.417

0.016

1.397

16

29

0.345

0.014

1.243

18

30

0.315

0.012

1.096

20

30

0.315

0.0124

0.955

22

30

0.315

0.0124

0.840

24

30

0.315

0.0124

0.743

26

31

0.295

0.0116

0.682

28

31

0.295

0.0116

0.612

30

32

0.247

0.011

0.573

32

33

0.254

0.010

0.540

34

34

0.234

0.0092

0.513

36

34

0.234

0.0092

0.472

38

35

0.213

0.0084

0.455

40

36

0.193

0.0076

0.442

42

36

0.193

0.0076

0.412

44

37

0.173

0.0068

0.404

46

37

0.173

0.0068

0.379

48

37

0.173

0.0068

0.356

50

37

0.173

0.0068

0.335

60X50

36

0.193

0.0076

0.268

60X50

37

0.172

0.0068

0.289

60

37

0.172

0.0068

0.250

70

39

0.132

0.0052

0.231

80

40

0.122

0.0048

0.196

90

41

0.112

0.0044

0.170

100

42

0.012

0.004

0.152

120X108

43

0.091

0.0036

0.131

120

44

0.081

0.3200

0.131

140

46

0.061

0.0024

0.120

150

46

0.061

0.0024

0.108

160

46

0.061

0.0024

0.098

180

47

0.051

0.002

0.090

200

47

0.051

0.002

0.076

250

48

0.041

0.0016

0.061

300

49

0.031

0.0012

0.054

325

49

0.031

0.0012

0.047

350

49

0.031

0.0012

0.042

400

49

0.031

0.0012

0.033


Packaging

Bronze wire mesh package is: inside with Kraft paper then buddle plastic and outside wooden case.

We also can make customized packages if you have requested.

2-400 Mesh Square Stainless Steel Wire Mesh For filter

The Transportation available:

1. Ship by sea, load the cargo into the container.

2. Ship by air, the cargo packaged by wooden case.

Application

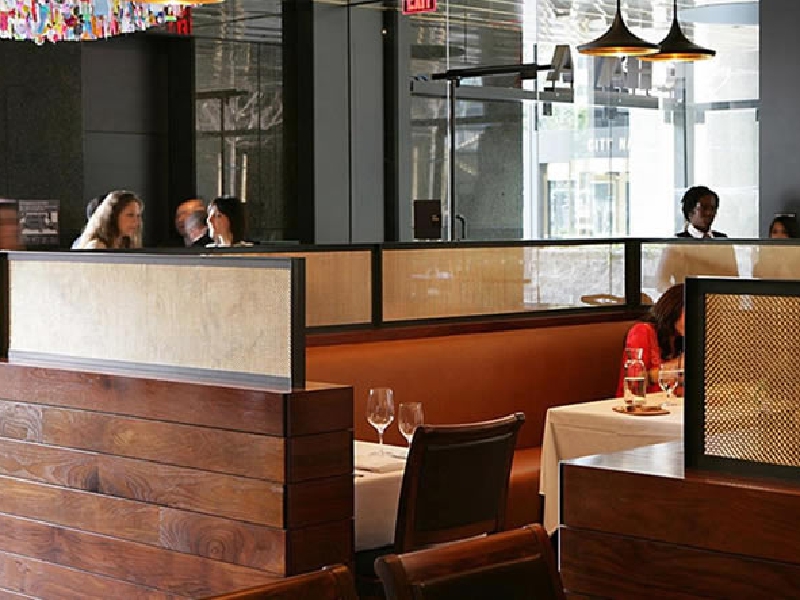

  • Bronze wire mesh used for divider

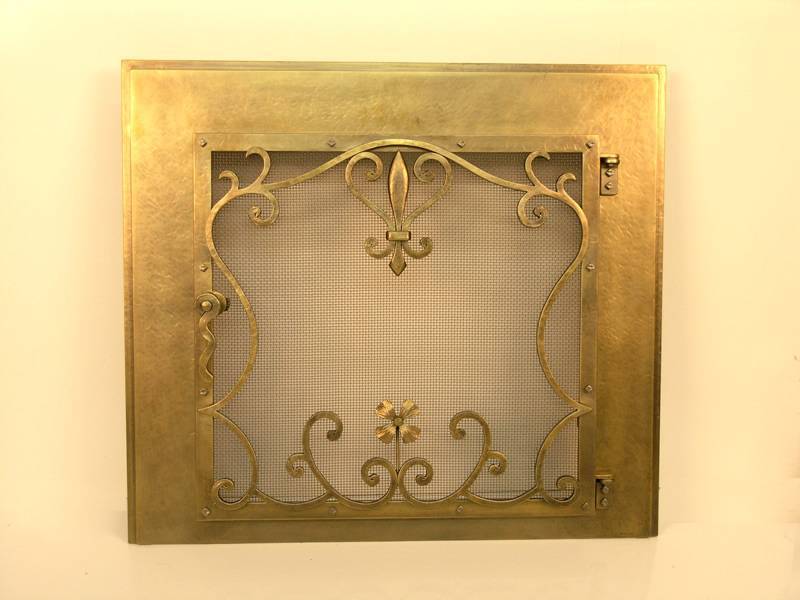

  • Bronze wire mesh used for fireplace screen

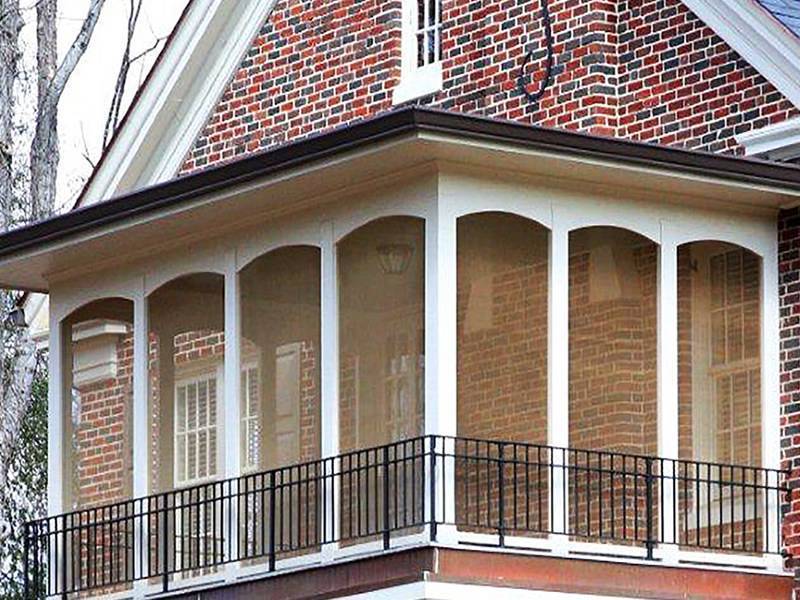

  • Bronze wire mesh used for insect screen of window

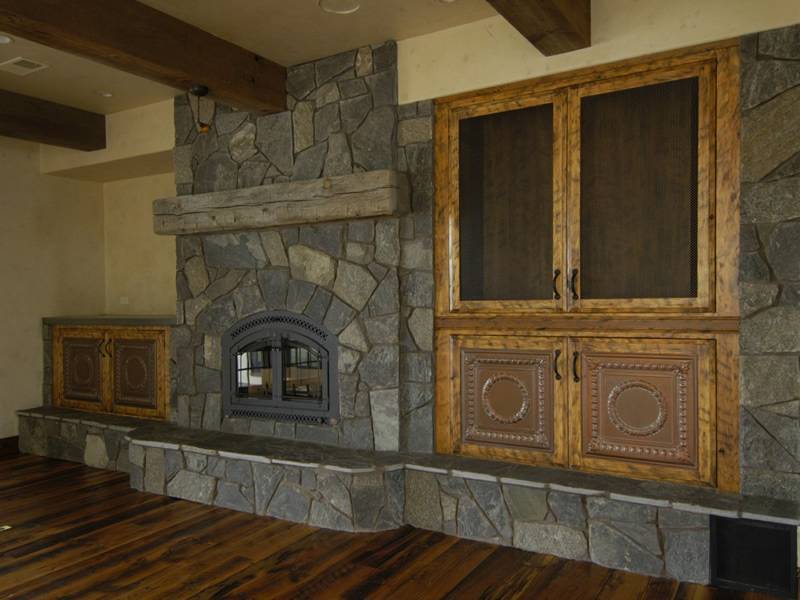

  • Bronze wire mesh used for cabinetry
