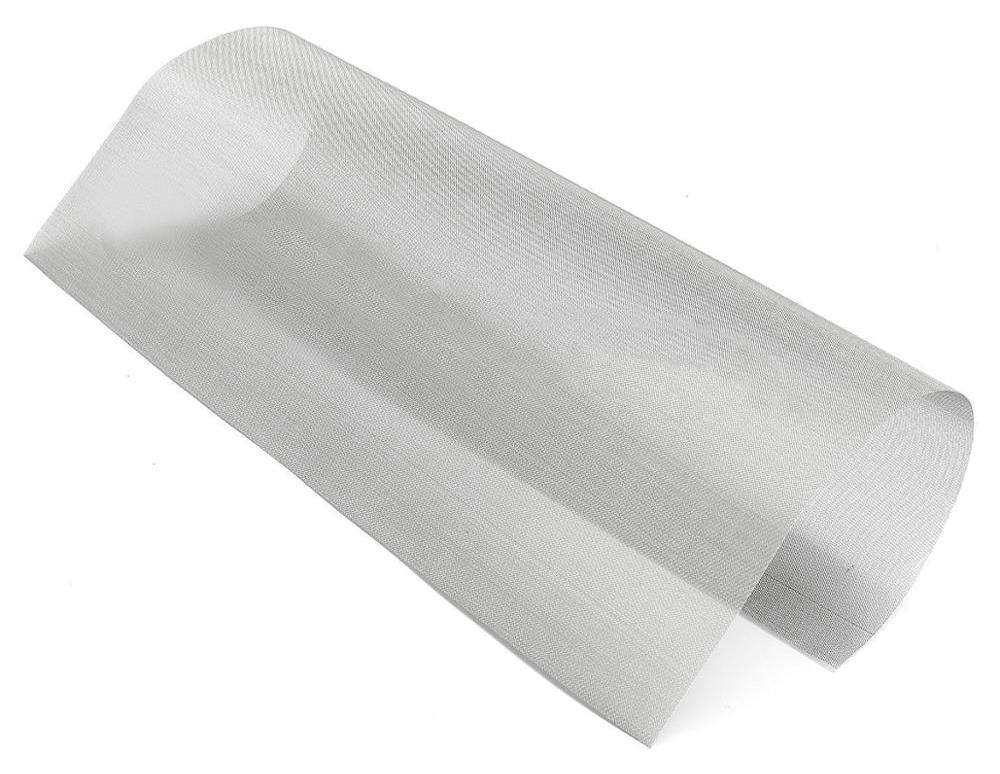

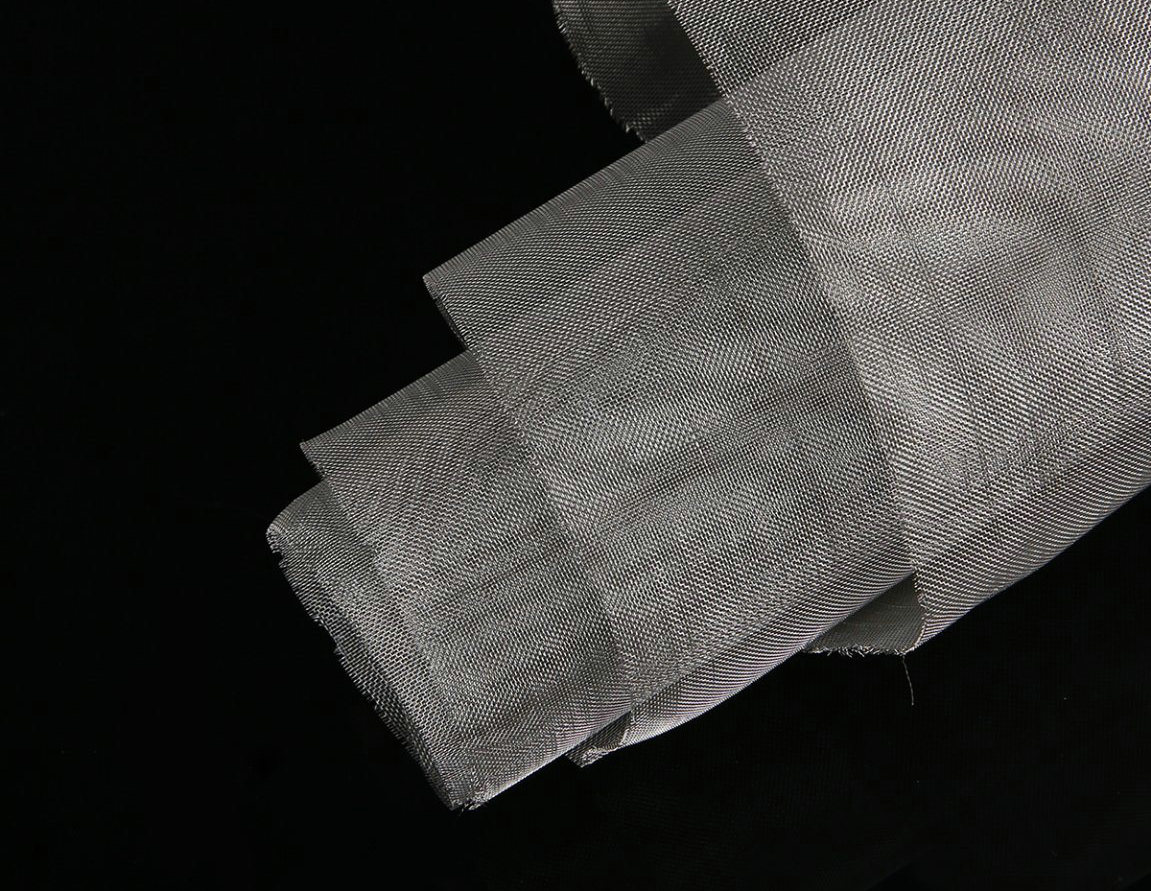

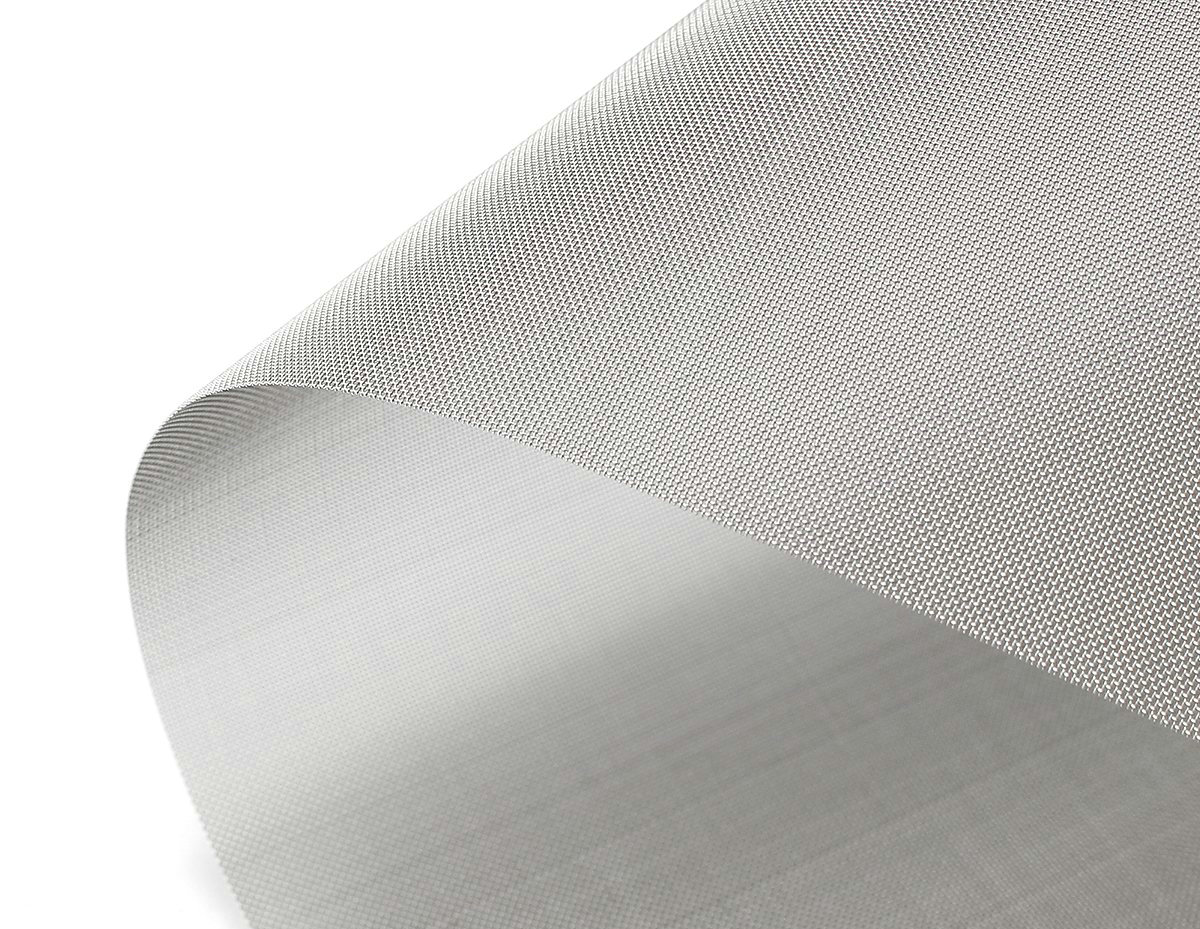

99.99 Pure Silver Woven Wire Mesh

Silver woven wire mesh is a type of non-ferrous metal mesh. It is manufactured from pure silver wire and it is woven through plain weave and twill weave into square meshes. MOQ: 10M2 Application: electrode mesh or battery collector mesh in the electronic, electric power industry

Share:
Detail Description

99.99% Pure Silver Woven Wire Mesh

Silver woven wire mesh is a type of non-ferrous metal mesh.  It is manufactured from pure silver wire and it is woven through plain weave and twill weave into square meshes. Sliver woven wire mesh has unique electric and thermal conductivity, is better than the nickel woven wire mesh and any other metal weaved wire mesh and also is good chemical stability and ductility. Silver woven wire mesh has a wide application in the electronic industry, electric power industry, aerospace, and other industries.

In addition to being used in these industries, silver woven wire mesh is also ubiquitous in life. Such as artwork making and household & office adornment design, and also Jewelry design.


Feature:

99.99% purity Ag material.

Excellent electric conductivity.

High thermal conductivity.

Good heat transfer performance.

Good chemical stability & ductility.

High recovery value.




Knowledge

Specification of silver woven wire mesh.

Material: silver wire.

Purity: 99.6% - 99.9%.

Technique: woven.

Weaving type: plain weave and twill weave.

Wire diameter: 0.15mm - 0.35mm.

Mesh count: 20 mesh - 60 mesh.

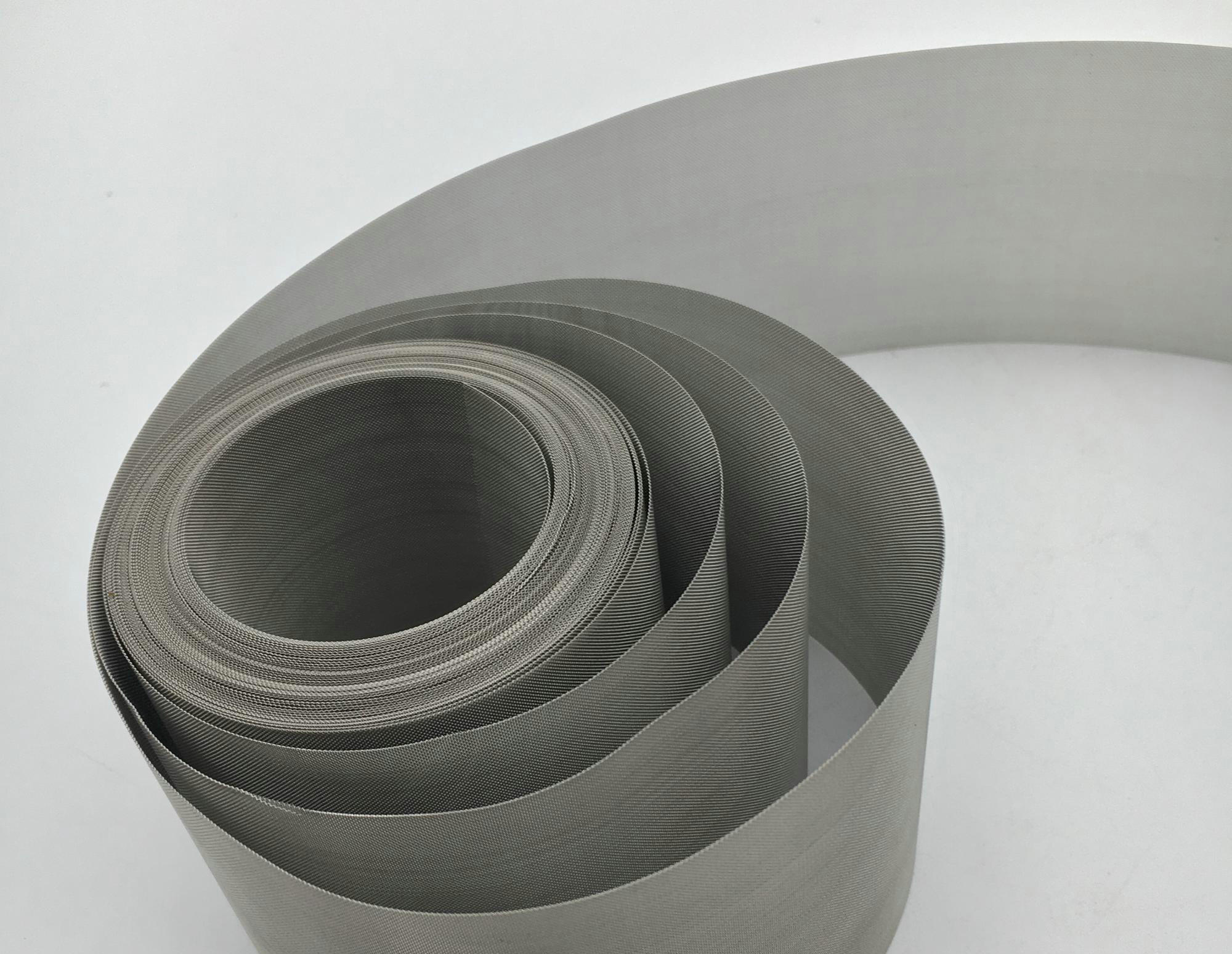

Roll length: 30m or 50m.


Specification sheet

mesh
Wire diameter
Opening
inchmminchmm
200.0140.350.0360.91

20

0.0090.230.0411.04
240.0140.350.0280.71
280.010.250.0260.66
30
0.0110.280.0220.55
300.00650.160.0270.68
350.0120.30.0170.43
350.010.250.0190.48
400.010.250.0150.38
400.00950.240.0160.4
500.0090.230.0110.28
500.0080.200.0120.3
600.00750.190.0090.22
600.00590.150.0110.28


Packaging

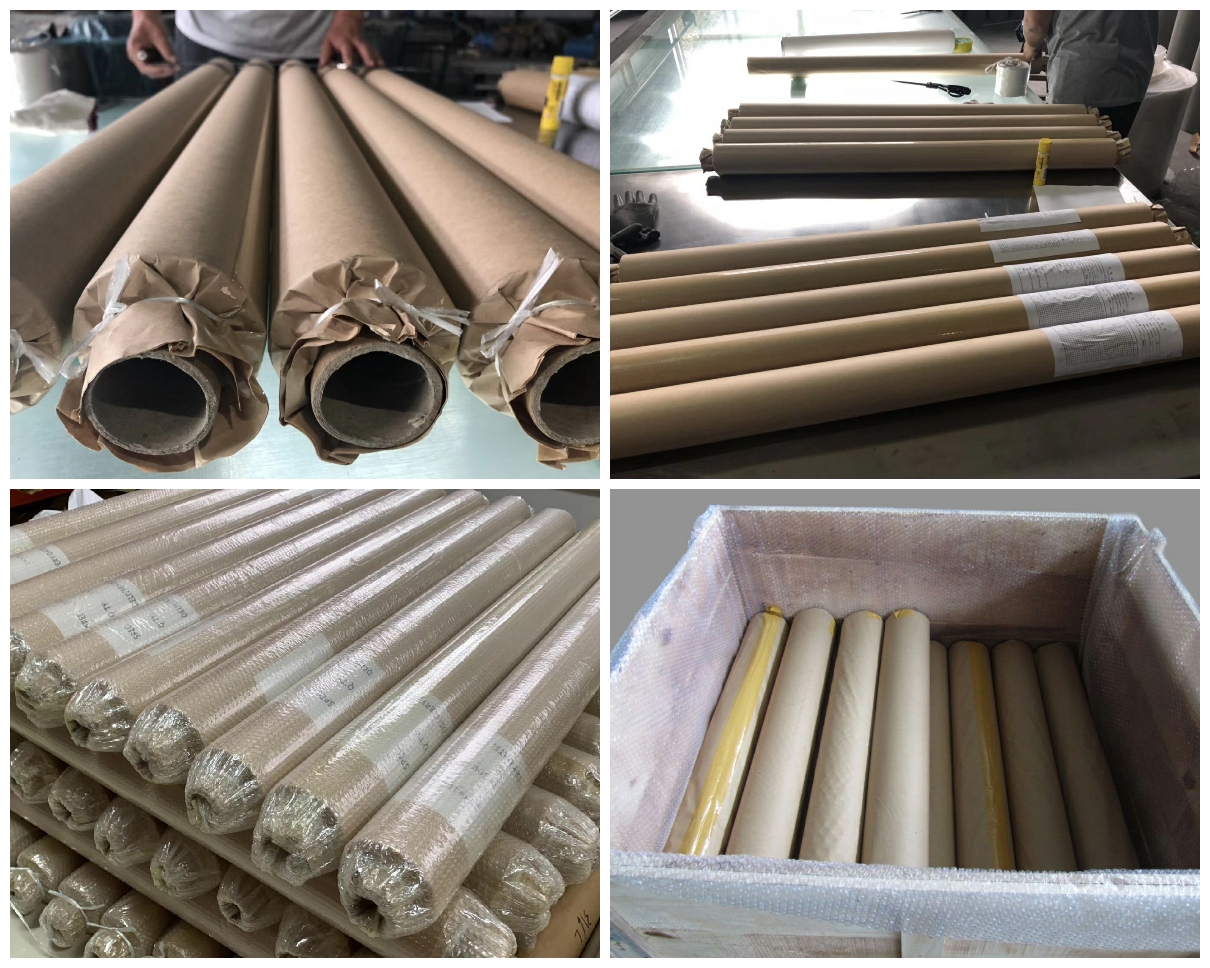

Packed in the roll, wrapped with moisture-proof paper, put into wooden cases, or according to your requirements.

99.99 Pure Silver Woven Wire Mesh

Application

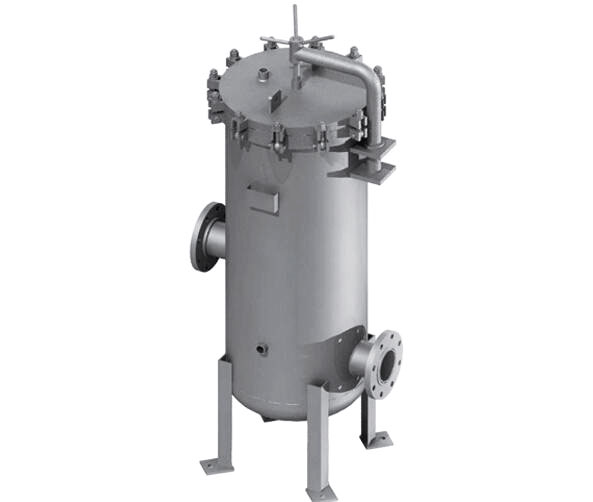

  • Pure silver filter

  • Pure silver filter

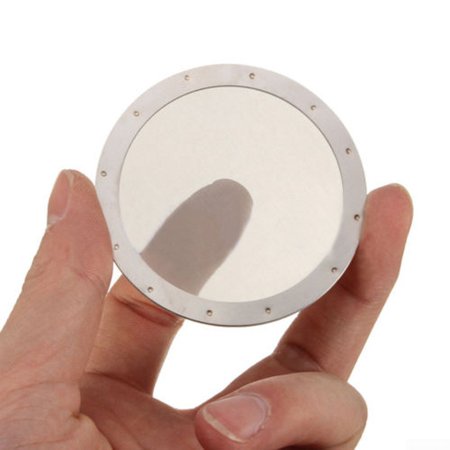

  • Pure silver filter disc

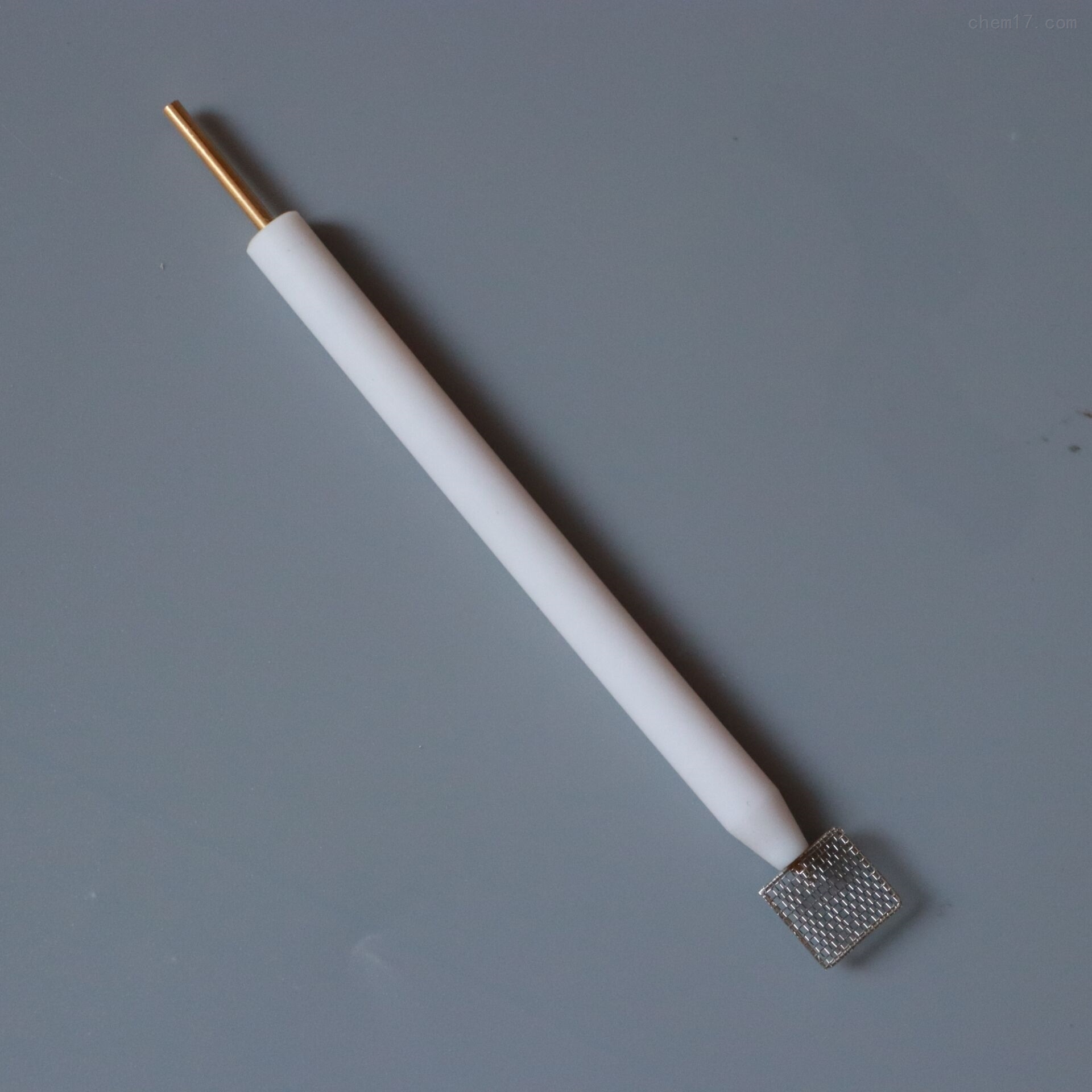

  • Silver electrode mesh
